Student-centered Development of an Online Software Tool to Provide

Learning Support Feedback: A Design-study Approach

Gilbert Drzyzga

and Thorleif Harder

Institute of Interactive Systems, Technische Hochschule L

ubeck, Germany

Keywords:

Student-centered Design, Design Process, Gestalt Laws, Interaction Principles, Usability, User Experience.

Abstract:

Students in online degree programs have a higher risk of dropping out (Diaz, 2002; Beard and Harper, 2002;

Baker et al., 2015). The use of learning support tools such as learner dashboards (LD) can promote self-

regulated learning, which can have a positive impact on student learning (Jivet et al., 2018; Konert et al.,

2016). This paper presents a three-stage design study and shows how the layout of the proposed LD was

implemented from the initial digital design to a low-ﬁdelity prototype. First, the developed wireframes were

checked for consistency with respect to the Gestalt laws (Wertheimer, 1922). From the resulting wirefame

design, a clickable low-ﬁdelity prototype was developed. In the second step, this interactive prototype was

reviewed by students (n=24) respect to the seven interaction principles (DIN EN ISO 9241-110, 2020). In

the third step, the revised prototype was subjected to an eye-tracking procedure using the Thinking Aloud

technique (n=10). The results so far show that the LD should be presented at a reduced information level during

initial access, but that this level can be supplemented by additional elements if necessary. The navigation

hierarchy should be kept ﬂat and the information should be easy to understand.

1 INTRODUCTION

In order to be able to offer students of digital study

programs support that promotes learning during their

studies and to reduce dropout in this form of study

overall, a research project of a university network

for digital study programs with over 4,000 enrolled

students is investigating how students could be sup-

ported in their learning process (Diaz, 2002; Beard

and Harper, 2002; Baker et al., 2015). To this end,

a learner dashboard (LD) is being developed to stim-

ulate student self-regulation. The LD is to be inte-

grated as a plug-in into the university network’s Moo-

dle learning management system (LMS) and, once

completed, will be made available to the community

as open source. Within the framework of a user-

centered design (UCD) approach, it is to be inves-

tigated which indicators, representation, information

and intervention possibilities could be useful in this

process and in which way. To this end, a design-study

was conducted that employed various usability meth-

ods in three steps to obtain qualitative feedback for

the implementation of the user interface from experts

https://orcid.org/0000-0003-4983-9862

https://orcid.org/0000-0002-9099-2351

(see Figure 1).

The design-study is based on ﬁndings from an ini-

tial literature review with the focus on self-regulated

learning in digital learning environments and expert

interviews (n=9). Based on these ﬁndings, a ﬁrst wire-

frame was implemented in the winter semester 2021 /

2022 and subsequently evaluated (Figure 1, Level 1).

During the summer semester of 2022, a low-ﬁdelity

prototype was implemented and is to be used in the

Moodle LMS of the university network in the near

future as the ﬁrst development level of an LD (Fig-

ure 1, Level 2 and 3). This ﬁrst technical deployment

level provides descriptive evaluations for students. In

this paper, we present the research questions based on

qualitatively conducted studies presented in the cur-

rent version of the LD as a work in progress. This

approach has proven successful, as it has enabled suc-

cessive optimization of the design of the user interface

with the involvement of experts.

Research Questions (RQ):

• RQ1: How must the user interface elements of

an online support tool be designed to effectively

support learning?

• RQ2: How must the user interface and individual

244

Drzyzga, G. and Harder, T.

Student-centered Development of an Online Software Tool to Provide Learning Support Feedback: A Design-study Approach.

DOI: 10.5220/0011589100003323

In Proceedings of the 6th International Conference on Computer-Human Interaction Research and Applications (CHIRA 2022), pages 244-248

ISBN: 978-989-758-609-5; ISSN: 2184-3244

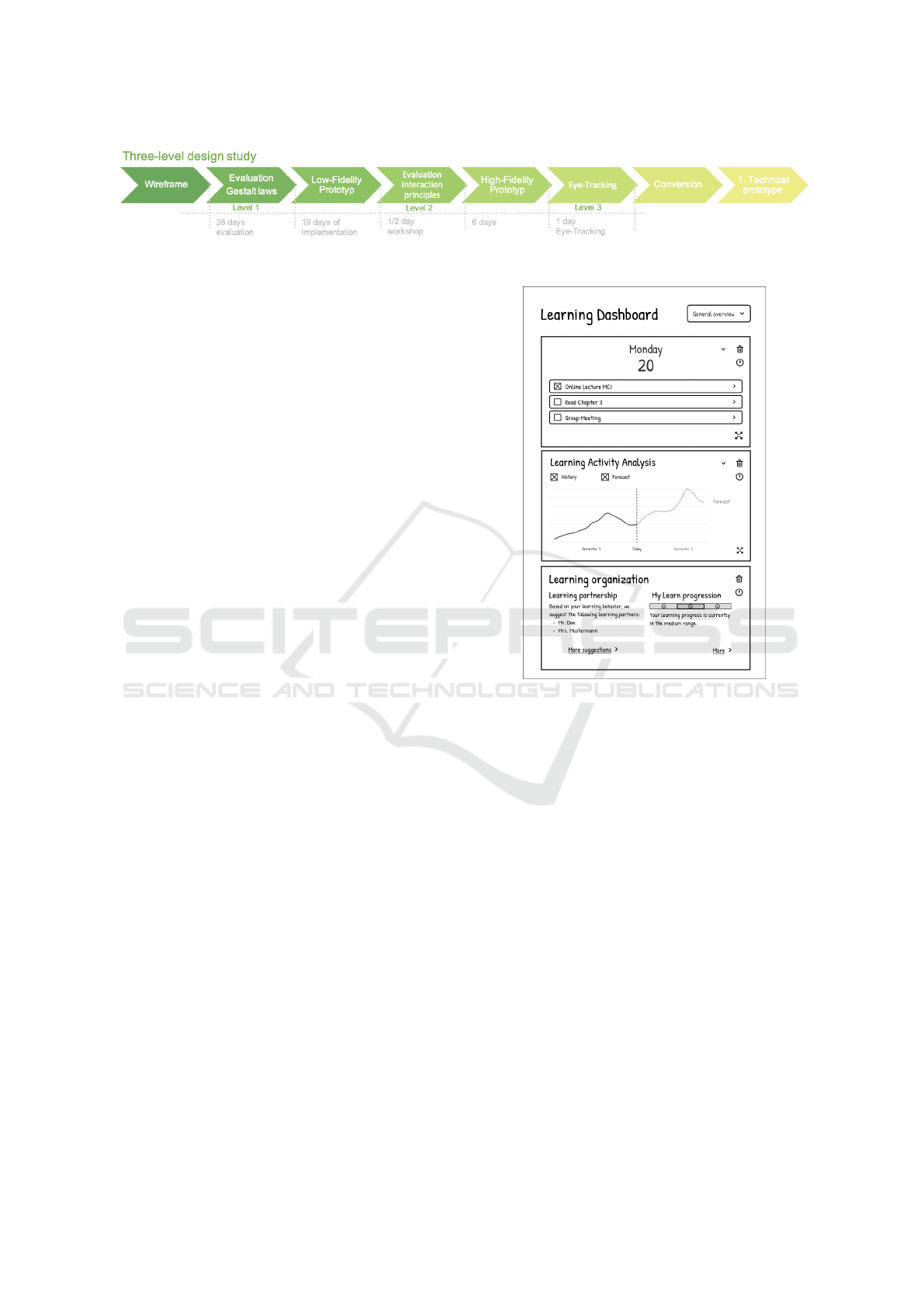

Figure 1: Representation of the three-level design study.

content elements of the online support tool be de-

signed to promote usability and user experience?

2 METHODOLOGICAL

APPROACH

The used investigations in the design-study were con-

ducted on the basis of three usability tests with the

focus group of students.

1. Evaluation of the wireframe by students (n=24)

using the Gestalt laws

(students of a module on human-computer inter-

action)

2. Evaluation of the low-ﬁdelity prototype using

seven interaction principles.

(Students of a human-computer interaction mod-

ule)

3. Student evaluation of the low-ﬁdelity prototype,

including examination of the user experience

(UX) using the User Experience Questionnaire-

Short (UEQ-S)

(Students of a usability module)

3 DEVELOPMENT AND

IMPLEMENTATION OF THE

The ﬁrst graphic design in the form of a wireframe

of the LD (Figure 2) formed the basis for the investi-

gations. The wireframe was developed based on the

literature review and expert interviews (n=9) as part

of the UCD process following the paper prototype

method.

3.1 Evaluation based on Gestalt Laws

and Fact and Interaction Problems

(Step 1)

The wireframe shown in Figure 2 was examined in

two parts with an additional assignment over a period

of four weeks as part of a module in the online course

Figure 2: First version of the LD wireframe.

Media Informatics in the summer semester of 2022:

In the ﬁrst part, the online students (n=24) were asked

to evaluate the wireframe for the ﬁve Gestalt laws:

”Law of Proximity”, ”Law of Similarity”, ”Law of

Proximity”, ”Law of (Good) Continuation”, ”Law of

Good Gestalt” (Wertheimer, 1922) with at least one

positive or one negative example each. The ﬁndings

of Gestalt psychology are intended to reduce the cog-

nitive effort required to assimilate information in LD

in the ﬁrst place (Wagemans et al., 2012). The second

part was to investigate whether factual and interac-

tional problems are present in the design. Both were

justiﬁed with examples in the elaboration. In the sec-

tion ”Created alternative solutions of the wireframe

by students” the additional task is considered sepa-

rately with an example. The result of the investigation

was a total of 75 DIN A4 pages of student ﬁndings.

Figure 3 shows an example of an identiﬁed problem

on the ”Law of Proximity”.

Student-centered Development of an Online Software Tool to Provide Learning Support Feedback: A Design-study Approach

245

Figure 3: Example from a student of an identiﬁed problem

with the Gestalt ”Law of Proximity”.

Alternative Solution of the Wireframe

Created by Students

Those students were given the additional task of cre-

ating an alternative solution for a map of their choice

based on the ”Law of Proximity”. 11 of the 24 stu-

dents solved this task. An example of such a design

can be seen in Figure 4, which illustrates how stu-

dents perceive such functionalities and which aspects

are important to them. Moreover, this demonstrates

the beneﬁts of the approach taken in this design-study,

where the involvement of students results in high-

quality, student-centered outcomes.

Figure 4: Example of a wireframe of a card developed by a

student.

The following text describes the German text

shown in Figure 4 in English.

Bonus Task ”How would I design a mockup?” The

area outlined in red with the number one describes the

issues that would concern the student when viewing

the card:

• How much time do I have until the exam? → time-

line

• How much is still missing per chapter? (per sub-

ject / module of study) → timeline

• Timelines should be displayed side by side to see

direct comparison → ”Law of proximity”

The area outlined with the number two represents the

card of the ”Course” view. The course ”Program-

ming 1” is displayed as the heading. Next to the head-

ing, there is a possibility to go to another course us-

ing the downward arrow. Below that, bars for dif-

ferent information are displayed. The top one shows

the complete lecture period, including the start of the

exam period. The following four progress bars in-

dicate chapters to be completed within the course.

Progress bars show a subchapter view when clicked.

Click on the icon in the lower right corner to move

the card anywhere within the overall view page. A

”congratulations-badge” should not be emailed to

the student as this could result in information over-

load.

The navigation concept was revised because it was

described as contra-intuitive by those students. In or-

der to take the aspect of individualizability into ac-

count, an editing functionality was also integrated.

For the calendar, the interaction options were revised

(marker element deleted, information expanded or

summarized, navigation elements for changing the

days of the week). For the learning progress, the

graphical representation was adapted by popular re-

quest of the students. Due to the variety of infor-

mation within the LD, an additional information el-

ement in the form of a question mark was inserted

in a prominent position (in the ﬁrst line of the grid,

right-aligned). This can be used to quickly obtain in-

formation about dashboard elements from any view.

Figure 5 shows the revision in detail.

3.2 Evaluation based on the Seven

Interaction Principles (Step 2)

The revised wireframe served as the basis for creat-

ing a low-ﬁdelity prototype. There were 14 different

views with different modal dialog boxes in the ﬁnal

version of the LD prototype. The individual interac-

tion elements of the LD (question mark icon, zoom

icon, pencil icon, and menu) were designed to be

clickable.

The prototype was made available to students of a

human-computer interaction module (n=24) for eval-

uation during a four-hour online workshop via an

Internet browser. The experts tested and evaluated

the seven interaction principles using a two-part task

(DIN EN ISO 9241-110, 2020). The workshop was

accompanied by 3 persons from the university sector.

The result of the study was a total of 54 DIN A4 pages

with the students’ ﬁndings.

CHIRA 2022 - 6th International Conference on Computer-Human Interaction Research and Applications

246

Figure 5: Revised variant of the LD’s wireframe.

3.3 Performing the Eye-tracking

Procedure with Thinking Aloud

(Step 3)

The entire low-ﬁdelity prototype was revised with the

new ﬁndings (Figure 5 shows part of the revised LD).

Afterwards, it was evaluated by a group of students

from a usability module (n=10). The entire study was

conducted in one day. Each session lasted a total of

30 minutes (including a welcome, introduction of the

project, and explanation of the procedure). Students

were presented with several subtasks to complete dur-

ing the 20-minute testing period and were guided by

moderators. After the eye-tracking study, students

performed a rating of the LD using the short ver-

sion of the User Experience Questionnaire (UEQ-S)

(Schrepp et al., 2017). This was used to evaluate the

overall usability of the prototype. Since eye-tracking

study was conducted only recently, only the already

available results are presented below.

First Results of the Third Step of the

Design Study

The students conﬁrmed the implementation of the

navigation concept and the general structure of the

LD. Speciﬁcally, they stated that the descriptions

should be precise and brief and can be expanded by

Figure 6: Low-ﬁdelity prototype of the LD.

clicking on further or more detailed information as

needed. This applies, for example, to the recommen-

dations on learning progress, which should initially be

presented only in condensed form when the detailed

view is called up. The reason for this is that the LD is

accepted as an additional element to support learning,

but this should not interfere too much with the actual

learning time of the students. It should be possible to

add additional user-deﬁned information to the assess-

ments (e.g., current exam grades or progress in read-

ing the learning content). However, this needs further

research as students expressed that the functionality

might be too complicated or time-consuming. For

the top-level help page, students would like to see a

walkthrough or short slideshow for the LD instead of

textual information (also time-consuming). In the us-

ability test, it was found that the navigation structure

is not always intuitive: for example, the icon for more

information about the displayed content was not al-

ways recognized as such. One solution would be to

make the entire map clickable. The individual views

(overall view, semester view and module view) could

not be distinguished in some cases. Here, the way the

content is displayed should be reconsidered in order

to better distinguish between the different views.

Student-centered Development of an Online Software Tool to Provide Learning Support Feedback: A Design-study Approach

247

3.4 Student Opinions from the

Evaluations

The evaluations clearly showed that the students got

a good idea of the future purpose and beneﬁt that

the shown wireframes depicted. For example, the

students commented in particular on the interaction

principle ”User Engagement” that the interest was

aroused ”[...] whether the learning behavior has im-

proved (or worsened) after a few days - the ambition is

aroused, game character”. Further feedback showed

that the students were pleased with the LD in their

studies and could imagine ”[...] that the available in-

formation would lead to structuring my studies fur-

ther or better and thus increase the chances of success.

Which in turn leads to using the system permanently.”

4 OUTLOOK & DISCUSSION

The next steps include the evaluation of the eye-

tracking study, the revision of the LD and subsequent

transfer as a plug-in into the LMS. The results so far

show that the direct exchange with the students is cru-

cial in order to be able to offer a LD that is used and

accepted. Important aspects and impulses for the in-

formation transfer, the design as well as the structure

and conception of a learning-supporting LD could be

gained. It is important that no additional (time and

cognitive) effort is required when using the LD, e.g.

for familiarization and understanding of its use, as it

bears the risk of not being used by online students.

The design study brought substantial results for fur-

ther research and implementation of the LD in the

LMS.

ACKNOWLEDGEMENTS

This work was funded by the German Federal

Ministry of Education, grant No. 01PX21001A /

01PX21001B.

REFERENCES

Baker, R. S., Lindrum, D., Lindrum, M. J., and Perkowski,

D. (2015). Analyzing early at-risk factors in higher ed-

ucation e-learning courses. International Educational

Data Mining Society.

Beard, L. A. and Harper, C. (2002). Student perceptions of

online versus on campus instruction. EDUCATION-

INDIANAPOLIS THEN CHULA VISTA-, 122(4):658–

663.

Diaz, D. P. (2002). Online drop rates revisited. The tech-

nology source, 3(3):35–51.

DIN EN ISO 9241-110 (2020). DIN EN ISO

9241-110:2020-10, ergonomie der mensch-system-

interaktion - teil 110: Grunds

atze der dialoggestal-

tung (ISO 9241-110:2020); deutsche fassung EN ISO

9241-110:2020.

Jivet, I., Scheffel, M., Specht, M., and Drachsler, H.

(2018). License to evaluate: Preparing learning an-

alytics dashboards for educational practice. In Pro-

ceedings of the 8th international conference on learn-

ing analytics and knowledge, pages 31–40.

Konert, J., Bohr, C., Bellh

auser, H., and Rensing, C. (2016).

Peerla-assistant for individual learning goals and self-

regulation competency improvement in online learn-

ing scenarios. In 2016 IEEE 16th International Con-

ference on Advanced Learning Technologies (ICALT),

pages 52–56. IEEE.

Schrepp, M., Hinderks, A., and Thomaschewski, J. (2017).

Design and evaluation of a short version of the user ex-

perience questionnaire (ueq-s). International Journal

of Interactive Multimedia and Artiﬁcial Intelligence, 4

(6), 103-108.

Wagemans, J., Elder, J. H., Kubovy, M., Palmer, S. E.,

Peterson, M. A., Singh, M., and von der Heydt, R.

(2012). A century of gestalt psychology in visual per-

ception: I. perceptual grouping and ﬁgure–ground or-

ganization. Psychological bulletin, 138(6):1172.

Wertheimer, M. (1922). Untersuchungen zur lehre von der

gestalt. Psychologische forschung, 1(1):47–58.

CHIRA 2022 - 6th International Conference on Computer-Human Interaction Research and Applications

248
