Responsive Chatbot Using Named Entity Recognition and

Cosine Similarity

Entin Martiana Kusumaningtyas, Ekky Regita Laurentino and Ali Ridho Barakbah

Informatics and Computer Scienece Department, Electronics Engineering Institute of Surabaya, Jl Raya ITS,

Surabaya, Indonesia

Keywords: Natural Language Processing, Chatbot, Text Mining, Cosine Similarity.

Abstract: Most of the higher education student service systems in Indonesia still use conventional and web-based system

to provide academic information to students. This reduces the effectiveness of students in obtaining academic

information. In the conventional system, students must visit the academic service center only to obtain

academic information. In the web-based system, students can access information anywhere, but students also

have to look for the right menu to obtain the academic information needed. This research proposes a chatbot

application to help students of Electronic Engineering Institute o Surabaya (EEPIS) obtain information

effectively and interactively. This application allows students to ask questions related to academic regulations,

grades, class schedules, and attendance recap. This research processes student question using Named Entity

Recognition method, this method can recognize the entities contained in the questions asked by the user. To

improve the ability of Named Entity Recognition (NER) method to handle words, we also implement

synonym checking and keyword matching process. The result entities of previous process will be calculated

its proximity to the keywords in the database using cosine similarity to find the right answer. The result of

this study showed an accuracy of 84.5% with testing 84 questions obtain 71 accurate answer.

1 INTRODUCTION

Education in Indonesia is a manifestation of one of

the country's goals, namely to make the intellectual

life of the nation. Therefore, education is included in

the rights of every Indonesian citizen. This is in

accordance with the constitutional mandate in the

1945 Constitution of the Republic of Indonesia

Article 31 paragraphs (1) and (2). It is also in Law no.

39 of 1999 concerning Human Rights Article (12). To

realize advanced education, adequate facilities are

needed to support the process of running the

education itself, one of which is by holding

educational units or schools or colleges. Furthermore,

in its implementation, educational units, especially

tertiary institutions, not only provide services in the

form of teaching and learning activities, but also meet

the needs of students to obtain student services to

realize a systematic education.

At this time, most universities still use

conventional and web-based systems to meet the

needs of student services such as schedule

information, attendance recap, and grades. In the

conventional system, students must ask student

service staff to obtain this information. This is

considered less effective because of time constraints

which result in student service employees at higher

education being unable to respond to student needs at

all times, especially outside working hours. The

limited number of employees also makes the service

must implement a queue system. These two things

certainly make the implementation of student services

not optimal and can reduce the level of student

satisfaction with student services at the university.

In a web-based student service system commonly

called a student portal, students can get these services

anywhere and anytime. However, in practice, to

access the student portal, many processes are

required, such as searching and selecting menus to

obtain appropriate information. When compared to

administrative services with conventional systems,

the conventional system definitely will be easier

because users can directly convey the required

academic information. Not only that, on a web-based

system, there are also some data provided in the form

of documents, such as data related to academic

regulations. Hence, students have to read the details

of the document to obtain the information needed.

Kusumaningtyas, E., Laurentino, E. and Barakbah, A.

Responsive Chatbot Using Named Entity Recognition and Cosine Similarity.

DOI: 10.5220/0011756300003575

In Proceedings of the 5th International Conference on Applied Science and Technology on Engineering Science (iCAST-ES 2022), pages 239-245

ISBN: 978-989-758-619-4; ISSN: 2975-8246

239

Along with the rapid development of technology,

many studies have been carried out to develop student

service systems. There are various technologies and

methods used to optimize the student service system.

Among them is the collaboration between chatbots

and digital signage to assist students in obtaining

information related to lecture schedules, seminars,

and alerts that can be obtained through digital boards

and chatbots. While the proposed methods in

optimizing student service systems include the K-

Nearest Neighbor method with the dataset used is

FAQ data which allows the system to find answers to

questions asked by users via chatbots. The method

that has also been proposed in previous research is

context recognition implemented on chatbot with the

dataset used is new student admissions data, thus

enabling the system to provide answers to questions

related to new student admissions submitted via chat.

The objective of this research that will be carried

out is to implement named entity recognition method

on chatbot system to provide student services related

to schedule information, attendance recap, grades,

and academic regulations. The major contribution of

this research is to model the chatbot system to help

student get the academic information based on

proposed named entity recognition method.

2 RELATED WORK

Student services is one of the important sectors in the

implementation of education. Student can found out

the information related to their study through such as

schedules, lectures, and grades through student

services. Many researchers have conducted research

to improve student services system. Rio Junardi et al

discussed Chatbot Messenger and digital signage

providing academic information services. On digital

signage, information will be displayed such as lecture

schedules, result seminar schedules, and a

comprehension test schedule. In addition, profiles of

universities are also displayed as well as several

pictures of documentation of activities that have been

carried out by these universities. While the chatbot

system can be used to request academic information

services according to requests by users. Users can

type keywords according to the requested data such

as location, lecturer, or study program. The chatbot

will then provide data according to the keywords

provided by the user.

Kristian Adi Nugraha et al from Duta Wacana

sChristian University discuss how to build a chatbot

to process academic services using the K-Nearest

Neighbor method. The chatbot application was built

to overcome the problem of decreasing customer

service performance due to the limited number of

employees or staffs serving. In addition, it also

overcame problems related to FAQs that were

previously implemented to reduce the customer

service workload but made it difficult for users to find

the list of FAQs needed. Through this chatbot, users

can send questions via chat applications using free

language and without a certain format. This chatbot

uses the K-Nearest Neighbor method which has been

widely implemented to solve problems related to text

classification. From this method, answers are taken

from the database based on similar questions asked.

Marwan Noor Fauzy et al from Amikom

University Yogyakarta propose the academic

information service chatbot by using the fuzzy string

matching method. The chatbot system in this research

is web based and built by using PHP and MySQL

database. To ask a question, the user can first access

the web then a conversation form and login form will

appear. Users are required to login first before asking

questions. After the user sends a question, the system

will recognize it as input data. Then from the data, the

keywords will be searched in it. If the keyword has

been found, it will be matched with the data

dictionary that has been previously defined using

Fuzzy String Matching. Through this method,

answers will be obtained based on keywords found

from user input.

Rico Arisandy Wijaya build a web service chatbot

system by using context recognition and binary

cosine similarity methods. The source of data used as

a knowledge base in this study is information related

to PMB PENS and a list of several questions that may

be asked by users related to PMB PENS. In the

system built, questions from ussers will be processed

by using text mining. Then from the input sentence,

only a few keywords will be taken according to what

is needed through the context recognition process.

This process can speed up the calculation process to

find answers using cosine similarity.

In this article there are several informations or

uniqueness compared to the related researches

mentioned above. This research implement named

entity recognition method to provide student services

using chatbot technology which allow students of

Electronic Engineering Polyechnic Institute of

Surabaya to ask several information about academic

regulations, recap attendances, schedules, and grades.

3 METHODOLOGY

This research was conducted to develop a chatbot

iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science

240

application with the implementation of named entity

recognition method that will be implemented on the

student portal of Electronics Engineering Polytechnic

Institute o Surabaya. The data used in the knowledge

based are academic regulation data and EEPIS

student data. The two types of data will give different

responses. Academic regulations will answer

questions related to academic rules that apply at

EEPIS, while student data will answer questions

related to grades, class schedules, and attendance

recap.

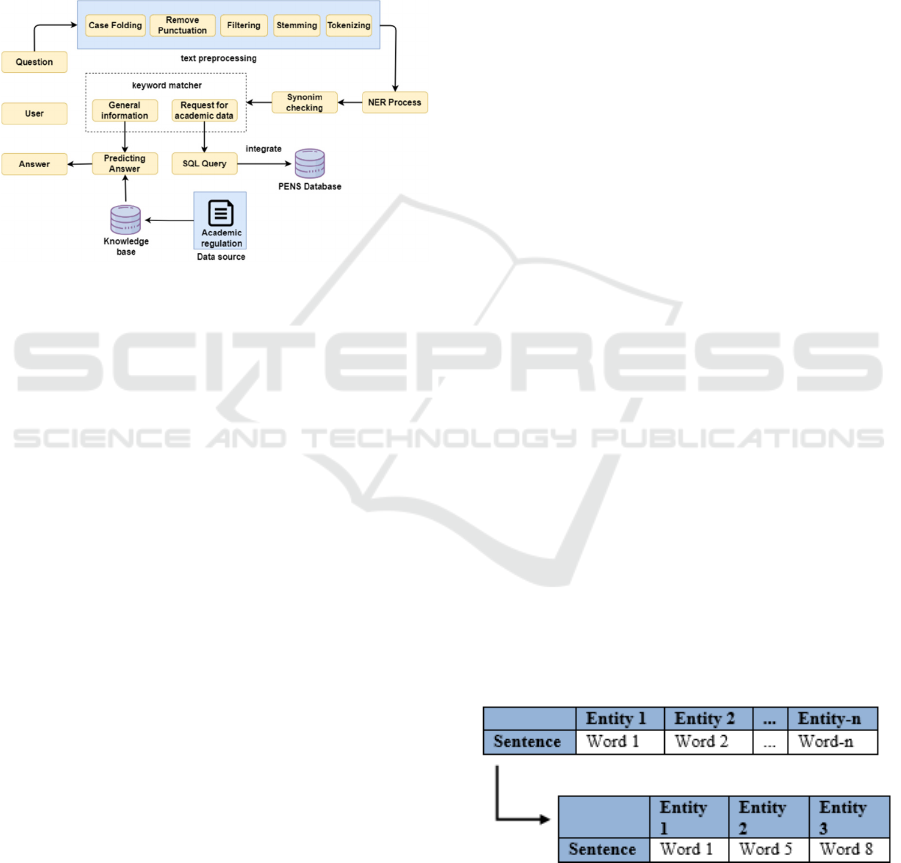

Figure 1: System design.

3.1 Input User

Input is the initial process where the users type in

what information they want to find, for example the

location of the college, the schedule of courses on

certain days in certain classes through a message.

Chatbot is designed to simulate a conversation or

interactive communication with the user. Therefore,

the conversation input is not limited by anything so

that the user can freely ask about any academic

information. Messages from users can be sent via the

chat page which will be provided on the student portal

web.

3.2 Text Preprocessing

Text preprocessing is the stage where all user input in

the form of text is prepared into data that will be

processed further. Text preprocessing aims for

uniformity and ease of reading in the next process.

This process is the stage of scanning the text of the

sentence from the user's question which aims to take

important points or keywords. Text preprocessing

will perform the process of extracting patterns (useful

information and knowledge) from a large number of

unstructured data sources, namely questions from the

user. In this text preprocessing process, there are

several processes to process user input until we get

keywords about what information the user wants.

3.2.1 Case Folding

Case folding is the process of converting all letters in

the user input sentence into lowercase letters. Only

letters 'a' to 'z' are accepted and processed, while

numbers and other punctuation marks will be ignored.

3.2.2 Remove Punctuation

Remove punctuation is a process where all

punctuation marks contained in the sentence will be

removed. This is done because punctuation does not

have effect on text preprocessing.

3.2.3 Filtering

Filtering is a process used to retrieve important words

in a sentence. Each word in a sentence from the user

will be compared with the list of words in the

stopword; the stopword contains common words that

often appear in everyday language and are considered

to have no meaning. Examples of these words are

'yang/that', 'dan/and', 'di/at/in', 'dari/from', and so on.

3.2.4 Stemming

Stemming is the process of removing affixes to words

to produce a root word. One word can often be used

in several contexts by giving different suffixes.

Therefore, affixed words must be separated from their

affixes in order to be processed because the keywords

in the database only contain a set of basic words.

3.2.5 Tokenizing

Tokenizing is the process of breaking a sentence into

several parts according to the constituent words. Each

word generated by the tokenizing process will act as

several keywords which will later be compared with

several keywords in the database.

3.3 Named Entity Recognition

Figure 2: NER illustration.

Named Entity Recognition is a process where the

system will retrieve several important entities in the

sentences entered by the user. The sentence will be a

Responsive Chatbot Using Named Entity Recognition and Cosine Similarity

241

keyword that will be compared with the keywords in

the database and the level of proximity is calculated

using cosine similarity to get the answer. An example

of the results of the named entity recognition process

will be presented in the figure below:

Figure 3: NER result.

3.4 Synonym Checking

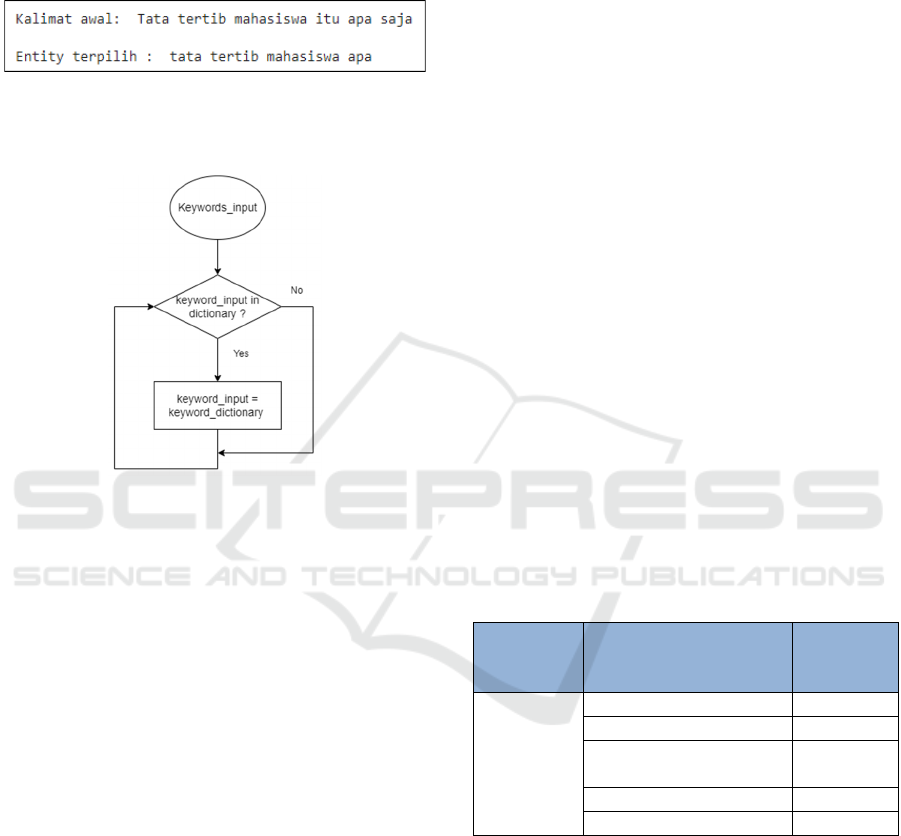

Figure 4: Synonym checking flowchart.

After doing the NER Process on sentences and

producing some important words/keywords, the next

step is to compare these keywords with words that

have the same meaning in the synonym dictionary.

Not all words can be entered as keywords in the

database. If the keywords contained are not the same

as the keywords in the database, then these keywords

will not be detected when the search for answers is

carried out even though they have the same meaning.

Therefore, to expand the knowledge of the system in

understanding the intent of the user and providing the

right answer, the system will add a synonym

dictionary containing keywords and several words

that have the same meaning. Then the system will

check whether the keyword is in the synonym

dictionary and if it is the same, then the word will be

replaced with the keyword in the database.

3.5 Keyword Matching

There are two types of questions that are inputted by

the user, namely questions about general information,

and questions to ask for academic data. Before the

process of searching for answers, the types of

questions must be known, whether the questions are

related to general information or asking for academic

data. Rules are needed to check and decide on the type

of question. Then after knowing the type of question,

the system will be able to determine whether the

answer search process will be carried out by

involving a database containing general questions, or

whether it is necessary to integrate with the PENS

database to obtain academic data.

3.6 Predicting Answer

The process of finding answers is done by using the

cosine similarity method. This method is used to

measure the proximity between the keywords

generated after the previous process and the keywords

in the database. The cosine similarity method is the

right method used in the process of finding answers

in this chatbot application because each answer has a

different number of keywords, and the advantage of

cosine similarity itself is that it is not affected by the

short length of a document to be compared so that

high accuracy results are obtained from the results of

calculations using cosine similarity in comparison of

keywords. The following is an example of the cosine

similarity calculation process with Table 2 is a sample

data of user input and a sample list of questions in the

database. While the details of calculating cosine

similarity for the sentence "Ada berapa program studi

D3 PENS ?” which is calculated for its proximity to

the keyword data " program studi d3 pens " is

described in Table 2.

Table 1: Cosine similarity result.

Input user Keyword database

Cosine

similarity

results

Ada

berapa

program

studi D3

PENS ?

ram studi d3 pens 0.75

ram studi d4 pens 0.5

program studi magister

ens

0.4472135

sosial media pens 0.0

daftar pens 0.0

Input from the user will go through a text

preprocessing process and check synonyms so that

several keywords are produced which will later be

calculated for cosine similarity with keywords in the

database.

iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science

242

Table 2: Cosine similarity calculation.

Keyword Input

(x)

Database

(y)

(x*y)

erapa 1 0 1 0 0

1 1 1 1 1

studi 1 1 1 1 1

d3 1 1 1 1 1

ens 0 1 0 1 0

Jumlah 4 4 3

||x|| =

√



1



1



 1



= 2

(1)

||y|| =

√



1



1



 1



= 2

Cosine

Similarit

(x,

)

= Dot product(x, y) / ||x|| *

||y||

(2)

= 3 / 2 * 2

= 0,75

3.7 Database System

Database system/Database Management System

(DMS) is a system or software designed to manage a

database and perform operations on data requested by

multiple users. The data referred to in this study are

data related to case studies that will be tested later,

namely data relating to general university information

and academic regulations for students of the Surabaya

State Electronics Polytechnic. This data will be used

to meet the information needs desired by the user.

4 EXPERIMENT RESULT

Database system/Database Management System

(DMS) is a system or software designed to manage a

database and perform operations on data requested by

multiple users. The data referred to in this study are

data related to case studies that will be tested later,

namely data relating to general university information

and academic regulations for students of the Surabaya

State Electronics Polytechnic. This data will be used

to meet the information needs desired by the user. The

chatbot application testing process is divided into

several stages according to the experimental

parameters to be tested. Among them are text

preprocessing processes including case folding,

remove punctuation, filtering, stemming and

tokenizing. Then, it is continued with a trial of finding

answers using cosine similarity to get answers related

to academic regulations and testing to get student data

through SQL Query. The trial will be carried out by

using sample data from user input. The following will

explain the steps in the testing process using sample

user input data.

Table 3: Case folding result.

Input Sentence Case Folding Results

Ada berapa jumlah

ram studi di PENS ?

ada berapa jumlah

ram studi di

ens ?

PJJ itu apa ya ?

jj itu apa ya ?

Apa saja program studi di

D3 PENS ?

apa saja program studi di

ens ?

a mau tan

a nilai don

a mau tan

a nilai don

Saya mau tanya jadwal

kuliah

saya mau tanya jadwal

kuliah

From Table 3 it can be seen that the case folding

process can give the right results. All sentences were

successfully uniformed into lowercase. The next

stage is remove punctuation, where the results of the

folding case will remove all punctuation marks

contained in it.

Table 4: Remove punctuation result.

Case Folding Result

Remove Punctuation

Result

ada berapa jumlah

program studi di pens ?

ada berapa jumlah program

studi di pens

jj itu apa ya ?

jj itu apa ya

apa saja program studi di

d3 pens ?

apa saja program studi di d3

ens

apa saja persyaratan

untuk daftar ulan

apa saja persyaratan untuk

daftar ulan

saya mau tanya nilai

dong

saya mau tanya nilai dong

saya mau tanya jadwal

kuliah

saya mau tanya jadwal

kuliah

From Table 4 it can be seen that the remove

punctuation process can give the right results, all

punctuation marks contained in the sentence can be

erased.

Table 5: Filtering result.

Remove Punctuation

Result

Filtering Result

ada berapa jumlah program

studi di pens

berapa jumlah program

studi pens

jj itu apa ya

apa saja program studi di d3

ens

program studi d3 pens

apa saja syarat untuk daftar

ulang

syarat daftar ulang

saya mau tanya nilai dong

nilai

saya mau tanya jadwal

kuliah

jadwal kuliah

Responsive Chatbot Using Named Entity Recognition and Cosine Similarity

243

From Table 5 it can be seen that the filtering

process can run well. Words marked with yellow are

words that are in the stopword list and are not needed

in the search for answers. The word was successfully

removed through the filtering process. From this

process, it can be analyzed that the stopword list

needs to be updated periodically according to the data

that continues to grow so that the system can run

optimally. The next stage is stemming, the results of

the filtering will be processed to remove the affixes

contained in some words. Sample data will be

presented in Table 6.

Table 6: Stemming result.

Filtering Result Stemming Result

berapa jumlah program

studi pens

berapa jumlah program

studi pens

pjj

ram studi d3 pens

ers

aratan daftar ulan

arat daftar ulan

nilai nilai

adwal kuliah

From Table 6 it can be seen that the stemming

process can run well, namely changing the affixed

word "requirement" to the basic word "condition".

Once done, the next stage of testing is the NER

Process. Sample data for questions and entities

generated will be presented in Table 7.

Table 7: NER result.

Questions Entities

Ada berapa jumlah

program studi di PENS

berapa, jumlah,

program, studi, pens

PJJ itu apa

a ?

pjj

Apa saja program studi

di D3 PENS ?

program, studi, d3,

ens

apa saja persyaratan

untuk daftar ulan

syarat, daftar, ulang

Saya mau tanya nilai

don

nilai

Saya mau tanya jadwal

kuliah

jadwal

From Table VII it can be seen that each question

will generate several entities. The resulting entity will

be used as a keyword that will be used to find

answers.

The nexst testing stage is finding answers using

cosine similarity. Details of the results of the

calculation of the cosine similarity between the

keywords from the user and the keywords in the

database will be presented in Table VIII.

Table 8: Cosine similarity experiment.

Input user

Keyword

database

Cosine

similarity

result

Berapa

jumlah

program

studi yang

ada di PENS

jumlah program

studi pens

0.81649658

0927

program studi d3

ens

0.61237243

5695

program studi

alin

minat pens

0.54772255

7505

lokasi pens

0.28867513

4594

psdku pens kota

mana

0.20412414

5231

In Table 8 it can be seen that the keywords with the

highest cosine similarity results are found in the

keyword "total of pens study programs." These

keywords are highly close to the keywords generated

by user input. In addition, the answers to these

keywords are answers that match the user's questions.

It can be stated that the process of finding answers

using cosine similarity is running well. The last stage

is testing the accuracy of the system in answering

questions. The sample data used are 84 questions

asked by the user to the system. The chatbot can

answer as many as 71 questions correctly. The result

of experiment will be shown on figure below.

Figure 5: Accuracy experiment result.

5 CONCLUSION

In this study, the author has implemented text

processing and named entity recognition method that

has been improved by synonym checking and

keyword matching process according to the needs of

the chatbot to get the appropriate answers. The author

also shows how the accuracy of the use of synonym

checking based on the dictionary and also the input

manually. The accuracy of this study reached 84%.

The pre-processing text manually optimize the NER

100

Akurat Kurangakurat

Perbandinganjumlahjawaban

akuratdankurangakurat

iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science

244

method to recognize the entities contained in the

question. The use of synonym checking can improve

system to recognize words that didn’t exist in the

knowledge base. Dictionary data synonyms also need

to be updated along with foreign words that appear so

that answers become more accurate. The weakness of

using synonym dictionaries is that the admin or the

party that makes the decision must have sufficient

knowledge, and adding synonyms can sometimes

ruin other word or even other synonyms if any

duplication synonym word in different keyword.

In the process of finding answers, the authors

implement binary systems for cosine similarity that is

highly recommended for chatbots because from user

questions on chat forums have a straight forward

purpose (directly mention the core of the question)

because how much the words is not for computing but

more focuses on the set of keywords in the question.

We test 84 sample data questions and obtain 71

accurate answer.

REFERENCES

Badan Pusat Statistik, Potret Pendidikan Indonesia

Statistik. (2019). Pendidikan Indonesia 2019, Badan

Pusat Statistik, 1

Edition.

Badan Pusat Statistik, Statistik Pendidikan Tinggi Tahun

2019 (2019). Pusat Data dan Informasi IPTEK DIKTI,

Edition.

Rio Jumardi, Lia Farokhah, Maghfirah. (2020). Kolaborasi

Digital Signage dan Chatbot Messenger Sebagai

Layanan Penyedia Informasi Akademik, Jurnal Media

Informatika Budidarma, Vol. 04, No. 02, Hal. 347-354,

STMIK Budi Darma Medan.

Ariyan Zubaidi, Ramdani (2019). Layanan dan Informasi

Akademik Berbasis Bot Ttelegram Di Program Studi

Teknik Informatika Universitas Mataram, Jurnal

Teknologi Informasi Komputer dan Aplikasinya, Vol.

1, No. 1, Program Studi Teknik Informatika Universitas

Mataram.

Migunani, Kevin Aditama (2020). Pemanfaatan Natural

Language Processing dan Pattern Matching Dalam

Pembelajaran Melalui Guru Virtual, Jurnal Elektronika

dan Komputer, Vol. 13, No. 1, Hal. 121-133, STMIK

ProVisi Semarang.

Ananda Dwi R, Firdha Imamah, Yusuf Mei Andre S,

Ardiansyah. (2018). Aplikasi Chatbot (MMILKI BOT)

Yang Terintegrasi Dengan Web CMS Untuk Customer

Service Pada UKM MINSU, Jurnal Cendikia, Vol.

XVI, Akademi Manajemen dan Informatika DCC.

G. M. D’silva, S. Thakare, S. More, and J. Kuriakose.

(2017). Real World Smart Chatbot for Customer Care

Using a Software as a Service (SAAS) Architecture, I-

SMAC (IoT in Social, Mobile, Analytics, and Cloud (I-

SMAC) on 2017 Internatioonal Conference on IEEE,

Palladam, India, Hal. 658-664.

Dayinta Warih Wulandari, Putra Pandu Adikara, Sigit

Adinugroho. (2018). Named Entity Recognition (NER)

Pada Dokumen Biologi Menggunakan Rule Based dan

Naïve Bayes Classifier, Jurnal Pengembangan

Teknologi Informasi dan Ilmu Komputer, Vol. 2, No.

11, Hal. 4555-4563, Fakultas Ilmu Komputer

Universitas Brawijaya.

Kanya, N., & Ravi, T. (2012). Modelings And Techniques

in Named Entity Recognition: an Information

Extraction Task. IET Chennai 3rd International

Conference on Sustainable Energy and Intelligent

Systems (SEISCON 2012), Tiruchengode, Tamilnadu,

India.

Kristian Adi Nugraha, Danny Sebastian. (2021). Chatbot

Layanan Akademik Menggunakan K-Nearest

Neighbor, Jurnal Sains dan Informatika, Vol. 7, No. 1,

Program Studi Teknik Informatika Politeknik Negeri

Tanah Laut.

Marwan Noor Fauzy. (2019). Kusrini, Chatbot

Menggunakan Metode Fuzzy String Matching Sebagai

Virtual Assistant Pada Pusat Layanan Informasi

Akademik, Jurnal INFORMA Politeknik Indonusa

Surakarta, Vol. 5, No. 1, Politeknik Indonusa Surakarta.

Rico Arisandy Wijaya, Entin Martiana Kusmaningtyas,

Aliridho Barakbah. (2019). Knowledge Based Chatbot

With Context Recognition, 2019 International

Electronics Symposium (IES), Surabaya, Indonesia,

Hal. 432-438.

Responsive Chatbot Using Named Entity Recognition and Cosine Similarity

245
