A Class Balancing Methods Comparison in Software Requirement

Classification Using a Support Vector Machine

Fachrul Pralienka Bani Muhamad, Esti Mulyani, Munengsih Sari Bunga

and Achmad Farhan Mushafa

Politeknik Negeri Indramayu, Indonesia

Keywords: Class Balancing, Classification, Feature Extraction, Pure Dataset, Software Requirements.

Abstract: Miss analysis of software requirements in the development stage whether functional or non-functional leads

to a significant impact on the quality derivation and cost & time escalation. Especially in agile approaches,

such as scrum, some non-functional requirements often go unnoticed, because of a high focus on business

functionality that tends to be prioritized. Previous research has been carried out in classifying software

requirements, especially non-functional requirements using the PROMISE dataset with the Bag of Words

(BoW) feature extraction and the Support Vector Machine (SVM) algorithm. The results obtained from the

combination of these methods provide a better accuracy value than the combination of feature extraction and

other classification algorithms. However, the software requirement dataset tends to be imbalanced considering

that there are several non-functional requirements types, so the data number of each class might differ. In

another study, it was stated that the imbalance of datasets could give not optimal classification results, so it is

necessary to balance the data. This research proposes class balancing on the dataset after the feature extraction

is carried out. The output of the balanced class is used for the classification process. The PURE dataset is used

in this research considering that the dataset is open to researchers. After experimenting with the combination

of BoW feature extraction, as well as class balancing methods (i.e. SMOTE, Borderline SMOTE, and SVM

SMOTE), and classified using the SVM algorithm, it was found that BoW with SVM SMOTE produces the

best value average with an accuracy of 78.7%, precision of 80.2%, recall of 78.7%, and F1-Score of 78.9. It

has higher results than software classification without a class balancing in enhancement average value

accuracy of 0.03%, precision of 0.05%, recall of 0.03%, and F1-Score of 0.04%.

1 INTRODUCTION

Software development requires a comprehensive

development process starting from the analysis of

Software Requirements and selecting the technology

to be used/developed to test the quality of the

Software that has been created. According to H. F.

Hofmann and F. Lehners (Aminu Umar, 2020) of the

many processes in software development, software

requirements specifications are very important which

will determine the quality of the software itself.

Software requirements are divided into two types,

namely Functional requirements (FR) and Non-

Functional requirements (NFR). FR is the main

feature or process that the software will carry out.

Meanwhile, NFR contains requirements that focus on

the limitations or behavior of the software. NFR is

based on the ISO 25010:2011 standard which consist

of several categories including Security, Usability,

Reliability, Portability, Performance, Compatibility,

and Maintainability (Mulyawan et al., 2021).

Unlike the traditional approach, which relies on

detailed processes and comprehensive planning,

determining software requirements with the Agile

approach can still be done by a Product Owner, but

given the relatively large and changeable Product

Backlog, and reduced levels of human concentration

and focus when performing If the work is repetitive

then more effort is needed to determine the software

requirements. Therefore, we need a model that can

provide information regarding the label description of

software requirements, both functional and non-

functional requirements. Our research is driven by the

following research questions (RQ):

RQ1: What is the effect of class balancing methods

in software requirements classification using a

Support Vector Machine?

366

Muhamad, F., Mulyani, E., Bunga, M. and Mushafa, A.

A Class Balancing Methods Comparison in Software Requirement Classiﬁcation Using a Support Vector Machine.

DOI: 10.5220/0011803100003575

In Proceedings of the 5th International Conference on Applied Science and Technology on Engineering Science (iCAST-ES 2022), pages 366-369

ISBN: 978-989-758-619-4; ISSN: 2975-8246

RQ2: Which of the class balancing method give the

best result?

RQ3: How far does the class balancing method

enhance the classification result without class

balancing?

The rest of the paper is organized as follows:

Section 2 discusses related work. The section

introduces the classification techniques used in this

work in detail. Section 4 presents the experiment

results and discusses their implications. In Section 5

We conclude this work.

2 RELATED WORK

In this Section we present some papers related to the

analysis of requirements, including survey,

classification and summarization of requirements.

Research by Ariful Haque, Abdur Rahman, and

Saeed Siddik in 2019 entitled "Non-Functional

Requirements Classification with Feature Extraction

and Machine Learning: An Empirical Study". This

study tries to automate the classification of Non-

Functional requirements with four Feature

Extractions and seven Machine Learning algorithms.

This study uses the PROMISE dataset (Haque et al.,

2019). The result of the research is that the Support

Vector Machine algorithm with Feature Extraction

Bag of Word produces higher Precision, Recall, and

F1-Score values than other algorithms and Feature

Extraction.

Research by Zijad Kurtanovic and Walid Maalej's

in 2017 entitled "Automatically Classifying

Functional and Non-Functional Needs Using Guided

Machine Learning". This study tries to calculate the

level of automation of functional and non-functional

requirements classification using Machine Learning

Support Vector Machine and Lexical Features

algorithms (Kurtanovic & Maalej, 2017). The result

of this research is that the Support Vector Machine

algorithm is successful in classifying Functional and

Non-Functional requirements by getting the Precision

and Recall values reaching ~92%.

Research by S Tiun, U A Mokhtar, S H Bakar,

and S Saad in 2020 entitled "Classification of

functional and non-functional requirements in

software requirements using Word2vec and fast

Text". This study tries to automate the classification

of Non-Functional requirements with two

combinations of Feature Extraction and four Machine

Learning algorithms. This study uses the RE17

dataset (Tiun et al., 2020). The result of this research

is that the performance of Word2vec Feature

Extraction and fast text classification is not much

better than other machine Learning algorithms such

as Logistic Regression combined with Bag of Word

but better than Support Vector Machine combined

with Bag of Word.

3 METHOD

This paper proposed a technique for finding the best

combination of balancing class and machine learning

approaches to software requirement classification.

We preprocessed the dataset by manually labeling

each software requirement statement. First, we

converted the original NFR dataset to a CSV file. The

whole process of this research is divided into the

following five steps and depicted in Figure 1.

3.1 Pure Dataset

The data collection in this paper uses a public dataset,

and is used in general in research where the

classification of software requirements for the dataset

in question is the PURE (Public Requirement)

dataset.

Table 1: Numbers and Percentages of Manually Labeled

User Review Sentences in the Dataset.

Category

Statement

Proportion

Usability

102

12%

Reliability

Security

106

12%

Performance

109

12%

Maintainability

Portability

Functional

Requirement

439

50%

Total

885

100%

3.2 Method Details

There are 5 (five) steps in this study to produce the

desired outcome i.e., Preprocessing, Feature

Extraction, Class Balancing, Processing, and

Evaluation.

A Class Balancing Methods Comparison in Software Requirement Classiﬁcation Using a Support Vector Machine

367

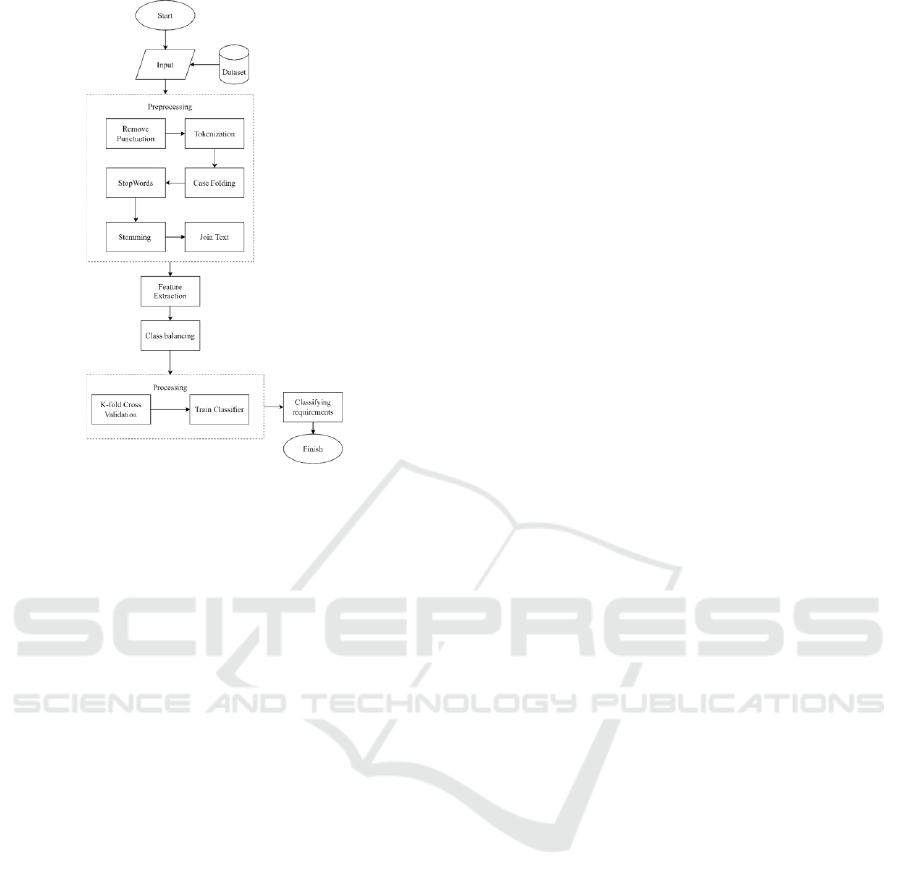

Figure 1: The Software Requirement Classification

Process.

a. Step 1: Preprocessing

Before starting the feature extraction process, the

word to be used must be cleaned first through the text

preprocessing process, preprocessing was used in this

study using library Natural Language Toolkit

(NLTK), as shown in Figure 1:

• Remove Punctuation

A process to clean sentences from punctuation

marks or perform replacements on the target

string based on the specified pattern. In the

Remove Punctuation process used is to remove

punctuation marks and numbers.

• Case Folding

A process to changing capital letters to lowercase

or regular letters (Rahimi et al., 2020).

• Tokenization

A process of separating input data into tokens

(Binkhonain & Zhao, 2019).

• StopWords

A process of removing auxiliary verbs,

prepositions, pronouns, adverbs, and conjunctions

in sentences (Binkhonain & Zhao, 2019) like the,

be, to, in, is, etc.

• Stemming

A process of reducing inflected (or sometimes

derived) words to their word stem, base or root

form (Binkhonain & Zhao, 2019). For example,

the words ‘goes’, ’gone’, and ‘going’ will map to

‘go’.

• Joining Text

In this process the words that become tokens are

combined into 1 sentence.

b. Step 2: Feature Extraction

This step converts the pre-processed re- requirements

document into a format that can be understood by the

machine learning model (Ramos et al., 2018). In this

step, the document is represented as a vector, where

the value of this word is weighted through different

techniques, such as binary methods. Techniques in

vectorization such as the following:

• Bag of Words:

This vector space model represents unstructured

text as a numeric vector, where it establishes the

presence of feature words from all the words of an

instance. In the process, the software

requirements are converted into numerical vectors

in such a way that each document is represented

by 1 vector (row) (Haque et al., 2019).

c. Step 3: Class Balancing

On such data learning classification methods

generally perform poorly because the classifier often

learns better than the majority class. The reason for

this is that learning classifiers attempt to reduce

global quantities such as the error rate, and do not take

the data distribution into consideration. As a result,

samples from the dominant class are well-classified

whereas samples from the minority class tend to be

misclassified (Poolsawad et al., 2014). This paper

uses one strategy of sampling data. SMOTE generates

synthetic examples for the minority class; where

SMOTE offers three additional options to generate

samples. Those methods focus on samples near the

border of the optimal decision function and will

generate samples in the opposite direction of the

nearest neighbors class.

d. Step 4: Processing

Three classification techniques of class balancing i.e.

SMOTE, SVM SMOTE, and BORDERLINE

SMOTE has been used in the above step to balance

class, which act as the input of machine learning

algorithms of training classifiers. The

experimentation has been conducted using SVM

machine learning algorithms. The various balancing

class was applied for requirements classification to

compare the performance.

iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science

368

e. Step 5: Evaluation

Each of the classifiers trained in the previous section

will output for a given requirement whether it belongs

to a category or not. For example, in order to classify

requirements according to category performance, the

framework will return the list of requirements for

which it received a fit with the answer. Also, the other

documents will be classified accordingly. The

combination of four textual feature extraction

methods and SVM machine learning algorithms have

been applied in this software requirements

classification framework. The textual data has been

converted into vector representations to be fed as

input in machine learning algorithms.

4 RESULT

In this paper, the evaluation of the machine learning

model focuses on the values of the parameters that

will be used, including the average score of 2 fold of

Accuracy, F1-Score, Precision and Recall.

Table 2: Comparison averaage score all method.

METHOD

AVERAGE SCORE

ACCUR

ACY

F1-

SCORE

PRECISI

RECALL

SMOTE

0.70

0.73

0.70

SVM SMOTE

0.78

0.80

0.78

BORDERLINE

SMOTE

0.72

0.73

0.75

0.72

Without Class

Balancing

0.75

0.74

0.75

5 CONCLUSION

It can be concluded that the class balancing method

can enhance the SVM method in software

requirements classification accuracy of 0.03%,

precision of 0.05%, recall of 0.03%, and F1-Score

0.04%. Class balancing SVM SMOTE gives the best

result among the rest of them.

REFERENCES

Aminu Umar, M. (2020). Automated Requirements

Engineering Framework for Agile Development.

ICSEA 2020: The Fifteenth International Conference

on Software Engineering Advances, c, 147–150.

Binkhonain, M., & Zhao, L. (2019). A review of machine

learning algorithms for identification and classification

of non-functional requirements. In Expert Systems with

Applications: X (Vol. 1). Elsevier Ltd.

https://doi.org/10.1016/j.eswax.2019.100001

Haque, A., Rahman, A., & Siddik, S. (2019). Non-

Functional Requirements Classification with Feature

Extraction and Machine Learning : An Empirical

Study. 2019 1st International Conference on Advances

in Science, Engineering and Robotics Technology

(ICASERT), 2019(Icasert), 1–5.

Kurtanovic, Z., & Maalej, W. (2017). Automatically

Classifying Functional and Non-functional

Requirements Using Supervised Machine Learning.

Proceedings - 2017 IEEE 25th International

Requirements Engineering Conference, RE 2017, 490–

495. https://doi.org/10.1109/RE.2017.82

Mulyawan, M. D., Kumara, I. N. S., Bagus, I., Swamardika,

A., & Saputra, K. O. (2021). Kualitas Sistem Informasi

Berdasarkan ISO / IEC 25010 : 20(1).

Poolsawad, N., Kambhampati, C., & Cleland, J. G. F.

(2014). Balancing class for performance of

classification with a clinical dataset. Lecture Notes in

Engineering and Computer Science, 1(July 2014), 237–

242.

Rahimi, N., Eassa, F., & Elrefaei, L. (2020). SS symmetry

An Ensemble Machine Learning Technique for. Ml, 1–

25.

Ramos, F., Costa, A., Perkusich, M., Almeida, H., &

Perkusich, A. (2018). A non-functional requirements

recommendation system for scrum-based projects.

Proceedings of the International Conference on

Software Engineering and Knowledge Engineering,

SEKE, 2018-July(July), 149–154.

https://doi.org/10.18293/SEKE2018-107

Tiun, S., Mokhtar, U. A., Bakar, S. H., & Saad, S. (2020).

Classification of functional and non-functional

requirement in software requirement using Word2vec

and fast Text. Journal of Physics: Conference Series,

1529(4). https://doi.org/10.1088/1742-

6596/1529/4/042077

A Class Balancing Methods Comparison in Software Requirement Classiﬁcation Using a Support Vector Machine

369
