Portable Face Mask Detector Using Jetson Nano and USB Webcam

QHD Based on OpenCV

Hadi Supriyanto, Ruminto Subekti, and Adri Almas Afwansyah

Department of Automation and Mechatronics Engineering,

Bandung Polytechnic of Manufacturing, Bandung, Indonesia

adri.almas@mhs.polman-bandung.ac.id

Keywords: Face Mask Detector, Yolov4-tiny, Computer Vision, Object Detection.

Abstract: ARI (Acute Respiratory Infection) is still a major cause of infectious disease morbidity and mortality in this

world. The mortality rate for ARI reaches 4.25 million every year in the world. Similar to ARI, Covid-19 is

also a contagious disease. By implementing health protocols, especially the use of masks, can reduce the risk

of contagious disease transmission so that all activities can run well. The portable face mask detector is needed

to prevent ARI and Covid-19. It can monitor and ensure that mask-wearing rule is followed by each individual.

The face mask detector can work with the YOLO algorithm. The research was conducted using a USB

webcam to capture images, a USB speaker, and a Jetson Nano as an image processing device with the Yolov4-

tiny algorithm to detect masked and non-masked objects. The developed system successfully detects the use

of masks when the distance between the object and the camera varies from 2.68 m to 5.38 m and the position

of the object's face is 110˚ (right to left) and 83.33˚ (up and down). The system alerts each time a subject is

not wearing a mask. The system can detect masked and non-masked objects with an error value of 0,67%.

1 INTRODUCTION

ARI (Acute Respiratory Infection) is still a major

cause of infectious disease morbidity and mortality in

this world. The mortality rate for ARI reaches 4.25

million every year in the world. Based on data from

the World Health Organization (WHO) in 2019 lower

respiratory tract reduces life expectancy by 2.09 years

in sufferers. (World Health Organization, 2019) The

group most at risk is toddlers. About 20-40% are

hospitalized among children due to ARI with about

1.6 million deaths due to pneumonia itself in children

under five per year. In adults, the mortality rate (25-

59 years old) reached 1.65 million. (Susilowati et al.,

2021)

The incidence of ARI is influenced by intrinsic

and extrinsic factors. Intrinsic Factor includes age,

breastfeeding, nutritional status, low birth weight,

nutritional status immunization. While the extrinsic

factors include knowledge, educational factors,

occupancy density, physical condition of the house,

house ventilation, cigarette smoke, socio-economic

and profession (Susilowati et al., 2021).

Environmental influences such as forest fire smoke,

dust, and other air pollution can make the situation

worse. Similar to ARI, Covid-19 is also a contagious

disease.

Coronavirus (SARS-CoV-2) is a virus that can

attack the respiratory system (Wu et al., 2020). This

virus has evolved to produce new virus variants.

These variants include delta and omicron. From the

Weekly Epidemiological Update on Covid-19

published by the World Health Organization (WHO)

on 28 December 2021, it appears that the risk of the

new variant of concern, Omicron, remains high.

Evidence found suggests that this variant has a

growth advantage over the delta variant with a

doubling time of 2-3 days, leading to an increase in

cases of virus infection in several countries (World

Health Organization, 2021).

Early prevention for ARI and Covid-19 can be

done by maintaining physical distance, mask-

wearing, washing hands regularly with soap and

water or hand sanitizer, not touching the facial area

before washing hands, and increasing stamina

through a healthy lifestyle (Fatia et al., 2020).

A person can contract contagious disease by

accidentally inhaling droplets that come out when a

sufferer coughs or sneezes, by touching the facial area

without washing hands first after touching an object

Supriyanto, H., Subekti, R. and Afwansyah, A.

Portable Face Mask Detector Using Jetson Nano and USB Webcam QHD Based on OpenCV.

DOI: 10.5220/0011811300003575

In Proceedings of the 5th International Conference on Applied Science and Technology on Engineering Science (iCAST-ES 2022), pages 409-416

ISBN: 978-989-758-619-4; ISSN: 2975-8246

409

that has been exposed to a splash of saliva from a

sufferer, and through contact with a sufferer

(Jayaweera et al., 2020).

To implement a portable face mask detector, an

object recognition algorithm is required. Various

methods such as Convolutional Neural Network, You

Only Look Once (YOLO), Cascade Classifier and

others can be used as object recognition methods.

Based on some of these methods, it can be determined

which method is suitable and effective for object

recognition by considering its speed and accuracy.

Based on this concept, the face mask detector can

use the YOLO algorithm. This algorithm is a real-

time object detection system. It was first introduced

by Redmon and friends in 2015. Their article entitled

You Only Look Once: Unified, Real-Time Object

Detection describes an object detection system

capable of detecting objects in real-time up to 45 FPS

on hardware with a graphics processing unit (GPU)

(Redmon et al., n.d.).

Based on previous research in a journal written by

H. Supriyanto, N.W. Nugraha, and H. Febianto, good

results were obtained in facial mask recognition. The

developed system successfully detected the use of

masks at the Polman Bandung Informatics

Laboratory with a different number of people. The

results showed that the recognition system worked

with 100% accuracy at a light intensity of 80

lux."(Supriyanto et al., 2021).

Finally, after recognizing the above problems,

facial mask recognition research was conducted. The

research was conducted using a USB webcam to

capture images in the lab and Jetson Nano as an image

processor with the Yolov4-tiny algorithm to

distinguish between masked and unmasked object.

2 RELATED WORKS

2.1 Face Mask Detection Using Jetson

Nano

In a study entitled "Face Mask Detection Using Jetson

Nano" conducted by Talagadadeevi Pooja,

Badithaboina Chandra Mouli, Doodi Sri Lakshmana

Harika, Bonu Yoganand, dan Nikkula Hemanjali in

2021(Pooja et al., 2021). The researchers managed to

create a mask-wearing detection system using

NVIDIA Jetson Nano, HD Logitech Camera, ResNet,

and VNC worker.

2.2 YOLO v3-Tiny:

Object Detection

and Recognition Using One Stage

Improved Model

In a study entitled " YOLO v3-Tiny: Object Detection

and Recognition using one stage improved model"

conducted by Pranav Adarsh, Pratibha Rathi, dan

Manoj Kumar in 2020 (Pranav Adarsh et al., 2020).

This research shows a comparison of several

algorithms for detecting and identifying objects and

found that YOLO-v3-Tiny can increase the speed of

the object detection process while still striving for the

accuracy of the detected objects (Pranav Adarsh et al.,

2020).

2.3

Face Mask Detection Based on

Transfer Learning

and PP-YOLO

In a study entitled "Face mask detection based on

Transfer learning and PP-YOLO" conducted by

Wang Jian, dan Lin Lang in 2021 (Jian & Lang,

2021). This research shows that the PP-YOLO-Mask

model gets the mAP value of 86.69%, and succeeds

in obtaining good mask wearing detection in public

places."(Jian & Lang, 2021)

3 METHODOLOGY

3.1 System Overview

The system we have developed is used to observe

students who are studying in the informatics

laboratory, if there are students who do not wear

masks for a certain period of time, the system will

raise an alarm, and students who violate it will be

captured.The system we have developed looks as

shown in Figure 1.

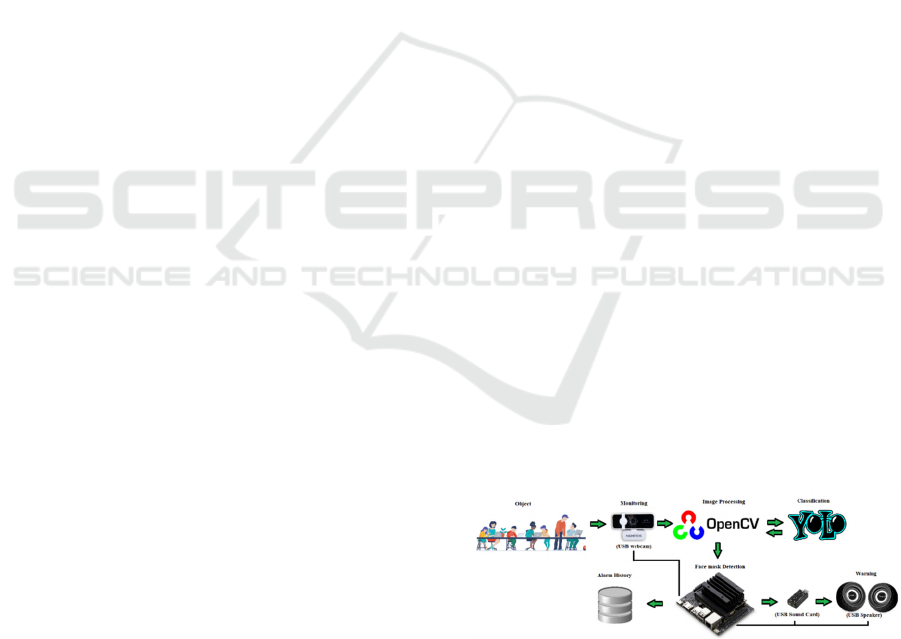

Figure 1: System Overview.

The USB webcam, USB sound card, and USB

speaker are connected serially to the jetson nano. The

USB webcam is used to monitor objects. Objects with

and without masks are recognized by the system

through OpenCV data processing and YOLO

classification data. The USB sound card is used as a

iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science

410

connection between the Jetson nano and the USB

speaker. USB speaker cannot be connected directly to

the Jetson nano because this microcontroller does not

have the audio connector. Then the alarm history is

used to store violation data when the object is not

wearing a mask. Violation data can be accessed by

moving the database file to a PC or laptop and then

opening it with the DB Browser software.

Table 1: System Demand.

o S

stem Deman

1 Classification of human objects wearing

masks or no

2 Speaker as a warning for violations of not

wearin

masks

3 Images in .jpg format for every time there

is a violation

4 Video in .mp4 format for every time there

is a violation

5 History of violations that stored in a

database

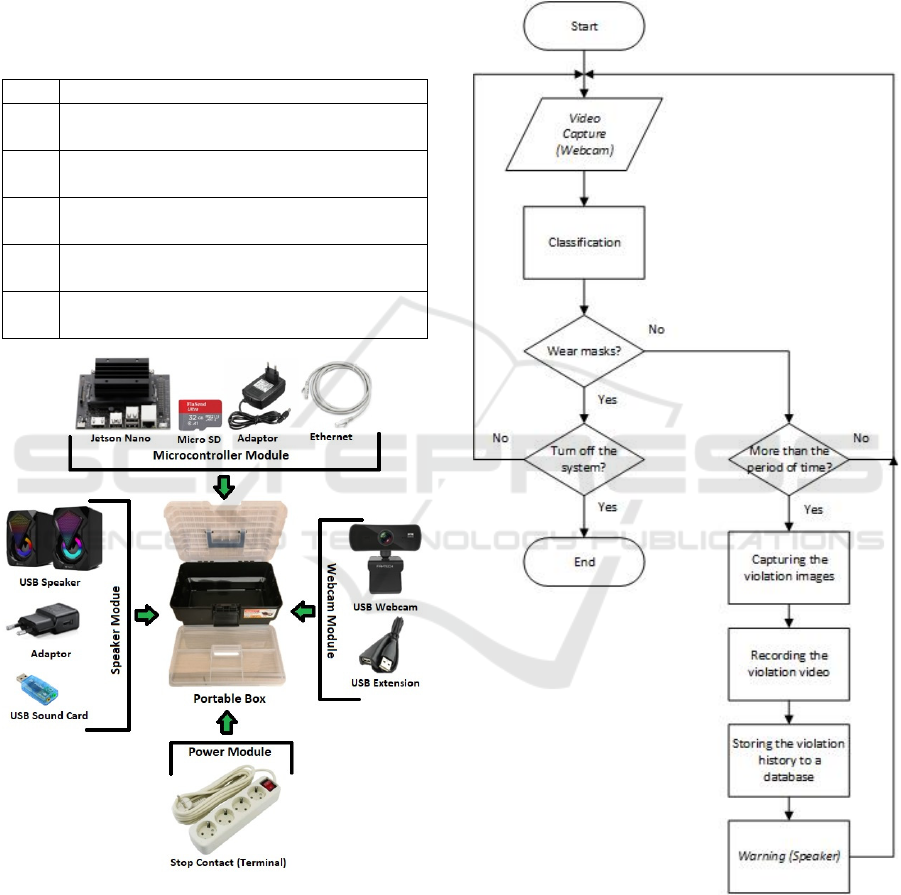

Figure 2: Portable Face Mask Detector concept design.

This portable system consists of several modules

including, a microcontroller module, speaker module,

webcam module, and power module. All of these

modules can be stored in a portable box to make it

easier for users when moving the tool from one place

to another. In the microcontroller module, there is a

microSD as a data storage memory and Operating

System from Jetson Nano. Then the ethernet cable is

used for screen projection or controlling the Jetson

Nano by other devices if needed. Screen projection is

done using VNC Server and VNC Viewer software.

3.2 System Flow Chart

Figure 3: Face Mask Detector Flowchart.

In Figure 3, when the system starts operating, the

USB Webcam will start taking video. Then the

system will detect objects caught by the USB

Webcam. When there is an object that does not wear

a mask for a predetermined time, the system will

detect the event as a violation of health protocols.

Portable Face Mask Detector Using Jetson Nano and USB Webcam QHD Based on OpenCV

411

Jetson nano will process the data by taking pictures

and recording videos of the health protocol violation.

The captured data will be saved into the database as

alarm history which is needed to know how many

violations have occurred while the system is

activated. After the data is stored, the alarm will be

activated by issuing a voice warning and an appeal to

wear a mask via USB Speaker.

3.3 Yolo Flow Chart

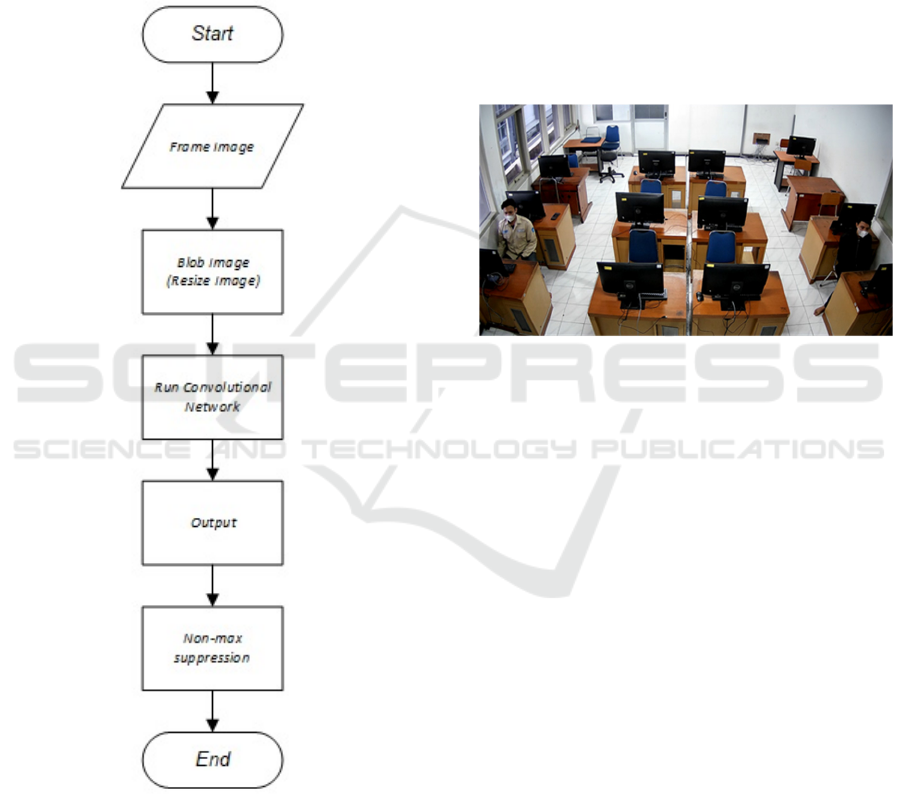

Figure 4: Yolo Flowchart.

Figure 4 shows the flowchart of the YOLO algorithm

used to classify human objects wearing masks and not

wearing masks. First, the image frame captured from

the camera will be resized and made into a blob

image, the input image will run a convolutional

network to classify the prediction class. The output of

the convolutional process is an array with a vector

length of 7. where 4 bounding boxes, 1 box

confidence, and 2 class confidence, non-max

suppression is used to eliminate bounding boxes that

have low confidence scores, and the last process is to

create a box for each detected object that has a high

score with the coordinates and width generated from

the convolutional process.

3.4 Yolov4-tiny

Model Making

This section describes the process of creating a

yolov4-tiny model using google colab VM (Virtual

Machine). Making the yolov4-tiny model can be done

online by utilizing the colab VM facility.

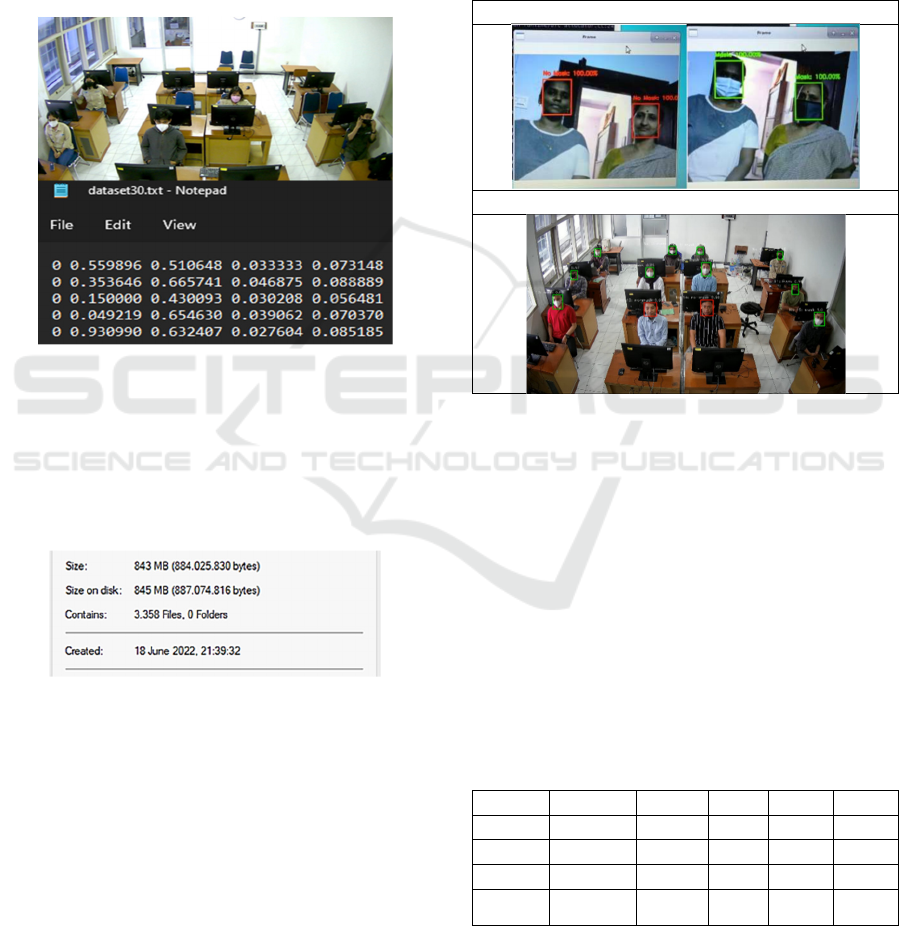

Figure 5: Dataset example.

The first step begins with labeling the dataset with

2 classes, mask, and no-mask using labeling software.

Labeling uses the YOLO format. Then clone darknet

into the colab VM, this is done because for training

models darknet is needed as a modeling framework.

Then create a yolov4-tiny folder and a training folder

in it to store the model results when the training

process is complete. Then upload the dataset file, cfg

file, obj.data, obj.names, and process.py which will

be needed in the training process into the yolov4-tiny

folder. Then build darknet to activate the framework

function. Then run process.py to create train.txt and

test.txt files which contain training image directories

and validation image directories. then configure the

obj.names file which contains 2 classes, the obj.data

file which contains the train.txt, test.txt directories,

the model directory generated in the training process

and the number of classes and configure the yolov4-

tiny-custom.cfg file to determine the size of the image

to be processed, the number of classes, the number of

iterations and others. Then load the pre-trained model

and perform the training process until it reaches the

specified max_batch value.

iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science

412

3.5 Dataset

The dataset used in this study was several images

containing objects wearing masks and not wearing

masks. In one image, it can contain objects wearing a

mask, not wearing a mask, or both of them. The

specification of the image for the dataset is in .jpg

format. After the labeling process is completed, the

.txt file will be generated. Each image has a .txt file

that can describe the object classes based on YOLO

format.

Figure 6: .jpg and .txt file.

The first digit in the .txt file indicates the class of

the object, if the value is 0 then the object is wearing

a mask and if it is 1 then the object is not wearing a

mask. The next digits are the coordinates of the

bounding box location according to the YOLO

format.

Figure 7: Dataset folder.

The number of datasets used in this study is 1679

.jpg images. Then 1679 other files in the form of .txt.

These .jpg and .txt files were used for training and

testing. After the training and testing process

completed, then it will generate the yolov4-tiny

model that used in this study.

3.6 Difference with Previous Study

In the previous study entitled "Face Mask Detection

Using Jetson Nano" conducted by Talagadadeevi

Pooja, Badithaboina Chandra Mouli, Doodi Sri

Lakshmana Harika, Bonu Yoganand, dan Nikkula

Hemanjali in 2021 (Pooja et al., 2021). The

researchers succeeded in making a mask detection

system for short distances between objects and the

camera. while in this study, the system is

implemented to detect objects with a longer distance

and a greater number of objects. The difference lies

in the dataset used and the scope of its application.

Table 2: The result in previous study and this study.

Previous Stud

This Stud

In this study, the system developed to have 5

functions. There are classification function, warning

alarm (when there was an object not wearing mask),

capturing photo, capturing video, and violation

history function.

3.7 YOLO

and Mobilenetv2 Algorithm

Based on a paper entitled “Comparison of Object

Detection Algorithm for Street-Level Objects” in

2022 (Naftali et al., 2022), yolo algorithm is better

than mobilenetv2 in terms of quantitative testing

result. But mobilenev2 has a faster inference time for

detecting object.

Table 3: Quantitative Testing Result.

Measure Mobilenetv2 Yolov3 Yolov4 Yolov5I Yolov5s

Precision

0.354 0.767 0.569 0.780 0.670

Recall

0.228 0.535 0.589 0.545 0.501

mAP@0.5

0.315 0.583 0.582 0.593 0.530

Inference

Time (ms)

6.30 27.60 27.90 25.40 8.50

The important things in this study is the precision

and accuracy of the detection result. So, yolo

algorithm is more suitable to be applied in this study.

Portable Face Mask Detector Using Jetson Nano and USB Webcam QHD Based on OpenCV

413

4 RESULT

4.1 System Function Testing

This test is carried out to see the ability of the system

that has been made against the demands of the system

that has been determined.

Table 4: System function testing.

o S

stem Deman

Status

1 Classification of human objects

wearin

masks or no

Success

2 Speaker as a warning for

violations of not wearin

masks

Success

3 Images in .jpg format for every

time there is a violation

Success

4 Video in .mp4 format for every

time there is a violation

Success

5 History of violations that stored in

a database

Success

• Classification of human objects wearing

masks or not

Table 5: Classification.

mas

no-mas

Status

This table shows that the system can classify objects

that wear masks and objects that do not wear masks.

A green box will appear when the object is wearing a

mask, and a red box will appear when the object is not

wearing a mask. The performance of the system has

met the demands of system number 1

• Speaker as a warning for violations of not

wearing masks

Table 6: Classification.

Condition Db Mete

No-

Violation

In the table 6 shows that the warning speaker will

actively make a sound when there is a violation. The

performance of the system has met the system

demands number 2.

• Images in .jpg format for every time there is

a violation

Figure 8: Violation image.

The system has successfully captured a .jpg image

when detecting a violation, naming the image file

according to the time of the violation. The

performance of the tool has met the demands of

system number 3.

• Video in .mp4 format for every time there is

a violation

Figure 9: Violation video.

The system has successfully recorded the .mp4 video when

it detects a violation, the name of the video file generated

according to the time of the violation. The performance of

the tool has met the demands of system number 4.

• History of violations that stored in a

database

Figure 10: Violation history.

iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science

414

The system has successfully saved the data of violation

history into a database. The performance of the tool has met

the demands of system number 5.

4.2 Main Scheme Testing

This test is carried out to see the performance of the

system that has been made in detecting students who

are studying in the informatics laboratory. This test

aims to see the system's ability to detect the use of

masks simultaneously and the accuracy of its

predictions.

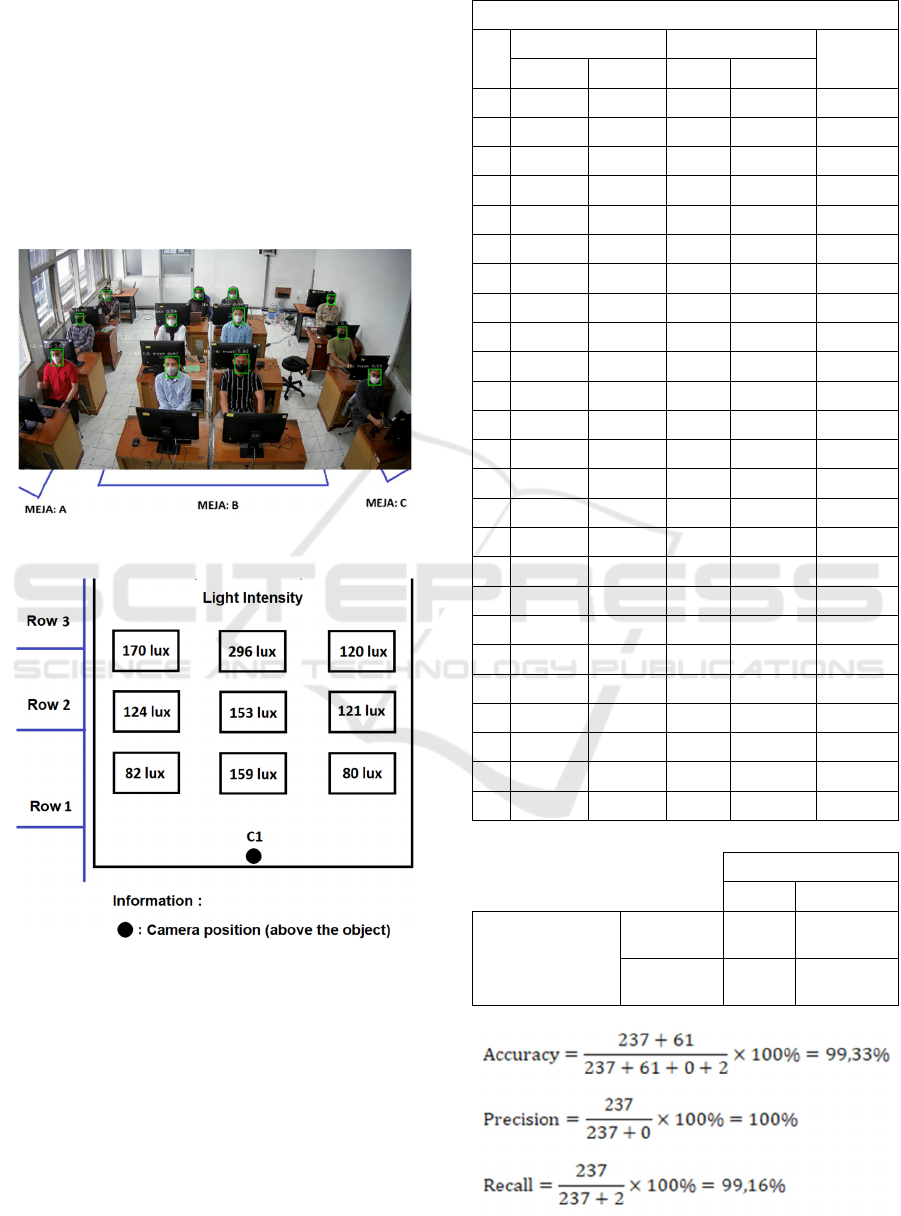

Figure 11: System testing environment.

Figure 12: Light intensity in each desk and camera position.

Table 7: Main Scheme Result Table.

Main Scheme

Total Objects Prediction

Result

mask no-mask mask no-mask

12 0 12 0

Correct

12 0 12 0

Correct

10 2 10 2

Correct

10 2 10 2

Correct

10 2 10 2

Correct

10 2 10 2

Correct

10 2 10 2

Correct

10 2 10 2

Correct

11 1 11 1

Correct

2 10 2

Correct

2 10 2

Correct

2 10 2

Correct

2 10 2

Correct

1 11 1

Correct

1 11 1

Correct

2 10 2

Correct

2 10 2

Correct

3 9 3

Correct

3 9 3

Correct

3 9 3

Correct

3 9 3

Correct

4 8 4

Correct

4 8 4

Correct

4 8 4

Correct

12 0 10

Wrong

Performance metric:

Actual Class

Mask No-Mask

Predicted class

Mask

237

No-Mask

Portable Face Mask Detector Using Jetson Nano and USB Webcam QHD Based on OpenCV

415

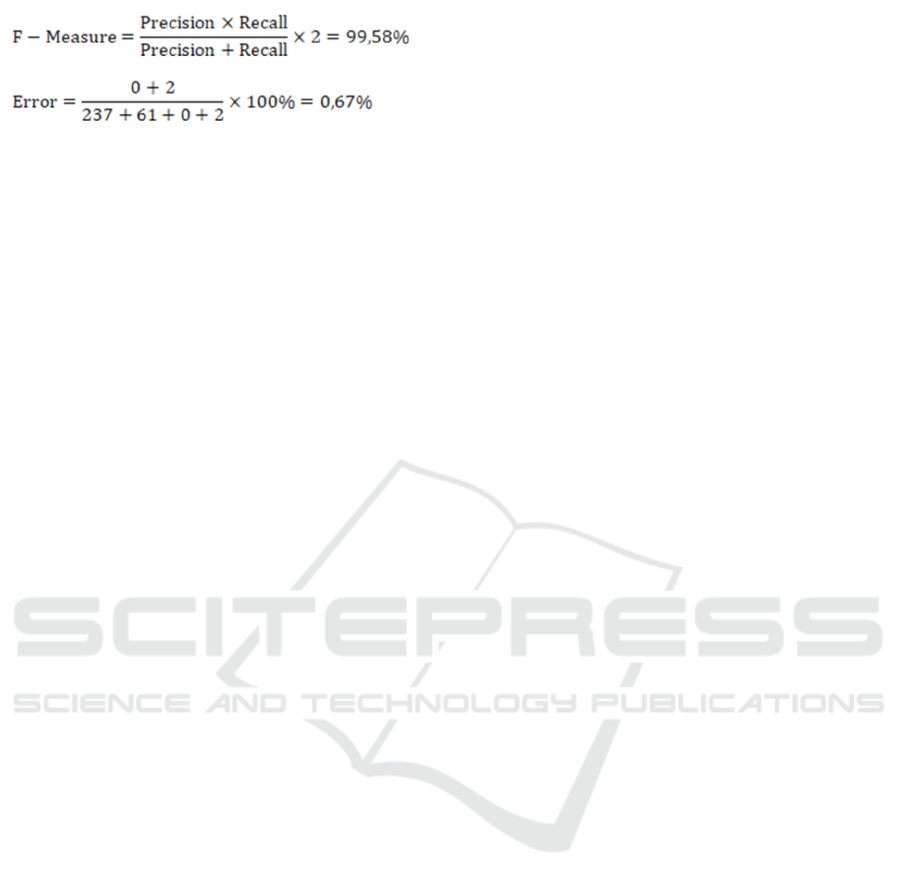

From the results of system testing using the confusion

matrix, the accuracy value is 99.33%, and the

precision value of mask-wearing detection is 100%.

While the average recall value is 99.16%. From the

precision data and recall data, the F-Measure value is

99.58% and the error is 0.67%.

5 CONCLUSIONS

Based on the system test results on the portable face

mask detector system during this research process,

there are the following conclusions:

1. Portable Face Mask Detector using jetson nano

has a warning feature every time a violation

occurs via USB Speaker, recording with video

output in .mp4 format and .jpg images, and

storing violation history in the database. The

system successfully detects the use of masks

when the distance between the object and the

camera varies from 2.68 m to 5.38 m and the

position of the object's face is 110˚ (right to left)

and 83.33˚ (up and down).

2. The system successfully detects objects in the

main scheme with an error value of 0,67%.

REFERENCES

Fatia Zulfa, & Henni Kusuma. (2020). Upaya Program

Balai Edukasi Corona Berbasis Media Komunikasi

Dalam Pencegahan Penyebaran Covid-19. Jurnal

Abdimas Kesehatan Perintis, 2(1), 17–24.

https://www.jurnal.stikesperintis.ac.id/index.php/JAK

P/article/view/445/251

Jayaweera, M., Perera, H., Gunawardana, B., &

Manatunge, J. (2020). Transmission of COVID-19

virus by droplets and aerosols: A critical review on the

unresolved dichotomy. In Environmental Research

(Vol. 188). Academic Press Inc. https://doi.org/10.10

16/j.envres.2020.109819

Jian, W., & Lang, L. (2021). Face mask detection based on

Transfer learning and PP-YOLO. 2021 IEEE 2nd

International Conference on Big Data, Artificial

Intelligence and Internet of Things Engineering,

ICBAIE 2021, 106–109. https://doi.org/10.1109/

ICBAIE52039.2021.9389953

Naftali, M. G., Sulistyawan, J. S., & Julian, K. (2022).

Comparison of Object Detection Algorithms for Street-

level Objects. ArXiv.Org. http://arxiv.org/abs/2208.113

Pooja, T., Chandra Mouli, B., Sri, D., Harika, L.,

Yoganand, B., & Hemanjali, N. (2021). Face Mask

Detection Using Jetson Nano. International Research

Journal of Modernization in Engineering Technology

and Science. www.irjmets.com

Pranav Adarsh, Pratibha Rathi, & Manoj Kumar. (2020).

YOLO v3-Tiny: Object Detection and Recognition

using one stage improved model.

Redmon, J., Divvala, S., Girshick, R., & Farhadi, A. (n.d.).

You Only Look Once: Unified, Real-Time Object

Detection. http://pjreddie.com/yolo/

Supriyanto, H., Nugraha, W., & Febianto, H. (2021). Face

Mask Detector Using USB Webcam WC300 BASED

ON OPENCV. 1–6.

Susilowati, E., Meiranny, A., & Salsabilla, D. (2021). ISPA

DAN FAKTOR PENYEBABNYA. Proceedings

National Seminar, 161–177. https://doi.org/103.154.

143.189

World Health Organization. (2021). Covid-19 Weekly

Epidemiological Update.

Wu, Y. C., Chen, C. S., & Chan, Y. J. (2020). The outbreak

of COVID-19: An overview. In Journal of the Chinese

Medical Association (Vol. 83, Issue 3, pp. 217–220).

Wolters Kluwer Health. https://doi.org/10.1097/

JCMA.0000000000000270

World Health Organization. (2019). The WHO special

initiative for mental health (2019-2023): universal

health coverage for mental health (No.

WHO/MSD/19.1). World Health Organization.

iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science

416
