The Design and Development of Electronic Text Natural Language

Processing System Based on Deep Learning

Dan Liu

, Jianmin Hao

and Jiayi Li

School of big data and artificial intelligence, Dalian University of Finance and Economics, Dalian, Liaoning, China

Keywords: Natural Language Processing (NLP), Deep Learning Model, Fasttext, Hadoop, Electronic Text

Classification.

Abstract: In this paper, the author takes the upstream task text classification of natural language processing as the

research object, and completes the collection, cleaning and distributed storage processing of electronic texts

with the help of HDHF and HBase components under Hadoop cluster. The MapReduce component is used

to call the deep learning algorithm FastText to complete the supervised text classification operation, and

finally Echarts technology is selected to show the classification results in the form of charts. Besides, the

running environment of the whole text classification process is Java environment, and the server side will be

built according to the Spring framework, so as to ensure that all API data interfaces can be encapsulated and

called reasonably, thus forming the electronic text natural language processing system on the Web side. The

system will quickly realize the capture, cleaning, classification and visualization of electronic text

information, reduce the problem of information overload in the downstream task execution of natural

language, and improve the information retrieval efficiency.

https://orcid.org/0000-0003-3144-9401

https://orcid.org/0000-0002-1283-1245

https://orcid.org/0000-0003-0360-1752

1 INTRODUCTION

With the rapid development and wide application of

computer and network information technology, the

information resources on the Web are becoming

diversified and quantified. The Web service with

electronic text as the main form appears in different

types of cyberspace, and becomes the most

important information acquisition channel in

people's daily life. According to statistics, as of June,

2021, there are 4.22 million websites in China, and

the text content accounts for more than 87% of the

web content. The development level of the Internet

industry is still at a high level, and the penetration

rate of the industry is gradually increasing. At the

same time, as users, our demand for network

functions is increasing, and the single passive

information service is gradually changing to the

active search, analysis and interpretation service.

Therefore, how to effectively and quickly acquire

the required and available knowledge from the vast

network information resources has become the main

research topic in recent years, and a new technology:

electronic text mining has been formed. (Li, 2015)

The main contents of electronic text mining

include text information clustering, classification,

sentiment analysis and interpretation, and visual

expression of final results. The electronic text

classification task is the main application direction

of the application, and its realization process

involves many steps such as text information

collection, preprocessing, feature extraction,

classification model construction, and classification

result display. As a data object, Web electronic text

has many characteristics, such as large volume, easy

access, unstructured, dynamic and difficult to mark,

and its complexity far exceeds that of general static

text documents. The traditional electronic text

classification is mostly done by combining text

feature analysis with shallow machine learning, but

there are some shortcomings in accuracy and

convenience in the process of classification. In view

of this, this paper holds that the essence of electronic

text mining is a research direction of Natural

Liu, D., Hao, J. and Li, J.

The Design and Development of Electronic Text Natural Language Processing System Based on Deep Learning.

DOI: 10.5220/0011909000003613

In Proceedings of the 2nd International Conference on New Media Development and Modernized Education (NMDME 2022), pages 197-202

ISBN: 978-989-758-630-9

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

197

Language Processing and a sub-field of artificial

intelligence. The deep learning model can be used to

construct feature text vectors to accurately express

the word meaning and semantic information in

electronic texts, so as to effectively improve the

classification accuracy of electronic texts. (Che,

2019) According to the actual application

requirements, Hadoop cluster will be used to capture

and distribute the electronic text data on the Internet,

MapReduce will be used to call FastText, and

Echarts technology will be used to present the

classification results, so as to design and implement

an electronic text classification system integrating

data collection, preprocessing, data classification

and visual display. The test and actual simulation

show that the system can improve the efficiency of

electronic text classification with excellent

performance and convenient operation, and is

suitable for various scenarios of large-scale

electronic text classification.

2 OVERVIEW OF KEY

TECHNOLOGIES

2.1 Natural Language Processing

The Natural Language Processing (NLP) is an

important direction in the fields of computer science

and artificial intelligence. As an interdisciplinary

subject, the research content involves linguistics,

computer science, mathematics, statistics and other

fields, aiming at realizing human-computer

interaction and communication with natural

language as the medium. It means that all kinds of

software applications are used to process the

information of the form, sound, meaning and so on

of natural language, through input, recognition,

analysis, understanding, generation and output, so

that computers can "understand and understand"

human language, expand the application field of

computers, and replace humans to complete some

work. (He, 2020)

With the rapid development of artificial

intelligence, the application scenarios and fields of

natural language processing are constantly enriched.

The common fields include text information

retrieval, machine intelligent translation, text

classification mining, information extraction and

filtering, speech recognition and generation,

automatic question answering and dialogue, etc.

Among them, text classification is a typical problem

in the field of natural language processing, and most

of the tasks of natural language processing can be

regarded as a classification task, which is in the

upstream stage in the field of natural language

processing research. Text classification can not only

provide necessary preconditions for research in other

fields, but also directly affect the practical

application effect of natural language processing

downstream.

In the initial stage of text classification, expert

rules are mostly used to complete the classification

operation, which requires a lot of human work to

reason and judge, and human factors are

uncontrollable, so it does not have good

expansibility. However, with the rise of machine

learning, text classification has entered the statistical

era, relying on the method of text feature analysis

combined with shallow-level machine learning.

Although the work efficiency, cost control and

application expansibility have been significantly

improved, it still can't keep up with people's demand

for fineness and accuracy. Until the emergence of

deep learning technology, coupled with the

substantial improvement of computer hardware

capabilities, it has greatly promoted the development

of natural language processing and further expanded

the application scope of text classification.

2.2 Deep Learning Model

The deep learning technology based on neural

network architecture is a branch of machine

learning. Its essence is to make computers perform

specific tasks by imitating the way humans acquire

and apply knowledge. (Han, 2021) At present, deep

learning model has gradually become the

mainstream technology for text classification. The

method of constructing feature text vectors based on

deep learning analysis model can accurately express

the word meaning and semantic information in the

text, and automatically acquire the feature

expression ability by virtue of its excellent network

structure, thus avoiding the tedious work of

manually designing rules and features, and realizing

end-to-end problem solving. In this paper, according

to the characteristics of electronic text, FastText

deep learning model is selected to complete text

classification. The application advantage of FAST is

that it is suitable for a large amount of data samples

and supports multilingual expression, and the overall

training speed is far FastText than that of the same

type model. The core principles include model

architecture, hierarchical SoftMax and N-gram

features. Among them, the FastText model

architecture can predict and classify the whole text

NMDME 2022 - The International Conference on New Media Development and Modernized Education

198

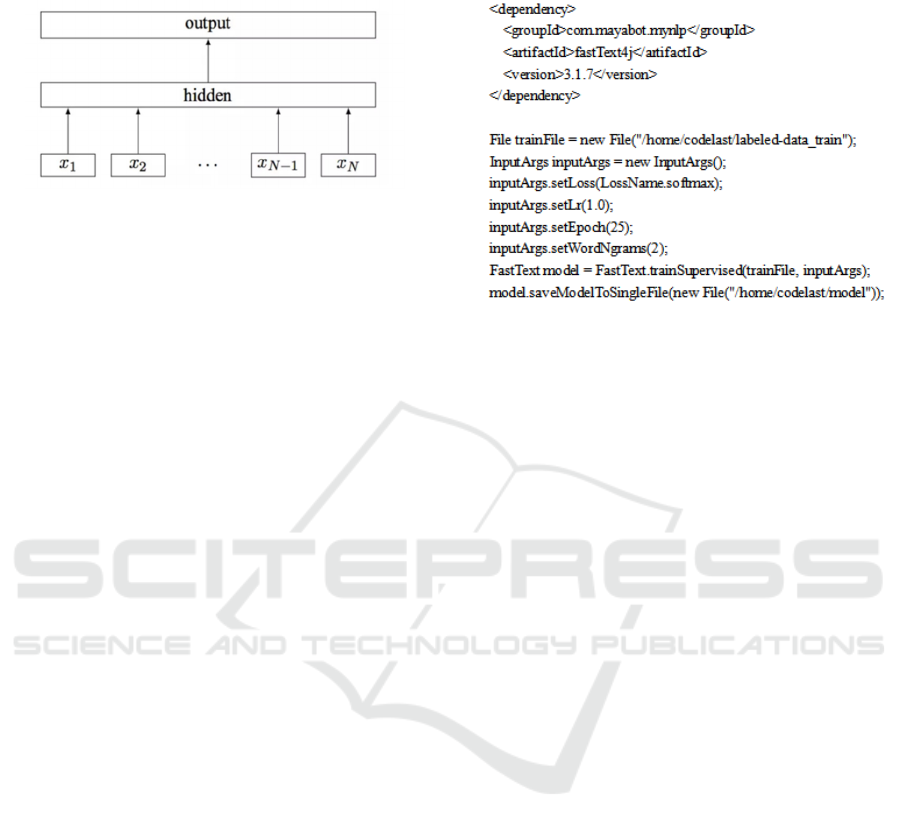

as a feature, as shown in Figure 1, which is its model

architecture.

Figure 1: FastText model architecture

2.3 Development Process

According to the above application requirements,

complete the configuration and deployment of the

development environment of electronic text natural

language processing system. The development

content of the system is divided into two parts. One

is the collection, pre-processing and distributed

storage of electronic data under Hadoop cluster

architecture, and the MapReduce is used to call

FastText model to complete the electronic text

classification operation. The other is to use Spring

framework to complete the development of the

server side of the system under the Java

development environment, realize the encapsulation

of each functional module of the system, and

visually display the final classification results.

Firstly, Hadoop cluster architecture needs a lot of

software and hardware as support. The operating

system is Linux, CentOS 6.7 and JDK 1.8.

According to the application requirements of the

system, Hadoop cluster will be set to three nodes,

named Master, Slave1 and Slave2 respectively.

Hadoop version is 2.7.7, and components such as

Yarn, HDFS, Zookeeper, HBase, etc. are also

deployed in each node. Under Hadoop architecture,

the system uses Scrapy crawler tool to grab the web

page content to realize text information collection.

After the collection, the tasks of MapReduce will be

segmented, and the semi-structured or unstructured

web page text information will be reasonably

preprocessed and converted into structured data,

which will be stored in HDFS or HBase.

For the FastText model, the Python package

supported by it can't be directly installed under

Hadoop architecture, so it is necessary to use

"FastText4j" in Java version to load MapReduce-job

in Java environment. The introduction and training

of the FastText4j model is shown in Figure 2.

During the implementation process, it is necessary to

introduce corresponding dependencies into Maven

project and complete model training. The key code

is shown in Figure 1.

Figure 2: Introduction and training of the FastText4j

model

Secondly, after the FastText model completes the

text classification, the system will support the users

to realize the visual display of the classification

results through the operation on the Web side. The

Web server operating system is Windows 10.0, the

JDK version of the development kit is 1.8, the Web

server is Apache Tomcat 9.0, the Java integrated

development tool is IntelliJ IDEA 2019, the project

management tool Maven 3.5.0, and the database is

MySql 8.0. Choose to create a maven-archpetype-

webapp in IntelliJ IDEA, and introduce several jar

packages such as J2EE, Mysql and Spring

Framework. Then select Add Spring Framework to

complete the server-side construction. For the visual

display of the final result, it will be realized by

Echarts technology, that is, Echarts.js will be

introduced into IntelliJ IDEA, and the module loader

configuration and chart path setting will be

completed. With the introduction of the above key

technical theories, the overall environment of the

system development, the configuration of related

software and tools are determined, and the technical

feasibility of the overall project of the electronic text

natural language processing system is also clarified.

3 REQUIREMENT ANALYSIS

3.1 System Function Analysis

Aiming at the shortcomings of traditional machine

learning classification algorithm in electronic text

classification, this system will complete the

collection, cleaning, storage, classification and

processing of electronic text by taking advantage of

The Design and Development of Electronic Text Natural Language Processing System Based on Deep Learning

199

the advantages of FastText, a deep learning

classification algorithm model, and combining

HDHF, HBase and MapReduce components under

Hadoop framework. And the whole process is

integrated and encapsulated in Java environment to

form a standard Web application, which is

convenient for users to quickly, conveniently and

conveniently realize the classification task of a large

number of electronic texts. The system not only

effectively improves the efficiency of electronic text

classification, but also further expands the

application scenarios of electronic text classification

technology. The system will support users to

complete account registration by submitting

information, and complete the login and use of the

system with unique identification information.

According to the actual needs of users and the

process of text mining, each functional module is

designed and implemented.

3.2 Overall Design

The electronic natural language processing system

adopts B/S architecture and is developed based on

MVC design pattern. According to the layered

design idea, the system will be divided into standard

five-layer architecture by using the Spring

framework under J2EE specification, which are view

layer, control layer, business logic layer, data access

layer and data storage layer. The view layer, which

is composed of several Web pages, is the interface

of human-computer interaction, and is mainly

realized by JSP technology. The core function of the

control layer is to accept the user's request, call the

business processing object according to the request,

and then return the corresponding processing result

to the view layer for display after the business

processing object is executed. The business logic

layer is the key to realize the functions of the whole

system, and is responsible for the processing of the

specific business logic of the system. The design of

data access layer aims to realize the interaction

between business processing logic and data storage

layer, so that business logic layer can obtain data

services better. (Zhou, 2016)

4 FUNCTIONAL

IMPLEMENTATION

When the system users log in for the first time, they

need to complete identity registration and real-name

registration system authentication, and use the

unique account information to log in and use the

system. The system supports hashing algorithm to

encrypt user password, which is used as

authentication method to complete user login

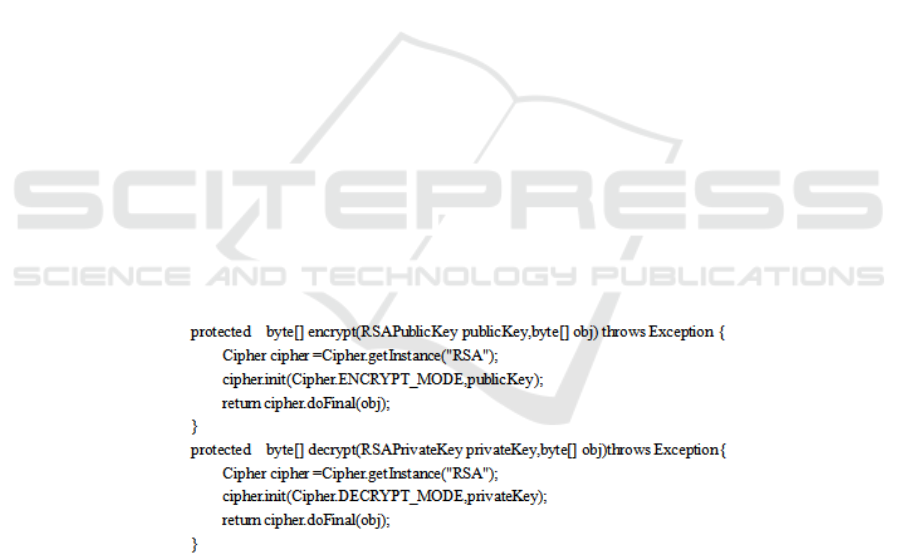

authentication. The key code of implementing RSA

encryption algorithm in Java language is shown in

Figure 3. After successful login, the system will

automatically jump to the home page of the system,

and select the corresponding function module in the

navigation bar of the system function.

Figure 3: RSA algorithm implementation key code

4.1 Text data collection

After entering the system, users will gradually

complete all the operations of electronic text

classification according to the operation guide. In

the process of text data collection, the system

supports Scrapy crawler tool to achieve hierarchical

crawling of electronic texts on the Web. In the

address box of the user interface, enter the website

address, click to get electronic text data, and the

system can automatically crawl the relevant

information, and after screening, write it into HDFS

or HBase under Hadoop framework to realize the

storage of electronic text information.

NMDME 2022 - The International Conference on New Media Development and Modernized Education

200

4.2 Pretreatment

In the preprocessing stage, the system will perform

text segmentation, stop words removal, text feature

extraction and other operations on the acquired text

data. The words in a sentence are aggregated by N-

gram after word segmentation, and the

corresponding token is established for each phrase,

and the combination between phrases also has its

own token. While in text feature extraction, FastText

uses Word2vec combined with N-gram model to

train Word embedding to produce feature word

vectors. (Ma, 2019)

4.3 Text Classification

Under this function module, the system takes the

preprocessed text sequence as the input content of

the classification algorithm, and carries out

classified storage operation. The system

automatically loads the trained model through

MapReduce module, and puts the model into

distributed cache for distribution. The key code of

model loading and test effect is shown in Figure 4.

The classification results will output the Label label,

and the storage of the classification results will be

completed at the same time. After the simulation

test, the FastText classification algorithm model

achieves an accuracy rate of 80.447% when dealing

with the whole content or single sentence of

electronic text. Compared with the traditional

machine learning algorithms such as Random Forest,

Naive Bayes and Support Vector Machine, the

overall effect is in line with the system research

expectation, and the specific results are shown in

Table 1.

Figure 4: The MapReduce Job loads the FastText model and tests the effect

Table 1: Performance comparison of FastText and other algorithms

Random Forest Naive Bayes Support Vector Machine FastText

Precision (%) 71.821 66.181 77.411 80.447

Training time 6.553 1.081 44.631 110.633

Forecast time 0.258 0.399 0.281 5.094

4.4 Visual Presentation

We use the visual drawing tool of Echarts to

complete the rendering of electronic text

classification results. According to different feature

dimensions, the classification results are sorted

according to the quantity, and the sorting results are

displayed in a suitable chart. There are many kinds

of charts of Echarts, including line charts, pie charts,

radar charts, etc. Besides, in the front-end page

design, Ajax will also be used to implement the data

refresh function. Ajax asynchronous refresh enables

the data to be loaded dynamically, so as to present

the dynamic refresh effect of data charts.

5 CONCLUSIONS

In this paper, electronic text classification is taken as

the research object, aiming at many shortcomings of

the current traditional electronic text classification in

the practical application process, and with the help

of the functional advantages of deep learning model,

the electronic text natural language processing

system is built under the Java language environment

with FastText model as the core and Hadoop cluster

processing framework as the auxiliary. It can

quickly capture, clean, classify and visualize

electronic text information, reduce the problem of

information overload caused by the downstream task

execution of natural language, and improve the

information retrieval efficiency.

REFERENCES

Che Qingxun (2019). The Design and Implementation of

Text Processing System Based on Deep Learning.

Huazhong University of Science and Technology.05.

The Design and Development of Electronic Text Natural Language Processing System Based on Deep Learning

201

Han Chong, Wang Junli and so on (2021). A Survey of

Deep Learning Models Based on Neuroevolution.

Acta Electronica Sinica.02:373-378.

He Kai (2020). The Research and Application of Text

Classification Based on Natural Language Processing.

Nanjing University of Posts and

Telecommunications.12.

Li Xiaodi (2015). The Research and Application of Web

Mining Technology. Beijing Jiaotong University06.

Ma Yu. The Research of News Text Classification Based

on fastText and Its Application in Agricultural News.

Jilin University.2019.05.

Zhou Yanling (2016). Exploration and Research of WEB

Application Development Based on Spring MVC

Framework. Science Mosaic.06:25-28.

NMDME 2022 - The International Conference on New Media Development and Modernized Education

202
