An Error Detection and Tolerance Framework for Task Parallel

Applications on High Performance Computing Systems

Yanfei Fang

, Enming Dong

, Yanbing Li

, Qi Liu

, Fengbin Qi

and Peibing Du

National Research Center of Parallel Computer Engineering and Technology, Beijing 100190, China

Northwest Institute of Nuclear Technology, Xian 710024, China

Keywords: Error Detection, Fault Tolerance, High Performance Computing, Task Parallel Applications.

Abstract: With the high performance computing capability entering the E-level era, the computing scale of the system

reaches more than 10 million cores. The mean time between failures of the system is short, which brings great

challenges to the reliability of the system. Single processor failure is a common system failure. If the failure

can be detected by the system, system-level fault tolerance can be implemented, and fault tolerant processing

can be performed through technologies such as checkpoint rollback. However, there are single processor faults

that cannot be detected by the system. These faults are manifested as wrong operation results, which cannot

be detected by the system. To solve the above problems, an error detection and fault tolerance framework for

task parallel applications is proposed. The framework consists of three functions: dynamic task scheduling,

error detection, and fault tolerance. During the running process of task parallel applications, error detection is

actively initiate. When a node failure is detected, the failed node is discarded. And tasks assigned to the node

since the last checkpoint are reassigned to other healthy nodes. The experimental results show that the

framework can effectively detect node failures. The fault tolerance can be performed without interrupting the

operation of the project, effectively avoiding the time cost caused by the checkpoint rollback technology.

1 INTRODUCTION

With the increasing demand for high performance

computing systems in important fields such as

national defense, scientific research, and finance,

high performance computing technology has

developed rapidly, and the scale of parallel systems

has become increasingly large. However, with the

expansion of the system scale and the complexity of

the system design, the mean time between failure

(MTBF) of the system decreases gradually, which

brings serious challenges to the system reliability.

Error detection and fault tolerance are important

foundations for maintaining the reliability of high

performance computing systems. Error detection

plays a key role in fault management. Some common

system faults can be detected by hardware and

maintenance software, but some node faults cannot be

detected. If the system cannot detect the node

operation faults, once the node operation error occurs

during the application running process, it is likely to

affect the results of the entire project, especially for

large-scale parallel applications that need to run for

days or even weeks. Therefore, low-overhead error

detection and fault tolerance mechanisms can reduce

the impact of failures on parallel applications, and are

of great significance to improving the robustness,

performance, and system availability of parallel

applications.

The paper proposes a fault detection and fault

tolerance framework for task parallel applications.

The framework can regularly detect the health of

nodes, find fault nodes, and recycle and reassign tasks

on the nodes without interrupting the project, which

can greatly reduce fault tolerance cost.

2 RELATED WORKS

2.1 Fault Tolerance Technology

Fault tolerance technology mainly includes three

aspects: error detection, fault diagnosis and fault

recovery. Error detection and fault recovery are

related to the work of the paper.

Error detection can be divided into transient error

and permanent error detection. Transient error

detection and fault tolerance mainly relies on repeated

202

Fang, Y., Dong, E., Li, Y., Liu, Q., Qi, F. and Du, P.

An Error Detection and Tolerance Framework for Task Parallel Applications on High Performance Computing Systems.

DOI: 10.5220/0011917800003612

In Proceedings of the 3rd International Symposium on Automation, Information and Computing (ISAIC 2022), pages 202-208

ISBN: 978-989-758-622-4; ISSN: 2975-9463

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

execution and comparison. According to the

replicated objects, transient error detection

techniques during processing can be divided into

instruction-level, thread-level and application-level

fault tolerance.

EDDI (Oh et al., 2002) and SWIFT (Reis et al.,

2005) are typical representatives of instruction-level

fault tolerance, which copy the instructions in the

original program at compile time, and insert

comparison instructions at appropriate locations to

detect errors. Thread-level fault tolerance method,

like AR-SMT (Rotenberg E, 1999), SRT (Reinhardt

et al., 2000) and CRT (Mukherjee et al., 2002), etc.,

use more than two hardware threads or cores to

execute the same task. A specific cache is added to

the processor to store the execution results of the two

threads, to detect errors by comparing the execution

results. Application-level fault tolerance method, like

PLR (Shye A, et al., 2009), performs replication and

comparison at a higher software level, such as

copying a process into multiple redundant processes

for concurrent execution, and then comparing the

program output.

Permanent error detection techniques can be

divided into two categories. One is the hardware

module fault detection technology at the micro-

architecture layer, which is often used in the design

of reconfigurable processors. The other is the

detection of node faults in high performance systems.

Since the MTBF decreases sharply, the node faults

are common in the system.

However, repeated execution may cost too much

time, which is not adopted by high performance

computing applications. High performance

computing systems mainly screen node operation

errors based on the screening point program, and

screen out the wrong points in advance, but the

screening program cannot cover all subject situations,

and errors during applications execution cannot be

found.

Error recovery techniques can be divided into

two categories: forward error recovery and backward

error recovery.

Forward error recovery tries to correct the error

after the error is detected and continue to execute

forward without roll back to the state before the error

moment. Redundancy is the basic way to realize

forward error recovery. Three Modular Redundancy

(TMR) is a widely used FER technology, which uses

3 modules to perform the same operation, and then

selects the data through a majority voter at the output

to achieve fault tolerance, but this method requires 3

times the computing resources and the overhead is

large, so this method is generally not used in high

performance system.

Backward error recovery returns to the state

before the error occurred after an error is detected.

The widely used backward error recovery method is

checkpoint. According to the content of the storage

checkpoint, checkpoint technology can be divided

into system-level checkpoint and application-level

checkpoint technology (Bronevetsky et al., 2004;

Faisal et al., 2018). According to the medium of

storage checkpoint, it can be divided into disk-based

and diskless checkpoint technology (Chen, 2010;

Alshboul et al., 2019).

Usually, error detection and recovery techniques

are combined together to ensure the correctness of the

applications. A task-based parallel programming

model is proposed in (Wang et al., 2016), in which

work-stealing scheduling scheme supporting fault

tolerance is adopted to achieve dynamic load

balancing support fault tolerance.

2.2 Parallel Application Model and

Task Scheduling

Most parallel applications can be divided into two

categories: data parallelism and task parallelism. Task

parallel applications usually decompose the task into

many sub-tasks, divide the data set, and execute the

tasks and corresponding data in parallel on different

computing resources. Task parallel applications are

widely used in drug screening, genetic research,

cryptanalysis, nuclear simulation and other fields.

There is no correlation between subtasks, but the

calculation number of subtasks may vary

significantly. In large-scale environments, an

efficient load balancing mechanism is the key to

ensure application performance, and the results of

each subtask have an important impact on the overall

results of the project.

Corresponding to task parallel applications, task

division is divided into static division and dynamic

division (Mohit et al., 2019). In static division, each

computing node is statically divided into the same

number of tasks and executed separately. Dynamic

partitioningis to dynamically adjust the tasks of

computing resources according to the load of each

computing resource, including dynamic scheduling

with management nodes and task stealing (Dinan et

al., 2009), etc. In high performance computing,

dynamic task partitioning is generally used to enable

applications to more fully utilize computing

resources(He et al., 2016).

An Error Detection and Tolerance Framework for Task Parallel Applications on High Performance Computing Systems

203

3 THE ERROR DETECTION AND

FAULT TOLERANCE

FRAMEWORK

At present, high performance computing systems

mainly screen node operation errors based on the

screening point program, and screen out the wrong

points in advance, but this method has the following

shortcomings:1) The screening program cannot cover

all subject situations. 2) The screening program often

needs to run for a long time. The nodes cannot be

screened at all times, so some errors cannot be found

through screening.

In addition, the nodes of high performance

computer systems are interconnected through specific

hardware and high-speed networks. Most of the nodes

are homogeneous, and the node states have

similarities when performing computing tasks. In task

parallel applications, a typical mode is that each node

runs tasks independently, when all tasks are

completed, it communicates with other nodes to

complete the entire task cooperatively.

Based on the above characteristics of high

performance computing applications, an error

detection and fault tolerance framework for task

parallel applications is proposed for high

performance computing systems. The basic idea of

the framework is to use the dynamic task scheduling

feature to combine node screening with applications.

After a certain time interval, let the nodes in a fixed

area perform the same task, realize redundant

operations in the runtime phase, and carry out through

the reduction results. Correctness judgment is used to

detect whether there is a node failure. When a node

failure occurs, fault tolerance is performed by

recycling the tasks on the node and abandoning the

failed node.

3.1 Frame Structure

As shown in Figure 1, the framework first implements

the dynamic task scheduling module for task parallel

applications. On this basis, it implements the

functions of error detection and fault tolerance. Error

detection is mainly based on MPI messages. Fault

tolerance is supported by system components such as

the operating system and job management.

To achieve error detection and fault tolerance,

dynamic task scheduling must be implemented first

because:

1) Load balancing of large-scale high

performance computing systems is very important

and requires dynamic task scheduling;

2) Error detection needs to implement redundant

operations in the running phase, and for task parallel

applications, this redundancy can be achieved by

letting the computing nodes within a certain range

perform the same task, which can be done by assign

the same task to different nodes by the dynamic task

scheduling.

3) To achieve fault tolerance without interrupting

the project, a checkpoint recording mechanism, as

well as a task recovery and redistribution mechanism

are needed, which can be well supported by dynamic

task scheduling.

Figure 1: System Software Architecture of the Framework.

For applications running on high performance

computing systems, the framework implements task

scheduling, error detection, and fault tolerance. The

main processes are as follows:

Step1: Initialize. Divide all computing resources

into control nodes and computing nodes. Control

nodes initiate task scheduling, error detection and

fault tolerance.

Step2: Dynamic task scheduling. Control nodes

assign tasks, while computing nodes execute tasks

and report the completion of tasks.

Step3: Error detection. When the completed

tasks reach a certain number, the control node

initiates error detection. The computing nodes in a

certain area calculate the same task, and compare the

task results. If the results are correct, go to Step5. Else

if a node is found to be wrong, go to Step4;

Step4: Fault tolerance. Report fault node to job

management components and mark the faulty node.

Recycle the tasks executed after the last checkpoint in

the faulty node, and assign them to other healthy

nodes for execution.

Step5: Record the checkpoint. When it is

detected that all computing nodes are healthy and the

completed tasks reach a certain threshold, record the

checkpoint.

3.2 Dynamic Task Scheduling

The dynamic task scheduling module provides task

scheduling support for the framework. It adopts the

design idea of a partitioned hierarchical tree, as

shown in Figure 2. During initialization, all nodes

participating in the calculation are divided into

Task parallel applications

Dynamic

Task

Scheduling

Error detection and fault tolerance

Error detection Fault tolerance

Job management Operating system

ISAIC 2022 - International Symposium on Automation, Information and Computing

204

control nodes (root nodes) and operation nodes (leaf

nodes). In order to prevent a single control node from

intensively affecting performance, the hierarchical

idea is adopted, and the control nodes are divided into

a global master node and some regional master nodes.

The number of the regional master nodes is the same

to the number of the regions. The control node

performs task scheduling, and the leaf nodes perform

task operations. Node types are shown in table 1.

Figure 2: Diagram of dynamic task scheduling structure.

Table 1: Node types

Function t

e Tree t

e Node number

Control node Global master node

The first node of all

the computing

nodes

Regional master

nodes

The first node of

each region

Operation

nodes

Leaf node Nodes beside the

control node

Task scheduling is implemented based on MPI

messages. First, register the dynamic task message

type, which supports the following types of messages:

Task request message (TRM). When the non-

global master node finds that there are no tasks to be

completed locally, it sends a task request message to

the upper node, including the message request from

the leaf node to the regional master node, and the

message from the regional master node to the global

master node.

Task completion message (TCM). When the

non-global master node completes the task or task

package, it sends the task completion message to the

upper node, including the task completion message

from the leaf node to the regional master node and the

task completion message from the regional master

node to the global master node.

Task assignment message (TAM). When the

non-leaf node receives the task request message, it

will detect whether there are still tasks in the local

task pool, and if so, it will send the task assignment

message to the requester, including task assignment

message from the regional master node to the leaf

node and from the global master node to the regional

master node;

Task end message (TEM). When all tasks have

been completed, the global master node informs the

regional master nodes that the task is completed, and

the regional master nodes inform the leaf nodes that

the task is completed.

The main process of dynamic task scheduling is

as follows:

Step1. Initialize hierarchical environment.

Divide all computing resources into global master

nodes, regional master nodes and leaf nodes. The

global master node initializes the global task pool for

all tasks, the regional master node initial task pool is

empty, and the leaf nodes initially have no tasks.

Step2. Start the task application. The leaf node

detects that the task pool is empty and applies for the

tasks from the regional master node. After the

regional master node receives the task application

request, it checks that the regional task pool is empty,

and applies for the task from the global master node.

Step3. Start task allocation. After the global

master node receives the task request from the

regional master node, it allocates the task block to the

regional master node and records it. After the regional

master node receives the task block from the global

master node, it records it to the regional task pool and

records it, then assign tasks to leaf nodes.

Step4. Execute the tasks. After the leaf node

receives the task assignment from the regional master

node, it starts to execute the tasks.

Step5. Complete the execution and report. After

the leaf node completes the task, it reports to the

regional master node. After the regional master node

completes the task block, it reports to the global

master node, and the global master node updates the

task pool.

In the scheduling process, the task prefetching

strategy is adopted, so that the computing overhead

with the leaf nodes covers the message overhead of

the task request, which greatly improves the

performance of task scheduling.

3.3 Error Detection

The goal of error detection and fault tolerance is to

find faulty nodes in time, and to ensure that the

project continues to run correctly at the least cost.

Global master node

Regional master node

Task complete message

Leaf node Leaf node

Task assign message

Task request message

Leaf node

...

Region0

Regions

An Error Detection and Tolerance Framework for Task Parallel Applications on High Performance Computing Systems

205

Error detection and fault tolerance are combined

with dynamic task scheduling. First, a checkpoint

mechanism is introduced into the dynamic task

scheduling module. The checkpointing operation is

performed by the global master node, and a certain

threshold is set for the frequency of the checkpointing

operation. When the completed tasks reach the

threshold, the completed tasks are recorded. When an

inevitable error occurs in the program, fault tolerance

can be performed through checkpoints. Additional

message types for error detection need to be added,

including:

Initiate error detection (IED). IED is initiated

by the global master node. When the global master

node needs to update the breakpoint file, it sends an

error detection message to each regional master node;

Error detection completed (EDC). When the

regional master node receives the error detection

message sent by the global master node, it sends the

same task to all nodes in the region, and after reducing

the result, sends a detection completed message to the

global master node.

Global master node

Regional master node

Error detection complete

Leaf node Leaf node

Initiate error detection

Leaf node

...

Region0

Region

Figure 3. Diagram of error detection process

The mechanism of error detection function is

shown in Figure 3, which is divided into the following

steps.

Step1. Start error detection. Each time before the

checkpoint file needs to be updated, the global master

node sends an error detection message to the regional

master node.

Step2. Assign the same task to all the leaf nodes

in the same region. After receiving the error detection

message, the regional master node sends the same

task to the leaf nodes in the region.

Step3. Task execution. The leaf node executes the

task and records the result.

Step4. Reduce the execution results and check if

there exists error node in the region. The regional

master node reduces the task results of each leaf node,

checks all the results, and identifies whether there is

any error node. If an error node is found, it enters the

fault tolerance mechanism, otherwise it informs the

global master node that the nodes in the region are

healthy.

Step5. Finish error detection. After receiving the

health information of all regions, the global master

node starts to record the checkpoint file.

The reason why the detection is started before the

checkpoint is recorded is to detect whether there is

any node error between the last checkpoint record and

the current checkpoint record.

The cost of error detection is analysed below.

The average time of a single task is set to t, the total

task number is N, and the number of tasks to be

completed by each computing node when a

checkpoint is recorded is M. If the task execution of

nodes in the area is not synchronized, Because the

detection needs to perform a reduction operation, the

detection overhead is at most the time overhead of

two tasks, that is, the time overhead is at most 2Nt/M,

where M can be adjusted according to system

conditions.

3.4 Fault Tolerance

In order to achieve software fault tolerance, each node

will maintain a node status queue. Initially, all node

information is 0, indicating that the node is healthy.

When a node error is found, the information in the

status queue will be set to 1, indicating that the node

is faulty. When the faulty node is detected by the error

detection function, local fault tolerance and global

fault tolerance can be used for fault tolerance

according to the type of subject.

Local fault tolerance. If the faulty node will not

participate in global operations since the time the

error occurs, such as global protocol, global

synchronization, etc., local fault tolerance can be

used. The regional master node that detects the error

will notify the leaf nodes in the area.

Global fault tolerance. If the faulty node may

participate in global operations, such as global

protocol, global synchronization, etc., global fault

tolerance needs to be adopted. The regional master

node that detects the error will send a signal to the

operating system. The operating system will set the

node status to fault, and all other nodes are signalled

to be notified. After other nodes receive the signal,

they will set the status of the node in the node status

queue to fault, and all subsequent communication and

synchronization operations related to the faulty node

will be neglected.

The following describes the main steps of global

fault tolerance:

ISAIC 2022 - International Symposium on Automation, Information and Computing

206

Step1. Call operating system. After the regional

master node detects a node error, it calls the operating

system function interface to notify the operating

system of the faulty node information.

Step 2. Kick out the faulty nodes. After receiving

the faulty node information, the operating system

marks the faulty node, kicks it out of the job, and

sends a fault-tolerant signal to all the other healthy

nodes.

Step3. Mark the faulty node. After the healthy

node receives the signal from the operating system, it

updates the node status queue and marks the faulty

node.

Step4. Reassign tasks on the faulty node. The

regional master node reclaims all the tasks assigned

to the error node since the last update of the

breakpoint file and reassigns them. Then it sends the

detected exception message and the bitmap of the

reclaimed tasks to the global master node.

Step5. Update the bitmap of tasks. The global

master node starts the checkpoint file record after

updating the completed task information according to

the bitmap of the reclaimed tasks.

4 EXPERIMENTAL RESULTS

This section verifies the function and performance of

the proposed framework through experiments. The

main functions of the framework include task

scheduling, error detection and fault tolerance. Error

detection is mainly to detect operation errors that

cannot be detected by the system, so this experiment

mainly verifies the detection of such errors.

4.1 Experimental Verification

The experimental platform is the Sunway TaihuLight

supercomputer system (Dongarara, 2016). 64 CPUs

are used for testing. Each CPU contains 4 processes,

and each CPU has 64GB memory. The CPUs are

interconnected by a domestic network and can

communicate through MPI.

The experiment uses a task parallel application.

The total number of tasks N in the application can be

set from 2^13 to 2^15. The evaluation execution time

of each task is about 3 seconds. After each task is

completed, the task number and execution result will

be the output, and the execution result will be

reordered according to the task number. The rules for

reordering and deduplication are that, for all repeated

task results, the last output result is taken as the

correct result, and all other results are ignored.

The experimental method is as follows. First use

the correct node to execute the task using the static

task scheduling to generate the correct results. Then

sort the results by task number, and get the correct

result. Then execute the dynamic task scheduling

framework and get the result, sort the dynamic task

scheduling results. Compare the results, check the

correctness of the results, record the running time,

and check the performance. Then simulate node

errors, use the random node and random error mode,

enable error detection and fault tolerance, and reorder

all output results according to the task number.

Finally, the correct results are compared, the

correctness is checked, and the running time is

recorded.

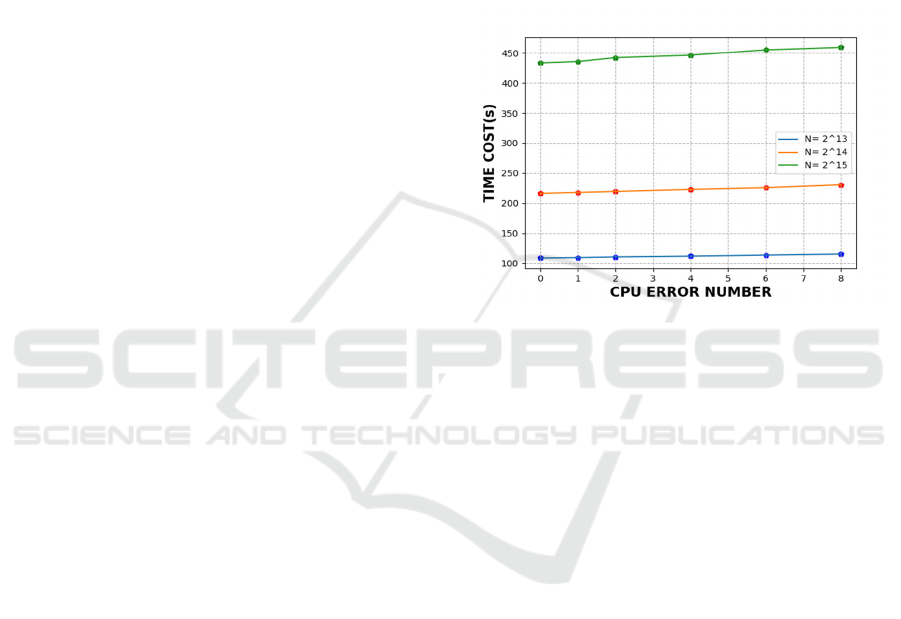

Figure 4. Performance of the example application with

different CPU error numbers

4.2 Experimental Results and Analysis

First, the correctness of error detection and fault

tolerance is verified. When the error detection and

fault tolerance mode is turned on, 1, 2, 4, 6, and 8

CPUs are randomly selected to make random errors.

The scheduling results and correct results are

consistent, indicating that the error detection and fault

tolerance mechanism designed in this paper is

effective. After 1, 2, 4, 6, and 8 CPU errors occur, the

running time of the entire program for different total

task number N is shown in figure 4. With the increase

of faulty CPUs, the entire time cost of the program

increases gradually, and the increased time is

basically linear with the increase of the faulty CPU,

which indicates that the time overhead of fault

tolerance is very small, and the main overhead is the

reduction of computational resources.

Table 2 shows the time cost of dynamic task

scheduling using static task allocation, dynamic task

scheduling without error detection, and dynamic task

scheduling with different checkpoint frequencies(W)

with error detection enabled. The total task number is

2^13. Basically, after error detection is enabled,

because error detection starts after the checkpoint

update is initiated, the error detection frequencies

increase gradually as W increases. Correspondingly

An Error Detection and Tolerance Framework for Task Parallel Applications on High Performance Computing Systems

207

the time cost increases as W increases, and the time

of each error detection is about the time of 2 tasks.

Table 2. Performance of the example application with static

task scheduling(a), dynamic task scheduling without erro

detection(b), dynamic task scheduling without error

detection(c) on different

checkpoint frequencies (W).

b c

(

W=1/2^12)

(W=1/2^11)

(W=1/2^10)

Time

cost(s)

98.7

99.4 108.6 121.9 142.8

Gap(s) 0

0.7 9.2 13.3 20.9

Detection

times

0 2 4 8

5 CONCLUSIONS

As the core function of fault management, error

detection and fault tolerance are of great significance

to improve the reliability of the system. In this paper,

an error detection and fault tolerance framework is

proposed for task parallel applications on high

performance computing systems. The framework

realizes the error detection function by periodically

leading the computing nodes to perform the same

tasks and reducing the results. The error detection

time interval can be dynamically controlled according

to the environmental conditions. Fault tolerance is

realized without stopping the running applications,

which effectively reduces the time caused by

checkpoint. The experimental results verify the

effectiveness of the framework proposed in this

paper.

ACKNOWLEDGEMENTS

The work was supported by the National Science

Foundation of China (No. 61907034), National Key

R&D Program of China(2021YFB0301100).

REFERENCES

Alshboul, M , Elnawawy, H, Elkhouly, R, Kimura, K, &

Yan, S. (2019). Efficient checkpointing with recompute

scheme for non-volatile main memory. ACM

Transactions on Architecture and Code Optimization,

16(2), 1-27.

Bronevetsky G, Marques D, Pingali K, Szwed PK, Schulz

M. (2004). Application-Level checkpointing for shared

memory programs. In: Proc. of the 11th Int’l Conf. on

Architectural Support for Programming Languages

and Operating Systems. New York: ACM Press, 235-

247.

Chen Z. (2010). Adaptive checkpointing. Journal of

Communications, 5(1):81-87.

Dinan J., Larkins, D B , Sadayappan, P, Krishnamoorthy,

S, & Nieplocha, J. (2009). Scalable work stealing.

Conference on High Performance Computing

Networking (pp.1).

Dongarara J. (2016). Report on the Sunway TaihuLight

sytem:UT-EECs-16-742. Knoxville, USA: University of

Tennessee.

Faisal, Shahzad, Jonas, Thies, Moritz, & Kreutzer, et al.

(2018). Craft: a library for easier application-level

checkpoint/restart and automatic fault tolerance. IEEE

Transactions on Parallel and Distributed Systems.

He W, Wei D, Quan J, Wu Wei, Qi F(2016). Dynamic Task

Scheduling Model and Fault-Tolerant via Queuing

Theory. Journal of Computer Research and

Development 53(6): 1271-1280(in Chinese).

Mohit K, Sharma S.C., Anubhav G, Singh S.P.(2019). A

comprehensive survey for scheduling techniques in

cloud computing. Journal of Network and Computer

Applications, 143, 1-33.

Mukherjee SS, Kontz M, Reinhardt SK. (2002). Detailed

design and evaluation of redundant multithreading

alternatives. In: Skadron K, ed. Proc. of the 29th Annual

Int’l Symp. on Computer Architecture. Washington:

IEEE Computer Society, 99 - 110.

Oh N, Shirvani PP, McCluskey EJ. (2002). Error detection

by duplicated instructions in super-scalar processors.

IEEE Trans. on Reliability, 51(1):63 - 75.

Reinhardt SK, Mukherjee SS. (2000). Transient fault

detection via simultaneous multithreading. In:

Berenbaum A, ed. Proc. of the 27th Annual Int’l Symp.

on Computer Architecture. New York: ACM Press, 25-

36.

Reis GA, Chang J, Vachharajani N, Rangan R, August DI.

(2005). SWIFT: Software implemented fault tolerance.

In: Conte T, ed. Proc. of the Int’l Symp. on Code

Generation and Optimization. Washington: IEEE

Computer Society, 243- 254.

Rotenberg E. (1999). AR-SMT: A microarchitectural

approach to fault tolerance in microprocessors. In:

Proc. of the 29th Annual Int’l Symp. on Fault-Tolerant

Computing. Madison: IEEE, 84- 91.

Shye A, Blomstedt J, Moseley T, Reddi VJ, Connors DA.

(2009). PLR: A software approach to transient fault

tolerance for multicore architectures. IEEE Trans. on

Dependable and Secure Computing,6(2):135-148.

Wang YZ, Chen X, Ji WX, Su Y, Wang XJ, Shi F. (2016).

Task-Based parallel programming model supporting

fault tolerance. Ruan Jian Xue Bao/Journal of Software,

27(7):1789- 1804 (in Chinese).

ISAIC 2022 - International Symposium on Automation, Information and Computing

208
