Multi-Domain Data Enhanced Network for Task-Oriented Dialogue

Yuanyuan Cai

, Yutong Shi

and Haitao Xiong

National Engineering Research Centre for Agri-Product Quality Traceability, Beijing Technology and Business

University, Beijing, China

School of International Economics and Management, Beijing Technology and Business University, Beijing, China

Keywords: Multi-Domain, Task-Oriented Dialogue, End-to-End, Transfer Learning, Neural Network.

Abstract: Intelligent dialogue system is a new approach to human-machine interaction, replacing highly repetitive and

standardized customer service. It has been applied widely for various purposes in many domains, such as

weather inquiry and hotel booking. However, the performance of dialogue systems is limited to domain-

specific data which is insufficient to train a high-quality dialogue model. To address this issue, we purpose a

multi-domain data enhanced neural model with an end-to-end framework. This model fuses integrated-

domain features and individual-domain features to improve the performance on dialogue generation in each

specific domain. The experimental results on the two datasets show that our dialogue model outperforms

existing methods, which indicates it has high flexibility in domains with small-scale data.

1 INTRODUCTION

As the core research in artificial intelligence, human-

machine dialogue technology is widely used in

various common scenarios, such as customer service

and intelligent assistants. Thus, it has attracted

extensive attention from academia and industry. For

the past few years, benefiting from the breakthrough

progress in natural language processing under the

wave of deep learning, more and more scholars have

applied deep learning to dialogue systems and

achieved new improvements. Generally speaking,

there are two kinds of dialogue systems according to

the application domain: open-domain and task-

oriented dialogue systems

(Bordes et al., 2016)

. Open-

domain dialogue is an essential branch of the dialogue

system, which refers to chat that is not limited to

topics and has no clear purpose for dialogue.

However, compared with the task-oriented dialogue,

it has strong randomness and uncertainty. Task-

oriented dialogue has a clear purpose, and the

speakers know exactly what they want the machine to

help them accomplish (Le and Mikolov, 2014).

Therefore, it is applied in various industries to help

users complete predetermined tasks or actions, such

https://orcid.org/0000-0002-1310-033X

https://orcid.org/0000-0003-3505-4925

as booking airline tickets, hotels, and restaurants,

which is the focus of our research.

Early researches mainly focus on pipeline-based

dialogue systems. In order to achieve task-oriented

dialogue generation, the pipeline-based dialogue

consists of three essential components(Wei et al.,

2018): The question will be processed in the first

module to extract the intent and the implicit

information. Then, the second module will update the

state according to the user intent and generate

corresponding system actions. The last module

converts the system actions into natural language.

However, the limits of pipeline-based methods are

obvious. It requires a lot of manual annotation for

each independent module. The errors of the upstream

modules will influence the downstream because of its

interdependence structure (Wei et al., 2018; Wen et

al., 2016). Therefore, in recent years, academia has

gradually studied modeling dialog systems in an end-

to-end manner to eliminate error accumulation in

conventional methods. Inspired by the recent success

of the recurrent neural network (RNN) (Chen et al.,

2017) and the memory network (Lei et al., 2018;

Madotto et al., 2018) in machine translation, most of

the newly task-oriented dialogue systems use a

sequence-to-sequence framework. It takes the

conversation as input, and converts the statement into

Cai, Y., Shi, Y. and Xiong, H.

Multi-Domain Data Enhanced Network for Task-Oriented Dialogue.

DOI: 10.5220/0011923700003612

In Proceedings of the 3rd International Symposium on Automation, Information and Computing (ISAIC 2022), pages 299-305

ISBN: 978-989-758-622-4; ISSN: 2975-9463

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

299

a latent feature representation, then generates a

response in a natural language. The end-to-end

dialogue system can directly generate responses

through the dialogue history based on the encoder-

decoder framework. It does not generate error

accumulation compared to the pipeline-based

method. However, it still has some problems that

need to be solved urgently. Most of end-to-end

dialogue systems can only generate responses based

on the dialogue history (Joshi et al., 2017). When the

training data is concentrated in a single domain, this

framework cannot adapt to other domains well, so the

response of the system is relatively slow, and it

cannot be adjusted according to the relevance of each

domain. Even if there are some multi-domain fusion

models, they are not very accurate in learning the

features of each domain.

To address the above issues, we further propose a

multi-domain data enhanced network (MDN), which

finely learn each domain's relevance and fully use

data from existing domains to establish dialogue

system in less-data domains. The MDN model

divides domains into groups and uses attention

mechanism to fuse the features of each domain to

obtain the individual-domain features. In addition, to

emphasize shared knowledge between different

domains, the MDN trains data of all domains to get

integrated-domain features, then combines them with

individual-domain features. Experiments show that

this structure captures the features of each domain

more accurately, and helps to improve the

effectiveness of each domain. The contributions of

the paper are summarized as follows:

 Our proposed model captures the correlations

between the current domain and relevant

domains to accomplish transfer learning, which

indicates it has high flexibility in emerging

domains.

 We apply an attention mechanism to capture

fine-grained correlations between different

domains.

 The experimental results on two public datasets

show that our proposed model outperforms the

previous models.

2 RELATED WORKS

The end-to-end neural network is being hotly debated

in contemporary academics and increasingly

establishing itself as promising research in dialog

systems. Earlier, scholars first proposed the theory of

applying end-to-end networks in dialogue system

models (Wen et al., 2016). According to the theory,

an end-to-end dialogue system based on memory

networks is proposed. (Bordes et al., 2016).

Subsequent studies have followed the experiment and

get deliverables phase by phase. For example, a

scalable sequence-to-sequence dialog framework

introduced a memory network for the encoder-

decoder framework (Lei et al., 2018). This storage

network is used to generate hidden vectors of session

content. Since then, end-to-end task-oriented

dialogue systems typically employ a Sequence-to-

Sequence model to generate system responses from

dialogue histories. (Raghu and Gupta, 2018; Williams

and Zipser, 1989; Serban, Sordoni et al., 2015; Park

and Kim, 2022). Based on the above two models, the

combination of memory network and sequence

structure, Mem2Seq is proposed (Madotto et al.,

2018). It uses global multi-hop attention for memory

retrieval and finally uses probability distribution to

generate dialogue responses in a sequence. At the

same time, the replication mechanism of human

dialogue history and knowledge base is added to the

generation process. A global-to-local memory pointer

network addresses the noise problem (Wu et al.

2019). The model adopts the framework of encoder-

decoder to generate a global memory pointer while

encoding, which is used in the knowledge base

retrieval process.

When the task-oriented dialogue system faces a

small amount of training data, its training effect will

be significantly reduced, because the dependence of

models on prior knowledge is too high, and the

adaptability to a new domain is too weak. Scholars

are increasingly turning their attention to building

less-data-driven dialogue systems. Researchers

analyze APIs beyond the domain scope and designed

a new method based on adaptive representation

learning, which can perform task-oriented dialogue

on a zero-shot dataset (Jin et al., 2021). In order to

solve the shortage and diversity of knowledge base, a

technical means (Kulhánek et al., 2021) reverses

translation to increase the variety of training data sets.

For multi-domain problems, the core concept is to

transfer domain knowledge while focusing on

specific domain information and shared domain

knowledge (Qin et al., 2019).

End-to-end task-based dialogue systems have

been extensively studied. In addition to the

underlying model architecture, the research direction

of end-to-end task-oriented dialogue systems is

gradually moving closer to multi-domain dialogue.

ISAIC 2022 - International Symposium on Automation, Information and Computing

300

3 MODEL

Our proposed model groups multiple domains and use

attention mechanism to accurately capture the fine-

grained correlation of the current input and each

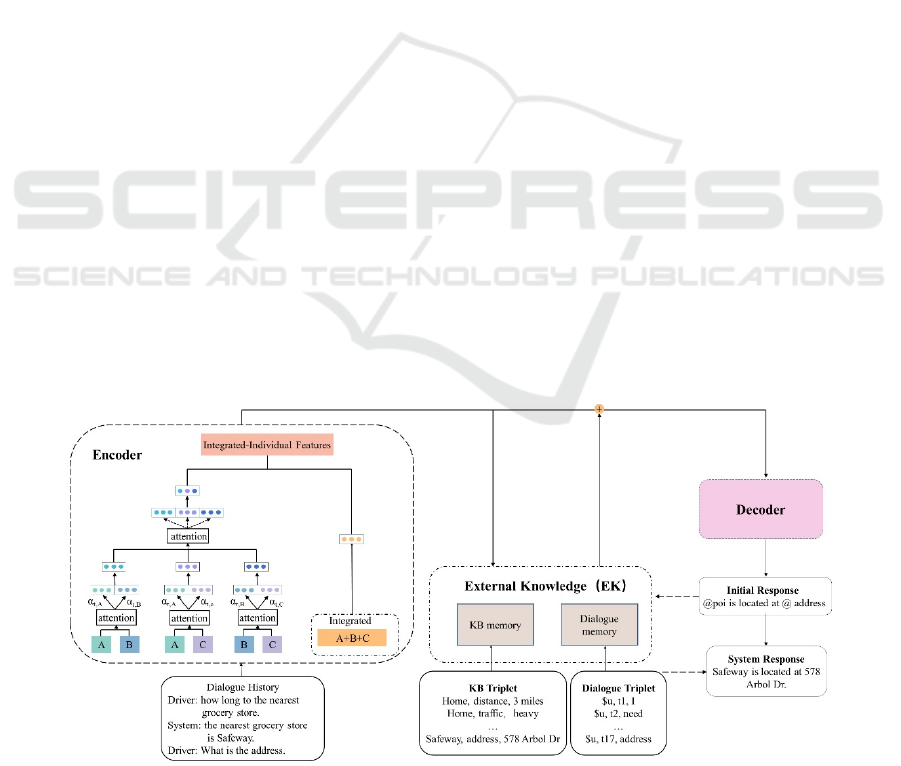

domain, which achieves transfer learning. As shown

in Figure 1, the MDN model consists of two parts:

encoder and decoder. First, the input sequence is

encoded to integrated-individual features through an

integrated encoder and several domain encoders.

Then the feature vector serves as a query vector to

search the external knowledge (which is composed of

knowledge base and memory). The filtered relevant

information from external knowledge is passed to the

decoder to guide the response generation. The

decoder generates a preliminary response with sketch

tags and searches the external knowledge again to get

the most potential word and replace sketch tags. To

better understand our method, we will elaborate the

construction of our decoder and encoder in 3.1-3.2,

respectively.

3.1 Encoder

To facilitate understanding, we can consider that there

are two types of encoders in the MDN model. One is

integrated encoder, which is trained by mixing data

from different domains, and the output features are

available to all domains. The other is domain encoder,

which is trained separately over each domain and

captures specific features of each domain. We group

domain encoders in pairs and perform both in-group

and out-group fusion to learn fine-grained

correlations between specific domain subsets and get

the individual-domain features. Finally, we fuse

integrated-domain features and individual-domain

features to obtain integrated-individual features.

Both encoders consist of a bi-directional gated

recurrent unit (GRU) (Chung et al., 2014). Encoders

encode the dialogue history to generate context-

sensitive hidden states

()

i,A enc 1

BiGRU ,

emb

hxh

−

)

As shown in Equation 1,

,iA

represents the

hidden state generated by A-domain encoder, where

()

emb

⋅

is the word embedding matrix. As shown in

Figure 1, the MDN uses the attention mechanism

(Guo et al., 2018) to fuse the features of domains A

and B. The same fusion occurs between domains A

and C, domains B and C. Compared with directly

fusing three domains, grouping them provides a more

focused understanding of their relationship and can

capture the fine-grained correlation between domains.

The following are the detailed instructions on how to

fuse the domain features in encoder. Suppose all

domain features at t timestep are represented as

𝒉

 ,









||

, |D| is the total amount of domains. The

mechanism takes

𝒉

 ,







as input and outputs the

attention weight score

𝛼

,

through softmax function,

which refers to the degree of relevance between input

and each domain.

()

enc ,

Softmax

=+hb

)

The feature vector of group AB is mixed by

domain A and B according to the weight score. The

final individual-domain feature is the optimal domain

fusion feature, generated by the output feature vectors

of the three groups in the same way.

Figure 1: The framework of our model.

Multi-Domain Data Enhanced Network for Task-Oriented Dialogue

301

Unlike domain encoder, which trains over a single

domain data, integrated encoder trains over a multi-

domain data, so its output features are domain

integrated and available for each domain. Finally, we

combine the integrated-domain features with the

individual-domain features:

()

enc 2 1 enc enc

LeakyReLU ,





HW WHH

(3)

In order to facilitate the understanding, it can be

assumed that the integrated-individual feature is the

combination of

end

and

enc

. Besides, we adopt a

self-attention mechanism to obtain contextual

information, effectively capturing the semantic

relevance between all words in the context. We obtain

the context vector

enc

by using self-attention over

. Then we use the query vector, which contains

both integrated and individual features to search the

external knowledge.

enc enc

=qc

(4)

It loops k hops and calculate the attention weight

at each hop k.

()

(

)

enc

Softmax

kkk

•

pqc

)

The external knowledge of the MDN model is a

set of trainable embedding matrices, where

is the

embedding in

memory position. The model

executes the function

()

(

)

enc

Sigmoid

kkk

g = c

•

. The

resulting memory distribution is the global memory

pointer

()

Gg g

=…

, it passes retains relational

knowledge to the decoder and instantiate slot. As

shown in equation,

enc

is the query vector of the

hop,

is soft attention. After reading the memory

enc

according the weighted sum of

, the new

query vector

enc

k +

is update.

enc enc enc enc

kkkkkk

==+



opcqqo

)

can be seen as encoded external knowledge

information, which filter out useless information.

Then it is transmitted to the decoder with the encoded

dialogue history. Therefore, the model can enhance

the interaction between the model and the external

knowledge by querying knowledge to improve

accuracy.

3.2 Decoder

The decoder first generates a response with sketch

tags. Then the hidden state and global memory

pointer are used to query external knowledge again,

copy the word with the highest probability and

replace tags to generate finally response.

The decoder consists of a single-layer GRU called

sketch RNN. Its generative vocabulary has sketch

tags, which represent special entity types. The

decoder will generate “It will @Weather on @Date in

@Location.” instead of “It will rain on Sunday in

Mountain vie” first. At each time step, the hidden

state has two functions, first is to predict the

generation of the next word. When there are no sketch

tags in the preliminary responses, the generated

words can be considered as the final response. In

order to generate output token

, The MDN

calculates the attention representation

dec,t

′

of the

dialogue history first, and then combines it with

dec,t

, finally it projects the combination to the vocabulary

space V and U as follow:

dec, dec,

ttt

′





ohh

)

is the score, which determine the probability of

next word, and the probability

∈

is finally

calculated as:

()

,, ,, Softmax

tt t

py y y XB

−

…=∣ o

)

When the preliminary response generates sketch

tags, the global memory pointer will be passed to the

external knowledge and modify the global context

representation with its attention weight. Then h

queries the External knowledge on the pointer

network (Vinyals et al., 2015). The resulting

distribution is the local memory pointer, and the word

with the highest probability is the output. Finally,

copy mechanism (Gu et al., 2016) copies the words

from external knowledge into the reply. This process

is called instantiated sketch tags.

4 EXPERIMENT

In this section, we introduce our experimental

environment and parameter settings. Then we

compare the experimental results with different

models.

ISAIC 2022 - International Symposium on Automation, Information and Computing

302

4.1 Experiment Settings

The dataset selected for our experiment are public

dataset SMD (Eric and Manning, 2017) and Multi-

WOZ 2.1 (Budzianowski et al., 2018), as shown in

Table 1.

Table 1: Statistics of two datasets.

Datasets Domains Train Dev Test

SMD

Navigate，

Weather，Schedule

2425 302 304

Multi-

WOZ2.1

Restaurant,

Attraction, Hotel

1839

117 141

The implementation details of the specific

experimental settings are as follows: We set the

dimensionality of the embedding and the number of

GRU hidden units as 128, batch size as 16, and select

3 as the number of memory network's hop. The

number of hop K is set to 1,3,6 to compare the

performance difference. In this experiment, the

dropout rate is selected in the range of [0.1-0.5], and

other weight parameters are initialized by randomly

sampling the values from the uniform distribution.

The model uses the Adam optimization algorithm to

adjust the parameters (Kingma and Ba, 2014).

4.2 Benchmark

This paper selects several representative models as

baseline models to verify the performance of our

model in task-based dialogue.

 Mem2Seq (Madotto et al., 2018): The model

proposed global multi-hop attention to copy

words directly from the knowledge base and

dialogue history, effectively combining

knowledge base information.

 KB-retriever (Qin et al, 2019): The model

proposes a two-step framework for querying

the knowledge base. It adopts the KB retrieval

component to retrieve the relevant rows of the

knowledge base to filter unnecessary

information and then uses the attention

mechanism to lock the relevant columns.

 GLMP (Wu et al., 2019): This model is a

variant of Mem2Seq and proposes a global-to-

local memory pointer network, which designs

a global encoder and a local decoder to filter

the knowledge base.

 DF-Net （Qin et al., 2020）: Based on GLMP

model, it proposes a dynamic fusion

mechanism, realizes task- oriented intelligent

dialogue in multiple domains, and achieves

state-of-the-art performance.

We implement the public code of DF-Net with the

reported parameters to obtain results, and adopt the

reported results of Mem2Seq, DSR, KB-retriever as

well as GLMP.

4.3 Evaluation Criterion

Following previous work (Eric et al., 2017; Mardoto

et al., 2018; Wen, 2018; Wu, 2019; Qin et al., 2019),

we use BLEU and micro entity F1 metrics to evaluate

model performance.

BLEU: The BLEU score is designed based on

precision (Papineni et al., 2002). It is a commonly

used evaluation indicator for tasks such as machine

translation in natural language processing. Therefore,

we use the BLEU-4 score as the evaluation criterion

to calculate the cumulative score from 1-gram to 4-

gram for our experiments, and primarily test the

performance of models in terms of generating fluent

language over the data.

Entity F1: This metric evaluates the ability of models

for generating relevant entities from external

knowledge and captures the semantics of user-

initiated dialog flows. Both datasets contain dialogues

from three domains, so we compute the per-domain

entity F1 and the aggregated dataset entity F1 to

evaluate the retrieval ability of the model in

individual domain and integrated domains.

4.4 Experimental Results

The performances of MDN versus the previous model

on the SMD dataset and Multi-WOZ2.1 dataset are

shown in Table 2 and Table 3 respectively. It

significantly outperforms the baseline model overall.

We can observe that our proposed model achieves the

highest BLEU scores on both datasets, which is 0.8

and 1.1 higher than the second model. It indicates that

our framework surpasses the prior models, generates

more accurate and fluent responses, and produce

highly readable replies. For the SMD dataset, the

MDN model has the highest entity F1 scores in the

weather domain, schedule domain, and aggregated

domain, which is 0.1%, 3%, and 0.5% higher than the

second baseline model. For the Multi-WOZ2.1

dataset, our model achieves the best performance in

aggregated domain and hotel domain, which

surpasses the second model 3.4% in hotel domain.

The high entity F1-score certifies that this grouping

framework helps sift relevant entities from the

knowledge base in different domains. These

remarkable advances show that it is effective to

improve the performance of most domains by

grouping domains and dynamically fusing features. It

Multi-Domain Data Enhanced Network for Task-Oriented Dialogue

303

can accurately capture the correlation between

domains and enhance the performance of the model.

Table 2: Compared results of different models on SMD.

Model BLEU F1

Navigate

Weather

Schedule

Mem2Seq

(Madotto et al., 2018)

12.6 33.4

20 32.8 49.3

KB-retriever

(Qin et al, 2019)

13.9 53.7

54.5 52.2 55.6

GLMP

(Wu et al., 2019)

13.9 60.7

54.6 56.5 72.5

DF-Net

（Qin et al., 2020）

15.2 60.0

56.5 52.8 72.6

MDN

(ours)

16.0 61.2 55.1 56.6 75.6

Table 3: Compared results of different models on Multi-

WOZ2.1.

Model BLEU F1

Restaurant

Attraction

Hotel

Mem2Seq

(Madotto et al., 2018)

6.6 21.6

22.4 22.0 21.0

GLMP

(Wu et al., 2019)

6.9 32.4

38.4 24.4 28.1

DF-Net

（Qin et al., 2020）

7.8 34.2

37.4 40.3 30.4

MDN

(ours)

8.9 34.2

34.5 35.4 33.8

5 CONCLUSION

In this work, we propose a multi-domain data

enhanced network to explicitly strengthen domain

knowledge for multi-domain dialogues. We adopt

attention mechanism to evaluate the correlation

between the current input and each domain, using the

correlation as a criterion for individual-domain

feature generation. In addition, both encoder and

decoder use query vectors to retrieve external

knowledge to improve response accuracy.

Experiments on two public datasets demonstrate that

our model outperforms the prior models. Besides, our

model is highly adaptable to different domains since

it uses the semantic similarity between domains to

accomplish knowledge transfer in the specific

domains with small datasets.

REFERENCES

Bordes, A., Boureau, Y.-L., & Weston, J. (2016). Learning

end-to-end goal-oriented dialog. arXiv preprint

arXiv:1605.07683.

Chen, H., Liu, X., Yin, D., & Tang, J. (2017). A survey on

dialogue systems: Recent advances and new frontiers.

Acm Sigkdd Explorations Newsletter, 19(2), 25-35.

Chung, J., Gulcehre, C., Cho, K., & Bengio, Y. (2014).

Empirical evaluation of gated recurrent neural networks

on sequence modeling. arXiv preprint

arXiv:1412.3555.

Eric, M., & Manning, C. D. (2017). Key-value retrieval

networks for task-oriented dialogue. arXiv preprint

arXiv:1705.05414.

Gu, J., Lu, Z., Li, H., & Li, V. O. (2016). Incorporating

copying mechanism in sequence-to-sequence learning.

arXiv preprint arXiv:1603.06393.

Guo, J., Shah, D. J., & Barzilay, R. (2018). Multi-source

domain adaptation with mixture of experts. arXiv

preprint arXiv:1809.02256.

Jin, D., Gao, S., Kim, S., Liu, Y., & Hakkani-Tur, D.

(2021). Towards zero and few-shot knowledge-seeking

turn detection in task-orientated dialogue systems.

arXiv preprint arXiv:2109.08820.

Joshi, C. K., Mi, F., & Faltings, B. (2017). Personalization

in goal-oriented dialog. arXiv preprint

arXiv:1706.07503.

Kingma, D. P., & Ba, J. (2014). Adam: A method for

stochastic optimization. arXiv preprint

arXiv:1412.6980.

Kulhánek, J., Hudeček, V., Nekvinda, T., & Dušek, O.

(2021). AuGPT: Auxiliary Tasks and Data

Augmentation for End-To-End Dialogue with Pre-

Trained Language Models. arXiv preprint

arXiv:2102.05126.

Le, Q., & Mikolov, T. (2014). Distributed representations

of sentences and documents. Paper presented at the

International conference on machine learning.

Lei, W., Jin, X., Kan, M.-Y., Ren, Z., He, X., & Yin, D.

(2018). Sequicity: Simplifying task-oriented dialogue

systems with single sequence-to-sequence

architectures. Paper presented at the Proceedings of the

56th Annual Meeting of the Association for

Computational Linguistics (Volume 1: Long Papers).

Madotto, A., Wu, C.-S., & Fung, P. (2018). Mem2seq:

Effectively incorporating knowledge bases into end-to-

end task-oriented dialog systems. arXiv preprint

arXiv:1804.08217.

Papineni, K., Roukos, S., Ward, T., & Zhu, W.-J. (2002).

Bleu: a method for automatic evaluation of machine

translation. Paper presented at the Proceedings of the

40th annual meeting of the Association for

Computational Linguistics.

Park, N., & Kim, S. (2022). How Do Vision Transformers

Work? arXiv preprint arXiv:2202.06709.

Qin, L., Che, W., Li, Y., Wen, H., & Liu, T. (2019). A

stack-propagation framework with token-level intent

detection for spoken language understanding. arXiv

preprint arXiv:1909.02188.

Qin, L., Xu, X., Che, W., Zhang, Y., & Liu, T. (2020).

Dynamic Fusion Network for Multi-Domain End-to-

end Task-Oriented Dialog.

Raghu, D., & Gupta, N. (2018). Disentangling language and

knowledge in task-oriented dialogs. arXiv preprint

arXiv:1805.01216.

Serban, I. V., Sordoni, A., Bengio, Y., Courville, A., &

Pineau, J. (2015). Hierarchical neural network

generative models for movie dialogues. arXiv preprint

arXiv:1507.04808, 7(8), 434-441.

Vinyals, O., Fortunato, M., & Jaitly, N. (2015). Pointer

networks. Advances in neural information processing

ISAIC 2022 - International Symposium on Automation, Information and Computing

304

systems, 28.

Wei, Z., Liu, Q., Peng, B., Tou, H., Chen, T., Huang, X.-J.,

. . . Dai, X. (2018). Task-oriented dialogue system for

automatic diagnosis. Paper presented at the Proceedings

of the 56th Annual Meeting of the Association for

Computational Linguistics (Volume 2: Short Papers).

Wen, T.-H., Vandyke, D., Mrksic, N., Gasic, M., Rojas-

Barahona, L. M., Su, P.-H., Young, S. (2016). A

network-based end-to-end trainable task-oriented

dialogue system. arXiv preprint arXiv:1604.04562.

Williams, R. J., & Zipser, D. (1989). A learning algorithm

for continually running fully recurrent neural networks.

Neural computation, 1(2), 270-280.

Wu, C.-S., Madotto, A., Winata, G., & Fung, P. (2017).

End-to-end recurrent entity network for entity-value

independent goal-oriented dialog learning. Paper

presented at the Dialog System Technology Challenges

Workshop, DSTC6.

Wu, C.-S., Socher, R., & Xiong, C. (2019). Global-to-local

memory pointer networks for task-oriented dialogue.

arXiv preprint arXiv:1901.04713.

Multi-Domain Data Enhanced Network for Task-Oriented Dialogue

305
