Research on Human Gesture Recognition Algorithm Based on

Multi-Scale Sparse Neural Network

Lexuan Huang

, Shenggang Yan

2,*

and Jianguo Liu

Shanghai United International School, Gubei Secondary Campus, Shanghai 201103, China

School of Marine Science and Technology, Northwestern Polytechnical University, Xi’an 710072, China

Keywords: Human Gesture Recognition, Multiscale Sparse Neural Networks, Time Series Data.

Abstract: Human posture classification, as a part of human activity recognition, has a wide range of applications in

medical treatment, nursing, sports injury protection, safety monitoring, and other fields. Along with the

increasing hardware computing power and storage performance, an extensive amount of large data can be

stored and computed as time series in real-time. But in the face of vast amount of data generated by inertial

sensors, there is still a lot of room for development in real-time data processing. Multiscale Sparse Neural

Networks are in this paper, realize the judgment and classification of the posture of the human body. The data

is the human body pose by the nine-axis inertial sensor and the huge amount of data and real-time calculation

have been taken into account. Compared to other methods, ours performs state-of-the-art on the WISDM and

UCI-HAR datasets, and achieves good results on our own datasets.

1 INTRODUCTION

With the rapid development of electronic and

information technology, mobile phones have become

indispensable personal products. The sensors in

mobile phones, such as built-in gyroscopes and

magnetometers, can help people do assorted online

activities. These sensors integrate the tools that

people need into a small and convenient mobile

phone. In particular, the acceleration-based step

counter can help individuals understand their physical

activities, to achieve multiple purposes such as

calorie calculation (Nweke et al., 2018; Dirac et al.,

2013). Although the existing step counter is more

accurate for calculating the number of steps, it will

mistakenly judge other non-walking situations as the

walking state due to the change of the relative

position. Based on this question, the following

thoughts can be drawn. Can the sensor be used to

distinguish the user's action status? So as to

distinguish different travel modes, and at the same

time, it can also increase the judgment accuracy of

mobile phones and other portable devices in various

situations. Higher requirements are put forward on

low computational complexity and high real-time

performance. In practice, the measurement of human

body posture through a computer is not only applied

to pedometers but also widely used in the following

scenarios.

1.1 Application of Human Body

Posture Classification

With the development of computer intelligence,

humans’ understanding of machines continues to

make breakthroughs, and the development of more

advanced human-like machines complements

accurate researches on human cognition. The human

body posture classification is an important part of

human behavior cognition. The human body posture

estimation refers to the accurate detection and

prediction of an individual’s posture (Ma et al., 2017).

It has a wide range of application scenarios and a

broad development market.

1.2 Time Series Data

In human body posture classification, the input

samples and tests are both time series data. Time

series data is a type of data collected at different times

and serves to describe changes in the phenomenon

over time. This type of data reflects the change in the

state or degree of a certain object or phenomenon over

time. With time characteristics, it can intuitively

reflect the transformations of data over time. After

storing the human body posture data as a time series,

it is easier to observe the human body posture data

that alters due to time changes in motion (Xia et al.,

2012). This kind of data is widely present in the

Huang, L., Yan, S. and Liu, J.

Research on Human Gesture Recognition Algorithm Based on Multi-Scale Sparse Neural Network.

DOI: 10.5220/0011951500003612

In Proceedings of the 3rd International Symposium on Automation, Information and Computing (ISAIC 2022), pages 457-464

ISBN: 978-989-758-622-4; ISSN: 2975-9463

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

457

sensor sequence stored as time goes on. For example,

the observation and maintenance of bridges: In recent

years, extreme weather and floods have become more

frequent, and the damage caused has greatly

intensified (Nishani and Çiço, 2017). By installing

sensors in bridges, researchers can use the collected

time series and the constructed model to analyze

changes in the state of the infrastructure, effective

early maintenance, and warning measures

(Omenzetter and Brownjohn, 2006). This kind of

data will also be utilized in econometric models, such

as a country's GDP data. Through time series data,

researchers and experts can understand the trend of

GDP growth over the years.

Time series data can be divided into stationary

processes, de-trend stationary processes, and

differential stationary processes. For example, in the

steel wire manufactured by the twisting method, the

random process in which the diameter of the steel

wire does not change with the lapse of time is stable;

when the water droplets penetrate the stone, the water

droplets continuously invade the stones, and the

amount of stone reduction has an upward trend. The

statistical characteristics of time series detrending can

be obtained; annual rainfall characteristics pass trend

and seasonality, and stable rainfall characteristics

data can be obtained after differential conversion,

equating, a data set with stable mean and variance,

which is a differential stationary process.

In order to solve these problems, Multi-scale and

sparse neural networks are studied in this paper,

different from traditional algorithms for human pose

detection. Our proposed method has good

adaptability at large data scale by improving the

sparse detection ability of the network. The difference

from the existing algorithms (Golyandina, 2020;

Perraudin et al., 2017; Korenberg and Paarmann,

1991) is that the receptive field is self-adapted in the

configuration of our algorithm. The combination of

multi-scale and sparseness on the network brings a

new dimension of representation at the level of real-

time data. It shows good characteristics when the data

is collected by the nine-axis sensor mounted on the

human body.

1.3 Challenges

At present, most human posture monitoring devices

are based on the information of video images. This

method can recognize the human joint structure

through images and construct 2D or 3D bones (do

Rosário, 2014; Le and Nguyen, 2013). It has been

well applied in some fields. Based on the research

purpose of judging and classifying human posture,

this paper selects high-precision sensors to complete

data acquisition. For example, a sports Bracelet uses

a gait cycle estimation algorithm (Moe-Nilssen and

Helbostad, 2014). However, for the problem to be

solved in this paper, the traditional algorithm will

have the problem of false recognition, less

recognition of human motion state, and cannot make

effective judgments on bus travel and car travel

because it cannot distinguish the motion state. Once

when I checked my mobile phone by bus, I found that

the number of steps on the counter was increasing,

which was caused by the sensor misjudging the

bumpiness of the bus as walking. Secondly, the

existing and widely used gait cycle estimation

algorithms not only cannot achieve multi-objective

classification and judge a variety of travel patterns but

also cannot process a large number of data generated

in our research process.

At the same time, there will be some challenges

when analysing time series data. When the collected

time series data is incomplete, the trend about time

obtained by analysing this incomplete data is very

high, which may be wrong or biased. For example,

collecting the water level change of a river under the

influence of the tide, but only collecting the data in

the dry season, or the imbalance of various state data

will affect the data classification results. In the

process of this study, three kinds of sensor data,

namely three-axis accelerometer, gyroscope, and

three-axis angular velocity sensor, are used for

calculation. The amount of data is large and the

characteristics are complex. The data collected and

analyzed by the traditional algorithm cannot meet the

requirements of this study.

2 RELATED WORK

The continuous development of deep learning leads

to numerous developments and achievements in

human posture classification. At the very beginning,

machine learning played an important role. The

Support Vector Machine (SVM) (Byvatov and

Schneider, 2003) is one of the most widely used

machine learning algorithms. SVM analyses the data-

through a linear decision hyperplane. During training,

the linear decision hyperplane is trained and adjusted

in order to separate data with different labels

(Chathuramali and Rodrigo, 2012; Tharwat et al.,

2018). In the article (Chathuramali and Rodrigo,

2012), the author used images after feature extraction

as the input of SVM. As a result, the SVM is quite

computationally cost-effective and accurate in high-

dimensional vector space. K-Nearest Neighbors (K-

ISAIC 2022 - International Symposium on Automation, Information and Computing

458

NN) is another commonly used classifier. K-NN only

has one parameter k for variant how many nearby

samples will be based on for classifying the type of

the test sample, and the choice of K will have a

significant effect on the especially high dimensional

data processing (Akilandasowmya et al., 2015). In the

article (Li et al., 2012), the author applied K-NN to

human posture classification and result in high

accuracy. For the KTH dataset, the average accuracy

reaches 91.4%. Thereafter, deep learning algorithms,

as a type of more complex machine learning, are also

used in human posture classification. Back

Propagation Neuron Network (BP neuron network)

algorithm is a multi-layer feedforward network,

training with the method based on error back

propagation (Jin et al., 2000). Researchers use the

algorithm discovered by Paul (Jain and Kanhangad,

2017) to learn the features, replacing the manual

feature extraction. LeCun et al. applies the BP neuron

network to handwritten digit recognition, displaying

the possibility that BP Neuron Network can be used

in Image recognition without a complicated pre-

processing stage. Due to BP Neuron Network updates

the weighted based on the direction with the most

descent gradient of error, it is inevitable that the error

will finalize in a minimum state in a particular section

and cannot reduce to a degree that has the smallest

error (Guo et al., 2020). This is the most significant

disadvantage of the BP Neuron Network. Along with

promoting computational ability, CNN is developed

while other algorithms that combine with CNN, such

as LSTM-CNN, are also created. Before introducing

the LSTM, a discussion about RNN has to be made.

The recurrent Neural Network (RNN) is a neuron

network that is used to manage the series-changing

data. This kind of neural network can be generally

utilized in language modeling, speech recognition,

machine translation, and other applications. The Long

Shot-Term Memory (LSTM) is typically designed to

solve the problem of long-term dependency in RNN.

LSTM-CNN then combines the advantages of both

CNN and LSTM neuron networks. This neuron

network can be flexibly used in visual signal

processing that involves continuous input and output,

applying CNN for input feature extraction and LSTM

for the series prediction. The technology developed is

employed in activity recognition, image and video

description, natural language processing, and so on.

LSTM-CNN maintains a high accuracy as the result.

According to the article [21], the author applies

LSTM-CNN to human posture recognition and

acquires the percentage accuracy of 95.78%, 95.85%,

and 92.63% in the public dataset UCI-HAR, WISDM,

and OPPORTUNITY correspondingly, proving the

superiority of this type of neuron network.

3 MATERIALS AND METHODS

3.1 Data Description

To train the neuron network with human posture data,

this paper uses two public datasets and a self-

collected dataset, which both will be introduced in the

following passage. For the public dataset, WISDM

[22] and UCI-HAR [23] are selected, and both of

them include six different human postures.

Comparing to WISDM, UCI-HAR has more data-

collecting volunteers, represents the vast majority.

Although the WISDM dataset has more data

collected. The self-collected data set is based on the

nine-axis sensor, collecting the human posture data

on different transportation.

WISDM: This is an integrated and ready-to-be-

used dataset, including over one million data

collected from 36 different users. All of the data is

collected through the sensor from an Android

smartphone, which is required to be placed in a pants

pocket while doing the six following activity——

walking, jogging, going upstairs, and going

downstairs, sitting and standing. When volunteers do

these activities, the sensor collects the data in the

frequency of 20Hz and records them in time series.

The distribution of data is shown in Table 1.

Table 1: WISDM: Wireless Sensor Data Mining.

Class

Distribution

Number of

exam

percentage

Walkin

424,000 38.6%

342,177 31.2%

Upstairs 122,869 11.2%

Downstairs 100,427 9.1%

Sittin

59,939 5.5%

Standin

48,395 4.4%

UCI-HAR: This dataset is collected from thirty

volunteers aged between 19~48 years old, and each

of them placed the phone at their waist while carrying

out six daily activities similar to WISDM, namely

walking, going upstairs, going downstairs, sitting,

standing, and lying down. The distribution is shown

in Table 2. With the sensor inside the phone, the

three-axis acceleration and three-axis angular speed

are collected at a frequency of 50Hz. After data

collection, the researchers denoise the data and label

them accordingly to the video recorded during the

collection process, then separate them into two

Research on Human Gesture Recognition Algorithm Based on Multi-Scale Sparse Neural Network

459

groups. 70% of the data goes into the training set and

the rest 30% is in the testing set.

Table 2: UCI-HAR: Human Activity Recognition database

Class

Distribution

Number of

exam

percentage

Walkin

122,091

16.3%

Walking-

upstairs

116,707

15.6%

Walking-

downstairs

107,961

14.4%

Sittin

138,105

16.9%

Standin

136,865

18.5%

136,865

18.3%

Self-collected dataset: While collecting the data,

Raspberry Pi with a nine-axis sensor is used.

Comparing to the sensor in the smartphone,

Raspberry Pi (Figure 1) can carry out a wider range

of sensors (Figure 2) that can be customized, resulting

in the availability of more types of data. The

Raspberry Pi was placed in the pants pocket, where

the smartphones are usually placed, to collect the data

that has similar features to the one which the phone

will collect. The types of data collected are x, y, z,

three-axis acceleration, angular speed, and gyro

value, a total of nine types of data, collecting at the

frequency of 20Hz. During the data collection, six

modes of traveling are chosen, which are walking,

running, cycling, bus, metro, and car. Each activity

lasts for around one hour to collect complete sets of

data. The distribution of the self-collected dataset is

quite even, listing in Table 3.

Table 3:

Self-collected dataset.

Class

Distribution

Number of

example

percentage

Walkin

89349

17.4%

Runnin

74098

14.5%

clin

90187

17.6%

bus

60982

11.9%

subwa

87623

17.1%

108761

21.3%

3.2 Data Preprocessing

In the data collected, there will usually be some

anomalies and missing values, which will affect the

training of the model. To get the best result of

network training, data need to go through pre-

processing ensuring that the anomalies are removed

and the missing values are replenished, which is

especially important for the self-collected data. This

paper did the following data pre-processing:

Data Normalization: Normalization is the process

of reaching the minimal redundancy that is integral to

structure the data. Generally speaking, the dataset will

be divided into several groups, and the relationship

between groups will be defined. In that case,

modification and deletion of one single group will be

spread to others with a defined relationship. When a

relational database has a higher normal form, it will

have a higher resistance to anomalies and be

convenient to process.

Missing Value Processing: Since the time series

data is used in various fields, it is inevitable that some

of the data will be lost during the transmission. These

missing data will affect the overall effectiveness of

network training. There are two mainstream missing

value processing methods. The first one is refilling

data based on the statistic pattern. A researcher refill

by last, mode, or mean. The second one is deleting the

group of samples that miss the value. In the self-

collected dataset, the missing value is caused by the

deletion of anomalies. Filling in the missing value is

one of the works done in this paper through the mean

of the previous and the next data.

Figure 1: Raspberry Pie Chip.

Figure 2: Nine-axis Sensor.

3.3 Network Structure

A neural network architecture (Figure 3) is designed

in this paper and, in particular, is added to a simple

and efficient residual processing pipeline. Different

from the existing methods to improve the feature

capture accuracy, the method we propose can capture

ISAIC 2022 - International Symposium on Automation, Information and Computing

460

the dependency information well in a limited level.

Compared with [24], [25], [26], the defect is solved

in handling timing problem in CNN.

Residual network is widely used in deep neural

network, it can solve the problem of gradient

disappearance and gradient explosion caused by too

many layers (Guo et al., 2020). Expanding the

receptive field of a neural node generally increases

progressively using the inflation rate. Expanding the

receptive field of neural nodes generally increases the

use of the expansion rate progressively, the network

depth will increase accordingly, and the stability of

the network will be enhanced due to the introduction

of residual connections. Figure 4 shows the residual

structure used in this paper, including the output of 𝙁

and the identity map 𝙓 in its final output 𝐎.

𝑜𝜎𝐹



𝑥



𝑥

(1)

A human pose classification model is established

for long-term sparse sequence signals. In this paper,

the three-level residual network structure is stacked to

increase the network receptive field, and the structure

is more stable in this network. The sequence

dimension is 800*1, which is the input dimension of

this network input. After sufficient experiments, the

filter uses 5*1 and the sliding step size in the

convolutional layer is 1. The filter is set to 32 and 64

in the pre- and post-stage filters. It can be seen that

the larger receptive field greatly reduces the

computational cost compared to the traditional CNN

network in a small number of base-level networks

through the stacked network. At the same time, it has

good feature information capture ability in longer

sensor time series.

4 EXPERIMENT RESULT

We implemented our model with the TensorFlow

framework. Make a comparison with different

algorithms on different datasets. Validate the

effectiveness of the network by validating

experiments, evaluating and analyzing the results on

our own datasets. Finally, the confusion matrix is

obtained on the training set, validation set, test set and

the total classification results on different datasets.

Differences In terms of different data sets, the

public data sets are all collected from the real

environment, but the obvious data differences are

reflected in the sample types and action

characteristics. The parts that are easily confused

between different actions are more obvious in the

sparse features in the own data set. There is a clear

difference in the sparse feature representation using

the residual network structure in Figure 4, and the

results of processing these data are shown in Figures

5, 6, and 7. The experimental results show that the

algorithm in this paper shows good performance in

the public data sets WISDM and UCI-HAR, and the

performance is excellent in the own datasets.

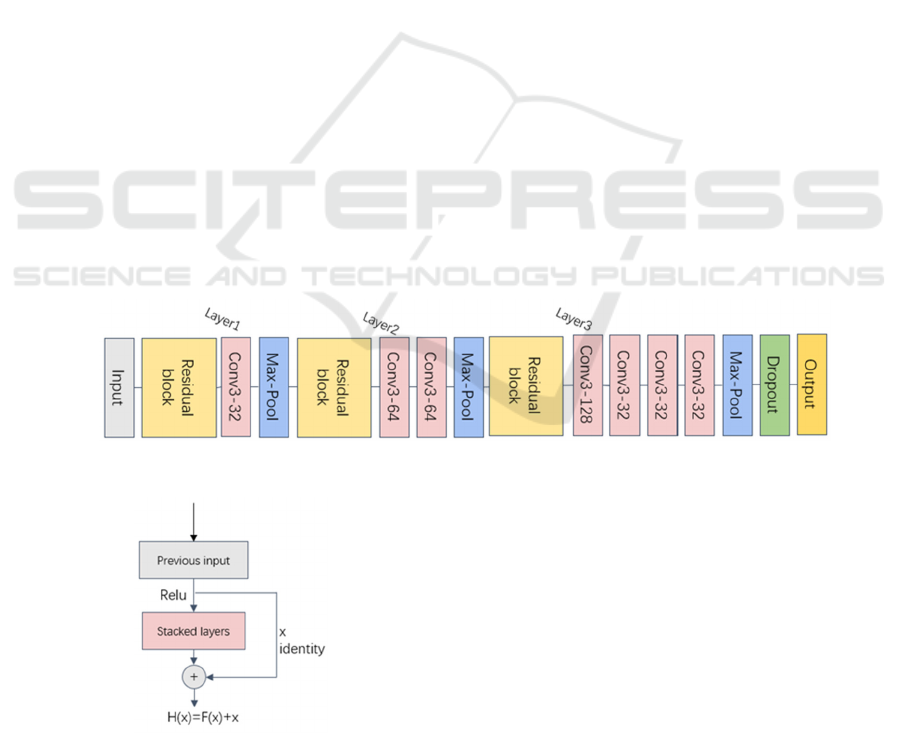

Figure 3: network architecture.

Figure 4: Details of the residual block.

Comparison between different algorithms,

LSTM-CNN, CNN, SVM, J48, and multilayer

perceptron were used to compute the same data.

Accuracy and training time are the detection criteria,

as shown in Table 4. It can be seen that the accuracy

rate has been improved using the method in this paper

compared with other algorithms. Exhibits larger gaps

using these algorithms on own datasets due to larger

data size and smaller class gaps.

Research on Human Gesture Recognition Algorithm Based on Multi-Scale Sparse Neural Network

461

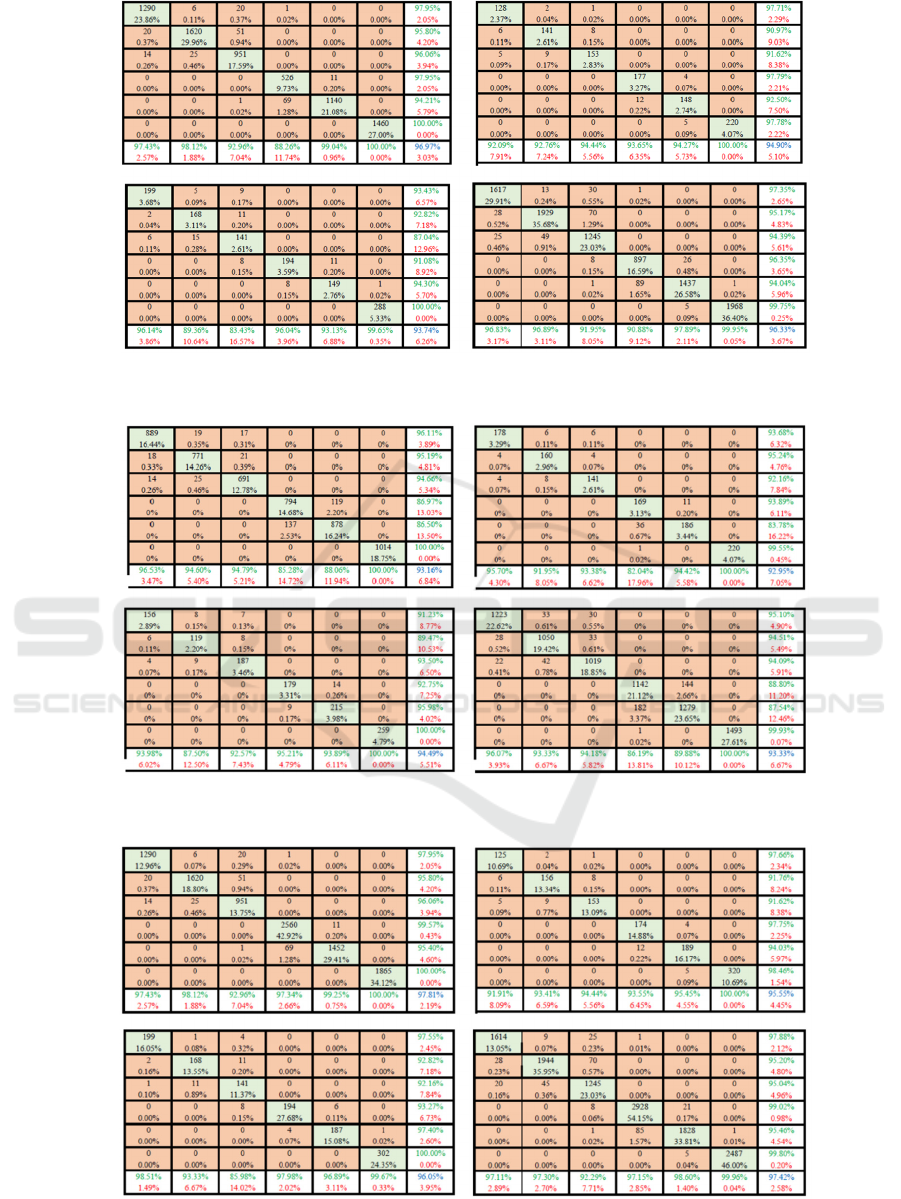

Figure 5: The confusion matrix uses the WISDM dataset on the algorithm in this paper(The abscissa is the target classification

and the ordinate is the output classification)

Figure 6: The confusion matrix uses the UCI-HAR dataset on the algorithm in this paper(The abscissa is the target

classification and the ordinate is the output classification)

Figure 7: The confusion matrix uses the Self-collected dataset on the algorithm in this paper(The abscissa is the target

classification and the ordinate is the output classification)

ISAIC 2022 - International Symposium on Automation, Information and Computing

462

Table 4: Comparison of accuracy recognition and training time between this algorithm and other algorithms

datasets

Model

Reco

nition Accurac

/% Trainin

time/s

WISDM UCI-

HAR

Self-

collected

WISDM UCI-

HAR

Self-

collected

LSTM-CNN 90.2 92.4 86.5 14.253 15.3635 19.461

J48 81.1 85.1 79.6 10.263 9.683 11.254

multila

er perceptron 88.3 91.7 82.6 11.322 10.256 12.364

SVM 87.6 91.9 84.5 9.651 7.229 10.251

CNN 90.6 91.2 85.7 20.356 13.529 16.321

The algorithm of this

ape

96.3 93.33 97.42 7.586 6.241 8.254

5 CONCLUSION

To solve the above problems, as well as multi-object

classification, multi-dimensional data processing, and

accurate half-segment results, the following work is

done.

(1)All kinds of data are collected and

preprocessed. In the collection process, the collection

time of each sample is controlled in an interval greater

than one hour to ensure the integrity of the data, and

to reduce the proportion of the overall data when

abnormal data occurs, thereby reducing its impact on

the data set. In the preprocessing, the data is

standardized and missing values are processed.

(2)A deep multi-scale neural network is proposed

as our algorithm, and the fast and accurate extraction

of data features in low signal-to-noise ratio data is the

advantage of this algorithm. Find a balance between

high resolution and high real-time through different

receptive fields. Reasonable use of pooling and up-

sampling techniques can improve performance while

reducing the amount of computation. The receptive

field changes continuously during the calculation

process in the blocks between layers, so as to achieve

the purpose of capturing local features in a large

amount of data.

(3) Use the public data set as input to test this

model, because the public data set has the

characteristics of large quantity, standard collection,

and is often used, so it has a high degree of reference

when testing the model. In addition, the model has

achieved high accuracy in multiple public data sets,

which proves that the model has sufficient versatility.

(4) Comparing the results obtained by running

multiple public data sets of this model with the results

obtained by various existing models, a higher

accuracy has been achieved, which proves the

practical application value of this model.

Based on real-life problems, this research built a

sensor collection device to process relevant data.

Carrying out network model research and

experiments based on CNN and LSTM-CNN

networks and other, and verify network models based

on WISDM and UCI-HAR data sets, and elaborate

and demonstrate in the papers respectively to realize

human posture detection and classification. This

produces the intelligent recognition of different

transportation vehicles when going home in real life.

In this process, a large number of documents were

investigated, the world-class research methods were

summarized, and scientific research capabilities were

exercised.

REFERENCES

Nweke, Henry Friday, et al. 2018. Deep Learning

Algorithms for Human Activity Recognition Using

Mobile and Wearable Sensor Networks: State of the Art

and Research Challenges. Expert Systems with

Applications, pages. 233–261.

Dirac G, Leone A, Siciliano P. 2013. Human posture

recognition with a time-of-flight 3D sensor for in-home

applications. Expert Systems with Applications, 40(2):

744-751.

Ma C, Li W, Gravina R, et al. 2017. Posture detection based

on smart cushion for wheelchair users. Sensors, 17(4):

719.

Xia L, Chen C C, Aggarwal J K. 2012. View invariant

human action recognition using histograms of 3d joints.

2012 IEEE computer society conference on computer

vision and pattern recognition workshops. pages 20-27.

Nishani E, Çiço B. 2017. Computer vision approaches

based on deep learning and neural networks: Deep

neural networks for video analysis of human pose

estimation. 2017 6th Mediterranean Conference on

Embedded Computing (MECO). page 1-4.

Omenzetter P, Brownjohn J M W. 2006. Application of

time series analysis for bridge monitoring. Smart

Materials and Structures, 15(1): 129.

Golyandina N. 2020. Particularities and commonalities of

singular spectrum analysis as a method of time series

Research on Human Gesture Recognition Algorithm Based on Multi-Scale Sparse Neural Network

463

analysis and signal processing. Wiley Interdisciplinary

Reviews: Computational Statistics, 12(4): e1487.

Grassi F, Loukas A, Perraudin N, et al. 2017. A time-vertex

signal processing framework: Scalable processing and

meaningful representations for time-series on graphs.

IEEE Transactions on Signal Processing, 66(3): 817-

829.

Korenberg M J, Paarmann L D. 1991. Orthogonal

approaches to time-series analysis and system

identification. IEEE Signal Processing Magazine, 8(3):

29-43.

do Rosário J L P. 2014. Photographic analysis of human

posture: a literature review. Journal of bodywork and

movement therapies, 18(1): 56-61.

Le T L, Nguyen M Q. 2013. Human posture recognition

using human skeleton provided by Kinect. 2013

international conference on computing, management

and telecommunications. pages: 340-345.

Moe-Nilssen R, Helbostad J L. 2014. Estimation of gait

cycle characteristics by trunk accelerometry. Journal of

biomechanics, 37(1): 121-126.

Byvatov E, Schneider G. 2003. Support vector machine

applications in bioinformatics. Applied bioinformatics,

2(2): 67-77.

Chathuramali K G M, Rodrigo R. 2012. Faster human

activity recognition with SVM. International

conference on advances in ICT for emerging regions

pages: 197-203.

Tharwat A, Mahdi H, Elhoseny M, et al. 2018. Recognizing

human activity in mobile crowdsensing environment

using optimized k-NN algorithm. Expert Systems with

Applications, 107: 32-44.

Akilandasowmya G, Sathiya P, AnandhaKumar P. 2015.

Human action analysis using K-NN classifier. 2015

Seventh international conference on advanced

computing. pages: 1-7.

Li J, Cheng J, Shi J, et al. 2012. Brief introduction of back

propagation (BP) neural network algorithm and its

improvement. Advances in computer science and

information engineering. Heidelberg, pages: 553-558.

Jin W, Li Z J, Wei L S, et al. 2000. The improvements of

BP neural network learning algorithm. WCC 2000-

ICSP 2000. 2000 5th international conference on signal

processing proceedings. 3: 1647-1649.

Jain A, Kanhangad V. 2017. Human activity classification

in smartphones using accelerometer and gyroscope

sensors. IEEE Sensors Journal, 18(3): 1169-1177.

Guo C, Fan B, Zhang Q, et al. 2020. Augfpn: Improving

multi-scale feature learning for object detection.

Proceedings of the IEEE/CVF conference on computer

vision and pattern recognition. pages: 12595-12604.

ISAIC 2022 - International Symposium on Automation, Information and Computing

464
