The Interaction for Pilot Decision Assistance: State Machines or

Learning from Story Examples?

S. Khait, N. Ardila-Torres, D. Bernard, F. Gouëzec and M. Litvova

Airbus SAS, 316 route de Bayonne, Toulouse, France

Keywords: Decision Assistance, Dialog Management, Interaction Modelling, Methodology, State Machine, Machine

Learning.

Abstract: This paper addresses some methodological aspects of the design of an adaptive interaction, in the specific

context of cockpit development processes. There are many classical approaches for designing collaborative

systems model user-system interaction such as synchronized state machines. On the other hand, some recent

approaches are promoting alternative methods where the models are obtained by training a neural network on

a set of real dialogue samples. Our benchmark study compares both approaches from an industrial perspective.

1 INTRODUCTION

With the increasing complexity of the aeronautical

environment, the cockpit designers will develop

virtual assistance functions to support pilots in

operational situations such as preparing a flight,

managing a failure, or defining an approach strategy.

In complex situations, decisions are co-elaborated by

the pilot and the assistant. Adaptive interaction

patterns must be implemented. This paper addresses

some methodological aspects of the design of such

adaptive interaction, in the specific context of cockpit

development processes.

Many classical approaches for designing

collaborative systems model user-system interaction

as synchronized state machines. (Winograd, 1986),

(Bui, 2006), (Goronzy, 2006), (Degani, 2013),

(Zamanirad, 2020). But recent chatbot design

frameworks are promoting alternative methods for

specifying and implementing user-system interaction

(Metalinou, 2020) (Warwedam, 2020): a "model" of

the interaction is obtained by training a neural

network on a set of "stories''. The model "learns" how

to decide what next action is to be taken at each step

of the interaction. This approach is deemed effortless

and more robust to unexpected situations than

classical approaches (Nicol, 2017). Our benchmark

study compares both approaches from an industrial

perspective. The basis for evaluation is a set of

requirements tailored to the development of cockpit

decision assistants: the method shall allow the

designers to cover diverse and complex operation

patterns, to take advantage of multimodal interaction

in the cockpit, to co-design the system with pilots, and

to demonstrate a target design assurance level.

Although this is still an ongoing work, we would like

to share the goals and methodology in this

conference, because of the possible impact on the way

Airbus will work with its partners on this subject.

This abstract presents: the system development

process applied to human-system interaction; the two

considered modelling techniques; the test architecture

put in place for the study; our requirements for the

modelling framework; concluding discussion

elements, including intermediate evaluation results.

Be advised that papers in a technically unsuitable

form will be returned for retyping. After returned the

manuscript must be appropriately modified.

2 INTERACTION

DEVELOPMENT PROCESS

The variety of cockpit operational situations implies

a large variety of pilot-assistant interaction patterns.

To compare them and to assess their suitability, these

steps executed:

 Operational analysis specifies human-

system interaction as operational scenarios.

This phase requires frequent workshops with

pilots.

Khait, S., Ardila-Torres, N., Bernard, D., Gouëzec, F. and Litvova, M.

The Interaction for Pilot Decision Assistance: State Machines or Learning from Story Examples?.

DOI: 10.5220/0011958900003622

In Proceedings of the 1st International Conference on Cognitive Aircraft Systems (ICCAS 2022), pages 61-64

ISBN: 978-989-758-657-6

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

 Following the operational analysis, a

functional analysis defines the functional

breakdown of the system and requirements

are cascaded to functions.

 Interaction requirements and operational

scenarios are validated and verified through:

discussions and workshops with pilots; tests

on simple and scripted interaction examples,

tests with functional prototypes or

simulations; tests on representative

simulators or integration benches.

 The implementation of a human-system

interaction is usually performed by

equipment/component providers. A final

verification takes place after equipment

delivery. This verification activity is

preferably done on integration benches.

A generic functional architecture pattern is applied

for decision assistance functions. The behaviour of

the virtual assistant is driven by a "dialog manager",

which decides the next dialog act to be taken by the

assistant at each step of the dialogue. Its inputs are

mainly "dialog acts" coming from an "interpreter"

which interprets pilots action as intentional dialog

acts (e.g. pushing a button, saying or writing

something, clicking somewhere on a touchscreen).

The dialog acts taken by the assistant are manifested

by a dedicated function by using the adequate

modality. The goal of our benchmark is to compare

several ways of specifying, implementing and testing

the dialog manager.

3 CANDIDATE APPROACHES

FOR DIALOGUE

MANAGEMENT

3.1 Approach 1: Dialog Manager as a

Hierarchical State Machine

Modelling dialog or protocols via state machines has

been a widespread practice for a long time. A usual

choice for conversation modelling is to assign a state

diagram to each interlocutor. Transitions in those

state diagrams are triggered by dialog acts taken by

the other participant (Winograd, 1986). In this study,

we use Hierarchical State Machines (HSMs), which

are finite state machines whose states themselves can

be other state machines. They are a well founded,

standardized formalism supported by industrial

toolboxes and standards like UML (Yannakakis,

2000). In the case of the pilot’s multi-skill assistant,

we represent the state of the overall assistant as the

combined (parallel) state of each of the skills. The

events which trigger the transitions are dialog acts

from the pilot, and will change the state of any skill

whose state machine is waiting for this type of dialog

act.

3.2 Approach 2: Learning Dialogue

from Stories Examples

Other alternatives for managing dialogue rely on

probabilistic models. Two such approaches can be

distinguished: Markovian models and Machine

Learning (ML) based models. Among the Markovian

models, we can mention the Partially Observable

Markov Decision Process (POMDP) models (Roy,

2000). Such models are used for planning under

uncertainty, which gives the agent the ability to

estimate the outcome of its actions even when it

cannot exactly observe the state of its environment.

Among the machine learning based models, several

deep learning models have been studied, such as

Recurrent Neural Networks (RNN) architectures

(Henderson et al, 2013) and other RNN types,

including Long Short Term Memory (LSTM)

(Williams, 2015). The idea is to select, at each new

utterance submitted by the user, the action which has

the best probability computed over a finite action

domain.

More recently, Transformers based models

(Vlasov, 2020) have shown promising results in

dialogue management. The self-attention of this

architecture makes it possible to ignore parts of the

dialogue that are unrelated to the present expected

task. For our study, we selected the RASA Open

Source framework (RASA Open Source, 2021) which

implements a Transformers based policy. Here, the

model of the dialog manager (DM) has to be trained

upon a set of stories which are example dialogues

between a human and a virtual assistant. For instance,

a pilot could be brought to perform a diversion given

a certain reason. If the scenario corresponds exactly

to one of the training stories, the DM does exactly

what the story says, using the Memoization policy (a

dialogue policy that remembers the stories from the

training data). Otherwise, the DM will extrapolate

using the Transformer Embedding Dialogue policy

(TED). Therefore, the more representative stories we

have, the better the extrapolation works (see Figure

1).

ICCAS 2022 - International Conference on Cognitive Aircraft Systems

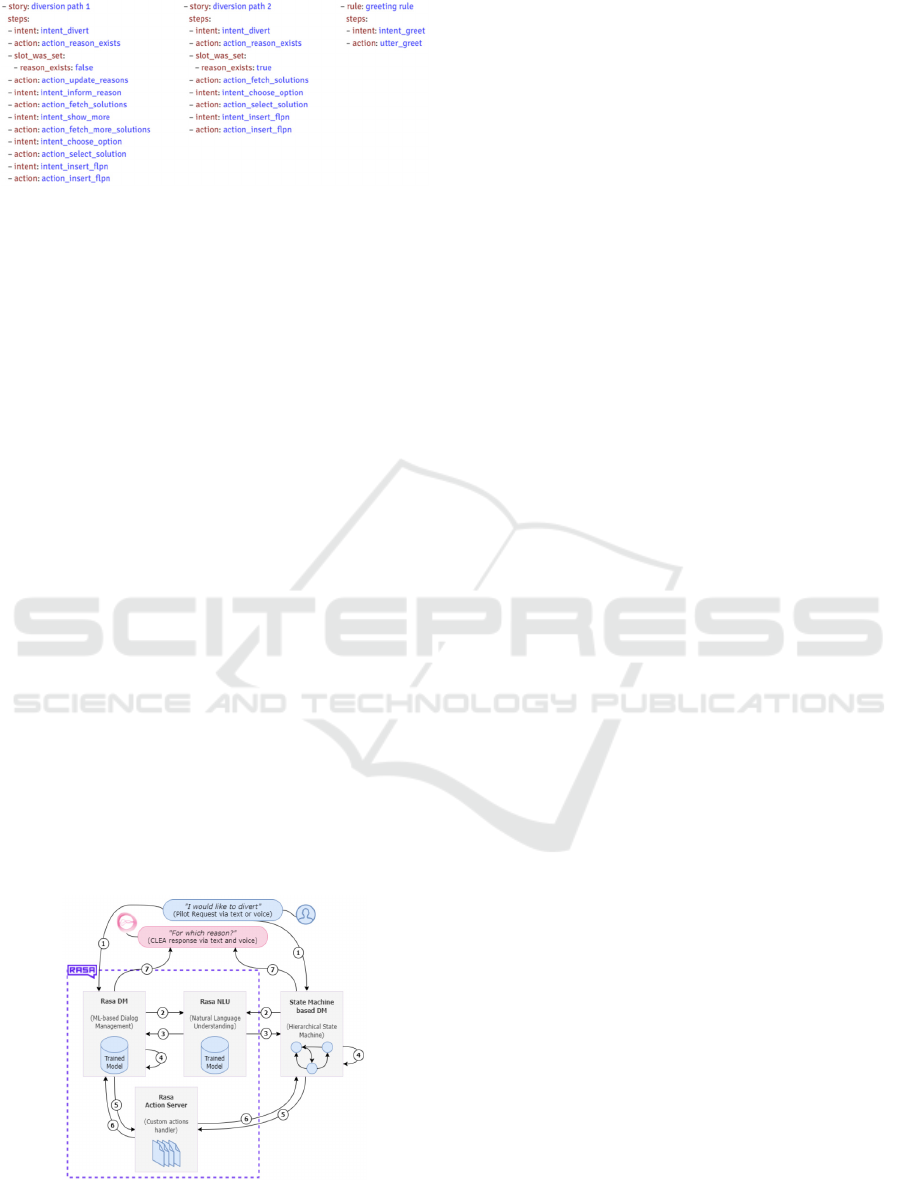

Figure 1: Illustration of two examples of a diversion

scenario in RASA format upon which model will be trained.

RASA lists user utterances under the “intent” key, actions

executed by the virtual assistant under the “action” key and

the slot events under the “slot_was_set” key. Note that slots

are the virtual assistant’s memory.

4 TEST BENCH

The decision assistant CLEA (Cockpit coLlaborative

Embedded Assistant) is a task-oriented dialogue

system. Its aim is the successful simulation of a

conversational agent to help pilots achieve a certain

task, such as performing a diversion. The RASA

framework used in this study (Bocklisch, 2017)

distinguishes the following modules: an NLU module

(Natural Language Understanding) which handles

user intents, a Dialog Manager which tracks

conversation state and predicts the next action to be

taken. The output is produced through an Action

Server, which ensures in particular Natural Language

Generation. Note that the RASA framework does not

include statistical natural language generation,

system utterances are simple templates (Vlasov,

2018). The modular approach allows us to improve

the different modules separately. We will focus on

using both ML based predictions and state machines

for the DM, and keep the other components fixed,

with only minor adjustments (see Figure 2).

Figure 2: Architecture overview of machine learning based

DM vs state machine based DM.

The DM controls the flow of the conversation. It

includes keeping track of information and choosing

appropriate actions based on rules or observations and

inferred beliefs. This being said, the modular

approach offers us the possibility to create a DM that

leverages HSMs in order to compare its performances

with the ML-based techniques implemented by

RASA.

The figure above outlines the capability to switch

between two DMs in a modular dialog system. It

means that the system recognizes a dialog act from

the pilot as an input. This would be, for example, “I

would like to divert”, uttered either textually or

vocally. The DM will make decisions based upon this

input and the current system state (step 1). Regardless

of the DM’s policy regime, NLU receives this input

(step 2), in order to map it to an intent (step 3).

Therefore, NLU needs to be trained on annotated

corpora (Vlasov, 2018).

When using a RASA DM, the prediction of the

appropriate action (step 4) will rely on both

Memoization and TED policies. When using a State

Machine based DM, the choice of the next action

(step 4) will be based on manually designed transition

diagrams.

As soon as the DM predicts an action, it will

trigger the RASA Action Server (step 5) which will

execute the right action and return a response to the

DM (step 6) that will be uttered textually and vocally

to the pilot (step 7). In this case, a suitable response

would be “For which reason?”, in order to know

about the reason for the diversion

5 REQUIREMENTS AND

PRELIMINARY ASSESSMENT

The criteria to compare the candidate approaches are

formatted as requirements, specific to the industrial

context. According to Airbus method for the design

of aircraft systems, system design starts with

overlapping operational and functional analysis.

Operational analysis produces operational scenarios,

which are the starting point of the design of user-

system interaction. Scenarios have to be cascaded,

enriched and instantiated for several purposes:

allocation of functions to assistant skills; evaluation

of pilot workload; detailed description of interaction.

Our modelling framework shall support a continuity

of representations ranging from initial operational

scenarios to specialized representations. Thus, the

language used to describe interaction should be at

least as expressive as the formalisms used for

The Interaction for Pilot Decision Assistance: State Machines or Learning from Story Examples?

describing scenarios (typically UML activity

diagrams, or an equivalent). The capture of

operational needs is made iteratively with pilots. The

models shall support early simulation, and their

representations shall be usable for discussions with

end users. Regarding validation, the models shall

support early simulation. From the early stages of

development, it should be possible for final users to

imagine what would be the actual interaction with the

system in operations. On verification, it will be hard

to cover any possible operational situations through

simulation with final users. Other methods should be

available to verify the dynamic requirements, for

example, co-simulation of system specification and

human operations, or formal methods.

Implementation of the dialog manager shall be

compatible with the resources of the target avionic

platform, including not only hardware resources, but

also the operating system and the middleware. The

development and implementation of Dialogue

Management shall be compliant with applicable

guidelines from certification authorities (EASA,

2021), in particular regarding learning assurance and

explainability. After the entry into service, it will still

be needed to reproduce, understand and correct issues

and to customize the assistant to the airline's own

standards.

6 WAY FORWARD,

DISCUSSIONS

The next steps of the study (before the ICCAS), will

finalize the benchmark by modelling the same

decision assistance function according to the two

candidate approaches, and compare them against the

criteria listed in the previous section. The models

(either state machines or trained neural networks) will

evolve all along a shortened development cycle:

initially the model will only support a few normal

simple use cases, and then be enriched with marginal

and more complex cases. The effort to implement

those evolutions will be compared, as well as the

performances of the simulations obtained from those

models. This evaluation will include exposure of the

models to pilots.

Finally, the study will conclude with informed

recommendations for the organization of the

development of decision assistance functions for the

next Airbus aircraft. We keep the possibility to

recommend hybrid methods, for example using state

machines to generate stories which can be generalized

by machine learning, or using either one or the other

interaction technique for different use cases. We hope

you find the information in this template useful in the

preparation of your submission.

REFERENCES

Bocklisch, T., Faulkner, J., Pawlowski, N., Nichol, A.,

2017. Rasa: Open Source Language Understanding and

Dialogue Management.

Bui, T., 2006. Multimodal dialogue management-state of

the art. Surface Science - SURFACE SCI.

Degani, A., Heymann, M., Shafto M., 2013. Modeling and

formal analysis of human-machine interaction.

EASA, 2021. EASA Concept Paper: First usable guidance

for Level 1 machine learning applications. European

Union Aviation Safety Agency, proposal issue 01, April

2021.

Goronzy S., Mochales R., Beringer N., 2006. Developing

speech dialogs for multimodal HMIs using finite state

machines.

Henderson, M., Thomson, B., Young, S., 2013. Deep neural

network approach for the Dialog State Tracking

Challenge.

Metalinou A., 2020. Science innovations power Alexa

Conversations dialogue management. Amazon Science.

Nicol A., 2017. A New Approach to Conversational

Software. RASA blog.

RASA Open Source, 2021. https://rasa.com/open-source.

Roy, N., 2000. Spoken dialogue Management Using

Probabilistic Reasoning.

Vlasov, V., Drissner-Schmid, A., Nichol, A., 2018. Few-

Shot Generalization Across Dialogue Tasks.

Vlasov, V., Johannes E., Mosig, M., Nichol, A., 2020.

Dialogue Transformers.

Williams, J., Zweig, G., 2015. End-to-end LSTM-based

dialog control optimized with supervised and

reinforcement learning.

Winograd T., 1986. A Language/Action Perspective on the

Design of Cooperative Work. Conference on

Computer-Supported Cooperative Work, pp. 203-220.

Yannakakis M., 2000. Hierarchical State Machines,

Proceedings of the International Conference IFIP on

Theoretical Computer Science, Exploring New

Frontiers of Theoretical Informatics, pp.315-330.

Zamanirad S. et al., 2020. State Machine based Human-Bot

Conversation Model and Services. CAiSE 2020: 32nd

International Conference on Advanced Information

Systems Engineering, Grenoble, France. pp.199-214.

ICCAS 2022 - International Conference on Cognitive Aircraft Systems
