Optimization of Virus Propagation Model in Multi Hop Cellular

Hybrid Network Based on Network Attack

Fang Wu, Lanmei Qian, Huanxiao Xu, Xiaodan Cai, Hongyun Chen and Chao Zhou

School of Computer and Information Engineering, Nantong Institute of Technology, Nantong, Jiangsu, China

Keywords: Network Attack, Cellular Network, Virus Transmission.

Abstract: Aiming at the problems of poor management effect and low security of the current multi hop cellular hybrid

network virus identification, this paper proposes a multi hop cellular hybrid network virus propagation model

optimization method based on network attack, mines and identifies the computer virus propagation model

categories based on network attack characteristics, constructs a multi hop cellular hybrid network virus

propagation evaluation algorithm, The multi hop cellular hybrid network virus propagation model based on

network attack can reduce the probability of computer suffering from network virus and ensure the security

of user's computer network.

1 INTRODUCTION

The rise and rapid popularization of the Internet has

brought more and more benefits to people's social and

economic interests, but it has also created broader and

favorable living conditions for the survival and spread

of viruses. Due to the type and complexity of the

network, and a variety of new viruses emerge in

endlessly

[1]

. Therefore, in the current computer virus

environment, how to effectively prevent and reduce

the harm caused by network attacks to users has

become a major focus of the current computer virus

research. At present, the research on the propagation

mode of network virus mostly adopts the method of

bioengineering to imitate its propagation mechanism

in the biosphere and build a differential mathematical

model of network virus diffusion. Based on the

characteristics of network attack, a virus

identification method in Sir mode is proposed.

However, the state transition rate of each node must

be fixed in the whole network. Because the spread of

network virus has many random and dynamic

characteristics, in the traditional mathematical model

of network virus propagation, it is difficult to analyze

it accurately because it is only a regular variable

[2]

When a network attack virus appears, users usually

have different protection and protection: some users

will use the network attack identification method to

detect it and repair it to strengthen the network

defense. Some people will install a patch on the

website before being invaded by the virus, so that

they have a certain resistance to the virus, while some

people will leave the website temporarily before

being invaded by the virus, and will reconnect to the

website after the network recovers to normal. This is

the so-called "repeated infection". Due to the errors in

the mathematical model of computer virus

propagation in the past and the lack of specific

analysis of repeated infection, an optimization

method of multi hop cellular hybrid network virus

propagation model based on network attack is

proposed

[3]

2 CONSTRUCTION OF VIRUS

PROPAGATION MODEL IN

MULTI HOP CELLULAR

HYBRID NETWORK

2.1 Identification of Computer Virus

Transmission Model

Most viruses take network information as the target

of attack, causing interference to network information

and making it unable to work normally; If the

distribution form of the file is damaged, the file name

will be disconnected from the content of the file

[4]

. In

addition, it will also cause the hard disk to be idle,

because it will be copied continuously, which will

greatly occupy the hard disk and arbitrarily modify

the files; Since it takes up the cache time, many

566

Wu, F., Qian, L., Xu, H., Cai, X., Chen, H. and Zhou, C.

Optimization of Virus Propagation Model in Multi Hop Cellular Hybrid Network Based on Network Attack.

DOI: 10.5220/0011961400003612

In Proceedings of the 3rd International Symposium on Automation, Information and Computing (ISAIC 2022), pages 566-573

ISBN: 978-989-758-622-4; ISSN: 2975-9463

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

viruses will be copied continuously after being started

and exist in the cache, resulting in insufficient cache;

For example, in the previous CIH, the BIOS file of

the host was tampered with. Most network infections

are caused by the connection with other network

nodes. Every hour, the contact between the infected

node and other nodes is called contact

[5]

. In the whole

network, the connection rate is determined by the

number of nodes in the whole network. Intrusion

detection is an active defense technology, which can

detect and respond in time when the multi hop cellular

hybrid network is in danger. Its detection process is

as follows (see Figure 1).

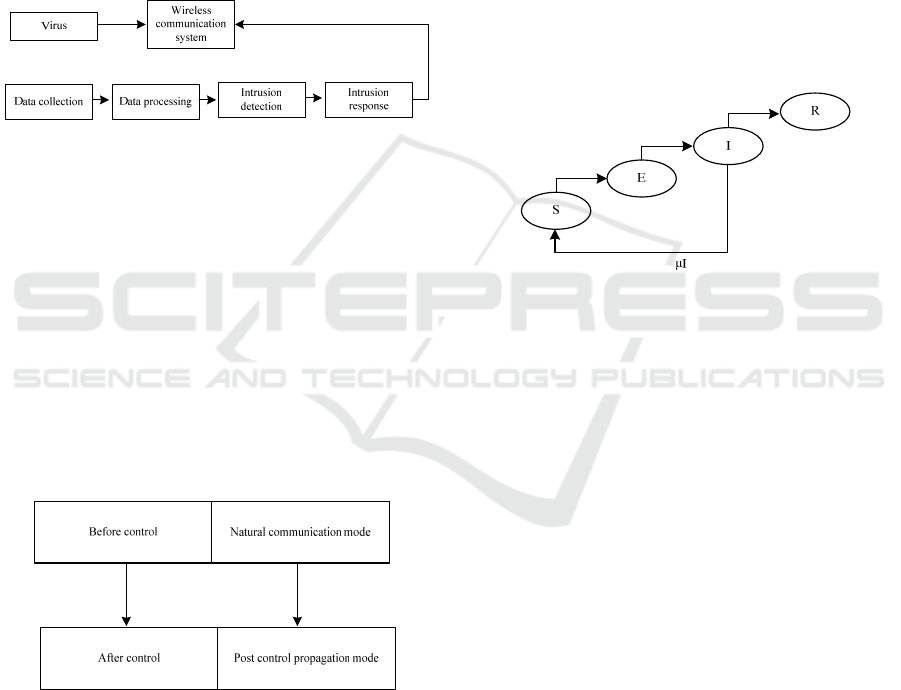

Figure 1: Network attack identification and detection

process

Through the analysis of the above contents, we

can draw the following conclusions: the process of

virus invasion and diffusion in multi hop cellular

networks mainly includes four stages: first, data

acquisition, second, data processing, third, invasion,

and fourth, response

[6]

. Aiming at the spread and

spread of the virus, it is divided into four types:

normal, abnormal, repaired and attacked. The

adjustable parameter is the strength P of insulation

measurement. The infection mode can be divided into

two steps, i.e. "before control" and "after control", as

shown in Figure 2 below.

Figure 2: Schematic diagram of virus transmission sections

The network attack model is a virus that is close

to natural diffusion, and the control after control is a

difference equation based on the isolation strength

after intervention. If the infected boundary cannot be

immunized with the contaminated boundary, a certain

degree of virus infection will occur, which is called

"effective contact"

[7]

. This index reflects the infection

of each infected state node to other state nodes, which

is related to other factors, such as the diffusion

strength of the network, the network connectivity of

the infected node, and the network status. Generally,

in a network node, there are susceptible States,

infected States, immune states, potential states, and so

[8]

. Therefore, in different modes, the probability of

infection will also be different in the same state node.

Since the spread of network virus is often hidden, the

SEIR mode adds the hidden node to the Sir

propagation mode. It is assumed that there is a virus

with the virus in the node, but the virus in the node is

not activated. Therefore, the node can carry the virus

and also transmit the virus to other nodes

[9]

. After the

infected state node is eliminated, there is a great

chance that it will have permanent immunity to the

virus, and then convert it into a node that can be

infected. The situation transition of a typical SEIR

mode is shown in Figure. 3:

Figure 3: The SEIR model

In the identification of network attack, we must

first find out the node of the attack subnet, then

construct its location according to the location of the

node, and determine its accuracy; On this basis, the

fester algorithm is used to encrypt the password file

to resist malicious intrusion and enhance the security

performance of the system. If the basic position and

parameter group of the network node:

()( )( )

{

}

11 2 2

=,,,,,,

ab ab a b

where

()

represents the location from the node to the m-th

malicious attack. The attacked network node will

change

()

before the end of the attack, it can be

used to shorten the distance from the node and display

the wrong location before the end of the attack

[10]

When the child node transmits a data packet from a to

B, it will also intercept the data packet, thereby

causing interference; cause data

B cannot receive the

transmitted point by data

A , expand at this time

, N intercept the data received from the subnet, and

then determine the location of the attack according to

the characteristics of the attack, so as to build a node

location model.

Optimization of Virus Propagation Model in Multi Hop Cellular Hybrid Network Based on Network Attack

567

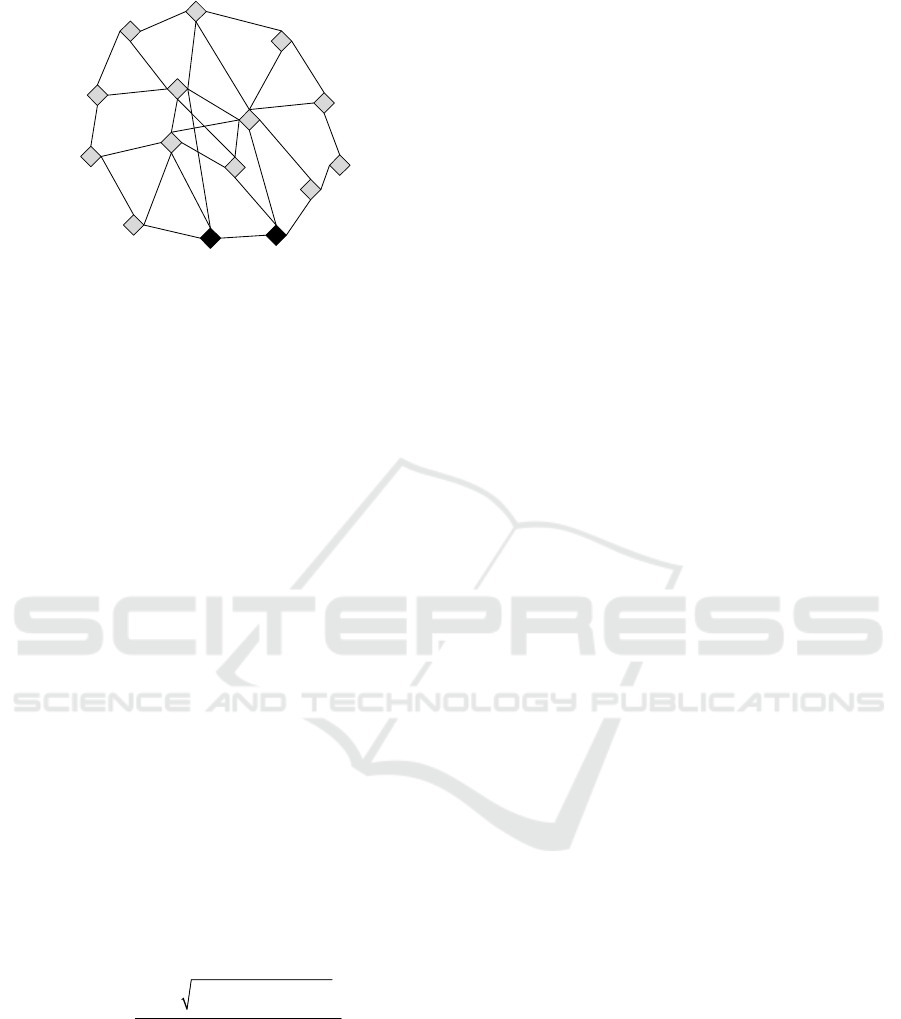

Figure 4: Location identification of malicious nodes

As can be seen from Fig. 4 that the real

coordinates of the malicious node are (a, b), but the

displayed error location is

()

, In this case, the

positioning accuracy of the malicious node will be

reduced. Under normal conditions, the distance

between point A and point B is:

()

=, /

AB m m m

SNab X+Yvt



(1)

According to the formula:

is A to B speed of

point data packet transmission;

is A to B time taken

to point the packet

[11]

. Assume that the proportion of

malicious nodes in all nodes is, and all sub network

nodes are

M , then M selected from network nodes

node combination of is:

D=C −

, Among the

D selection combinations, the probability that at least

one combination does not include malicious nodes is

：

()

AB M

p=S M C Np



′

−− −



(2)

According to

′

,determine M , after that, a new

combination mode is selected, and the distance

between two nodes is calculated by this method, and

it is regarded as a node to be processed. A new

method is adopted to replace the actual position for

accurate calculation:

()()

AB j m j m

Saa+bb

E= V

p(N M)



−− −





−

′

−

(3)

In the formula:

()

select the sub network

node coordinates of the jth scheme. Through the

above reasoning, the node position in the attack sub

network can be obtained, and the accuracy of its

position can be obtained

[12]

. Because of the

differences in network structure, network congestion,

bandwidth, delay, traffic and protocol, and network

nodes, the network propagation and interaction are

greatly restricted. Therefore, it is necessary to further

apply the stochastic mathematical model to the

mathematical modeling of computer virus

propagation to overcome the uncertainty of computer

virus propagation.

2.2 Evaluation Algorithm of Virus

Propagation in Wireless Network

Since the original Sir contains the delayed virus

diffusion mode, this paper further improves the SIR

model. A new method is proposed to study the spread

of virus in Sir mode. Add the attack delay of the

network terminal to this mode

, That is, during the

period from the beginning of the spread to the

intervention, the expenses needed to combat the

infection are recorded as

, The time is denoted by

represents the influence of the virus,

represents how many viruses are affected at t,

represents how much immunity to the virus

[13]

. In

order to build a new improved model, we assume that

the latest one will be infected or affected by the virus,

but the number will remain unchanged every other

period, indicating the number of entries and greater

than 0,

indicating that its resistance to the virus also

exceeded 0; The ratio of those susceptible to infection

to those infected is 0 or more; At this time, the

infected ones can be used to calculate the probability

of virus as

()

; This means that its resistance to this

virus is also above 0; The proportion of computers

susceptible to virus infection exceeds 0; At this time,

the infected computer has the opportunity to perform

computer operations, represented by u; A fixed speed

used to express. Accordingly, the Sir improved

communication mode is used to express:

(1 )wE bsp

μβ

ητ

=− − +

′

(4)

()

uA t z

μγ

ατ

=−+++ −

(5)

If the virus attacks the Internet, it will

when

conducting a network attack, n represents the cost

required for conducting a network attack, and the

above mode is optimized to

and

If we regard

these variables as vectors for optimal solution, then

any

is necessary to satisfy:

≤

, and

necessary to satisfy: 0≤

≤1. This model does not

consider the prevention (pre immune response) of

network users as existence, that is, from the fragile

environment to the transferred environment

[14]

According to the data of the national system

emergency management system, the failure to repair

ISAIC 2022 - International Symposium on Automation, Information and Computing

568

and prevent software vulnerabilities on time is an

important factor causing network attacks. The

proliferation and mutation of network viruses will

make the security of the network and the security

awareness of users constantly improve, and the

upgrading and downloading of the network will also

gradually increase. The spread of the virus depends

on its own characteristics and network topology. The

distribution law of the disease in the epidemic process

of China was discussed to provide scientific basis for

formulating prevention and control measures in the

future

[15]

. There are three traditional immune methods

for complex network viruses: random, target and

acquaintances. For a complex network, it needs a lot

of manpower and material resources to establish a

network with certain immune protection ability.

Therefore, using randomization is a very easy

strategy to achieve

[16]

. The key is to immunize only a

specific network node. The random immune

algorithm can get the same treatment on the larger

node and the lower node in the network. If the

concentration of an immune node in the network is g,

the immune threshold is:

=−

(6)

While the steady-state infection density was:

ρσ ε

−



=≤



−



(7)

Optimization parameters

is the cost of

network attackm

is the incubation period of

computer virus,

is the wait time for network attack.

See Table 1 for details of simultaneous optimization

of these three parameters:

Table 1: Optimization of network attack cost, computer

virus latency and network attack

Serial

number:

Initial value

of attack

cost, waiting

time and

latency

Total number

of infected

computers

under initial

conditions

Optimized

attack cost,

waiting time and

latency

The

combined

maximum

of infected

computers

A 0.5, 0.4, 1.6 35.08 0:56,0:32,1:46 38.72

B 0.2, 1,1 20.18 0:56,0:87,0:87 38.32

The collected data are not all used to detect the

transmission route of the virus, so preliminary

screening, missing value processing, noise

elimination, attribute selection, data standardization

and standardization processing must be carried out

[17]

See Figure 5 for details:

Data filtering

Missing value processing

Noise treatment

Property selection

Data standardization and

normalization

Data to be tested

Start

End

Figure 5: Data processing process

These data cannot be completely used to detect the

infection path of the virus, so preliminary screening,

missing value processing, noise elimination, attribute

selection, data standardization and standardization

processing are required

[18]

. Not all access networks

are secure, and there may be viruses. There is a

probability that the data will be infected after entering

the system, which makes the system infected

[19]

. It is

also possible that after connecting to the system, a

firewall is set up to let the virus enter a new system.

2.3 Construction of Network Virus

Propagation Model

In the multi hop hybrid network, intrusion detection

is an important research content. On this basis,

intrusion detection is carried out based on the

network. This method has good self-adaptive learning

performance, but it may also have problems such as

local optimization and slow convergence

[20]

Therefore, this paper first adopts an improved method

based on genetic algorithm to solve these two

problems. The optimized procedure is shown in

Figure 6.

Optimization of Virus Propagation Model in Multi Hop Cellular Hybrid Network Based on Network Attack

569

Connection weight and learning rate selection

Calculate fitness

Learning using neural network

Whether the requirements are met?

Construction of gene population

Select excellent data

Genetic planning

Start

End

Figure 6: Network virus interception and virus identification

rate

The biggest difference between this mode and the

existing virus diffusion mode is that the connection

between networks can only be used once at most. In

the past, it has been found that in complex networks,

more attention has been paid to the topology and

properties of simple networks. But in social networks,

user behavior plays a very important role. In a social

network, if a node continuously sends messages

containing the virus to neighboring nodes, it will

strengthen the vigilance of other users. Therefore, few

people will convey the same message to their

neighbors. On this basis, an improved algorithm

based multi hop cellular network virus intrusion

propagation path identification model is proposed.

(1) A small part of the collected samples were

randomly extracted and used as preliminary training,

thus laying a theoretical foundation for the

identification of the transmission path of multi hop

cellular virus infection.

(2) Part of the data of a group of original training

sets is extracted, and then the optimal solution is

obtained by genetic algorithm.

(3) Adjust the network based on the optimal

conclusion.

(4) In a wireless communication system,

network detection is performed.

(5) According to the conclusion of the test,

continuously upgrade the knowledge and training

database.

(6) The detection of the invasion and diffusion

pathway of the virus was completed.

Assuming that the multi hop cellular hybrid

network in the attack path stores data in the form of

P, the previous data will be covered by the subsequent

multi hop network. When the attack network reaches

the attack network, the correct attack path will

include:

()

=P 1

′

−

(8)

It can be seen from the calculation results that in

the case of multi hop and multi-point, the probability

of occurrence in the packet is not the same in the case

of multi hop and multi-point, which requires

classification of the attacked IP. After classification,

the form of IP file title is shown in Figure 7.

Figure 7: format of data transmission header after

identification

As shown in the figure 7, the biggest feature of the

immune resource allocation problem of some specific

objects in the scale-free network is the distribution

and imbalance of the number of nodes in the network.

In the network, most of the nodes are very small, but

some large nodes become hubs. Once infected, the

nodes linked to it will be directly infected. By

immunizing these nodes, the boundary between them

and the nodes can be removed, which can greatly

reduce the spread path of the virus and realize the

immunity to the human body. In the multi hop cellular

hybrid network, a random labeling method is used to

represent. When the random number is lower than a

ISAIC 2022 - International Symposium on Automation, Information and Computing

570

given value of X, a labeled information can be

generated to track the control target in the high-speed

network. This mode also reloads the operating system

to represent its infection rate. In addition, the network

worm cooperation of the model will cause users to kill

virus or reinstall, and will make the network return

from the infected state to the vulnerable environment.

In order to simplify the model, this reinfection rate

includes the mechanical reinfection rate caused by the

user's adaptive habits and the mechanical reinfection

rate caused by arbitrary reasons, so as to ensure

network security.

3 ANALYSIS OF

EXPERIMENTAL RESULTS

In order to verify the recognition effect of the model

in this paper, the propagation of network viruses was

discussed through MATLAB 2019 software. If the

simple calculation of k = 0.5814 holds, then

according to the hervez stability criterion τ=0, the

virus equilibrium point is asymptotically stable

locally, and the nodes in each state start to increase

from the initial value, then start to decrease after

reaching the peak, and finally slowly return to the

equilibrium state and tend to be stable.

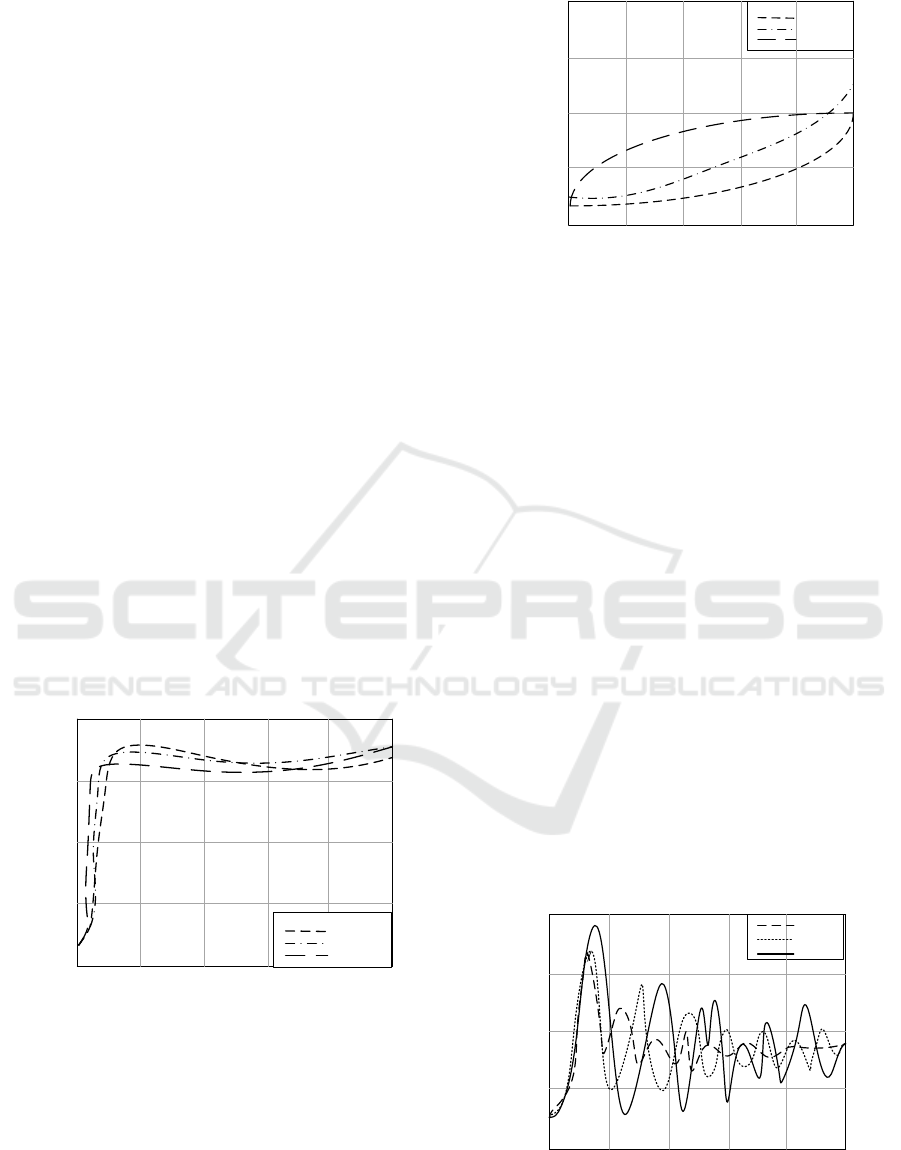

Figure 8 is a graph showing the change of the

number of infected nodes in the regular network and

the random network over time.

810

Time t

Influence rate %

Ɛ=0.2

Ɛ=0.25

Ɛ=0.3

Figure 8: Effect of immune strategy on infected nodes in

this model

Ɛ=0.2

810

Time t

Influence rate %

Ɛ=0.25

Ɛ=0.3

Figure 9: Impact of immune strategy on infected

nodes in traditional neural network model

It can be seen from the figure that in the same

environment, compared with the traditional neural

network model, the model in this paper has a

relatively high impact rate on the infected nodes in

the actual application process, so as to better ensure

the network operation safety. Meanwhile, with the

increase of antibody concentration, that is, the

effectiveness of vaccination, the time that patients

have been infected will be shorter, and the peak

number will be less. In each immune mode, when the

network is in a stable state, the number of infected

nodes will show a stability of L, which means that

when the effectiveness of the immune strategy is

improved, when the network is in a stable state, the

number of infected nodes will gradually decrease,

which means that the number of threatened nodes will

gradually decrease. Therefore, when dealing with

network viruses, we should take appropriate

preventive measures, such as setting firewalls and

anti-virus software, to enhance the immunity of the

network. To ensure network security, the time

evolution law of infected nodes under different

latency delays of network attack viruses is further

studied, as shown in the following Figure 10:

75.36

65.39

55.36

200

400 600

800 1000

Time （s）

I（t）

Figure 10: Time evolution of infected nodes under different

latency delays of network attack virus

Optimization of Virus Propagation Model in Multi Hop Cellular Hybrid Network Based on Network Attack

571

It can be seen from the Fig. 10 that the latency

of the system μ It will play a certain role in the

occurrence and spread of the disease. With the

extension of the incubation period and the large-scale

spread of the virus, the speed of its spread will

gradually accelerate. Over time, the number of the

largest infected nodules decreased, meaning that its

transmission range became smaller. Therefore, when

a network virus is infected, it will attack immediately,

without continuous waiting or lasting too long. Then,

it will be detected early, thus reducing the damage to

the system. Based on the results in FIG. 10, the

comparison records of detection results of several

common methods are shown in Table 2:

Table 2: Calculation results of model operation efficiency

Experimen

tal sample

data (PCs.)

This

method

(%)

Based on

artificial

immune

method (%)

Based on

data mining

method (%)

Machine

learning

based

method

(%)

100 99 91 88 87

200 99 90 86 85

300 98 90 87 83

300 98 90 88 85

400 99 89 85 83

500 97 88 84 81

600 97 89 85 82

700 97 87 84 82

800 97 89 85 81

900 98 88 83 81

1000 98 87 83 81

Average

value (%)

97.9 88.9 85.2 82.6

It can be seen from the table that the algorithm

is used to detect the virus intrusion propagation path

in multi hop cellular network, and the detection rate

reaches 97.9%; The artificial immune method is used

to identify the intrusion path of multi hop cellular

hybrid network, and the accuracy of identification is

88.9%; By using data mining technology, the virus

intrusion path of multi hop cellular hybrid network is

detected, and the recognition accuracy reaches

85.2%; The comparison with the above methods

shows that this method has a good recognition effect,

can detect the intrusion of virus and ensure the

security of the network.

4 CONCLUSIONS

In this paper, we study the repeated cases in the

process of network virus propagation, and use the

original network attack to express the transition rate

between various states, so as to obtain a new multi

hop cellular network virus propagation detection

model. From the simulation results, this model can

well reflect the spread of the virus, so as to ensure the

security of network operation.

ACKNOWLEDGEMENTS

This work is sponsored by: (1) the team for science

&technology and local development service of

Nantong Institute of Technology under Grant No.

KJCXTD312; (2) the science and technology

planning project of Nantong City under Grant

No.JCZ20172,JCZ20151,JCZ20141,JCZ21084,JCZ

21025,JCZ21033; (3)the second batch of industry

university cooperation collaborative education

projects of the Ministry of education in 2021 under

Grant No.202102594016.

REFERENCES

LIAN Jing, FANG Siyu, ZHOU Ya-u. (2020). Model

Predictive Control of the Fuel Cell Cathode System

Based on State Quantity Estimation. Computer

Simulation, 37(07):119-122.

Wang H, Li W. (2021). DDosTC: A transformer-based

network attack detection hybrid mechanism in SDN.

Sensors, 21(15): 5047.

Oliveira N, Praça I, Maia E, Sousa Ｏ. (2021). Intelligent

cyber attack detection and classification for network-

based intrusion detection systems. Applied Sciences,

11(4): 1674.

DU Chunhui. (2020). Optimization design of video

monitoring system on fully-mechanized mining face.

Industry and Mine Automation,46(8):94-100.

Ren H, Deng J, Xie X. (2022). Grnn: generative regression

neural network — a data leakage attack for federated

learning. ACM Transactions on Intelligent Systems and

Technology (TIST), 13(4): 1-24.

Kong X, Ge Z. (2021). Adversarial Attacks on Neural-

Network-Based Soft Sensors: Directly Attack Output.

IEEE Transactions on Industrial Informatics, 18(4):

2443-2451.

Zaripova D A.(2021). Network security issues and effective

protection against network attacks. International

Journal on Integrated Education, 4(2): 79-85.

Do Xuan C, Dao M H.(2021). A novel approach for APT

attack detection based on combined deep learning

model. Neural Computing and Applications,33(20):

13251-13264.

HU Liwei, FAN Zijian, ZHANG Suhang, et al.(2021). Risk

Propagation Mechanism and Application of Urban

Traffic Congestion Factors Based on Complex

Networks. Journal of Transportation Systems

ISAIC 2022 - International Symposium on Automation, Information and Computing

572

Engineering and Information Technology, 21(2):224-

230.

Chaudhari R, Deshpande M. (2022). A Systematic Review

of DoS Attack Prevention Techniques on Delay

Tolerant Network. JOURNAL OF ALGEBRAIC

STATISTICS, 13(3): 3412-3428.

YING Weiqiang, LUO Shijian, ZHANG Lingyan. (2021).

Delay Control Model of Unbuffered Digital System

Based on Neural Network. Computer Simulation,

38(11):249-253.

LI Yong, DONG Sixiu, ZHANG Qiang, et al.(2021).

Research on the Hierarchy of Node Influence in

Attention Flow Network. Computer Engineering,

47(8):109-115,123.

Osman M, He J, Mokbal F M M, Zhu N. (2021). Artificial

neural network model for decreased rank attack

detection in RPL based on IoT networks. Int. J. Netw.

Secur, 23(3): 496-503.

Yang L, Song Q, Wu Y.(2021). Attacks on state-of-the-art

face recognition using attentional adversarial attack

generative network. Multimedia tools and applications,

80(1): 855-875.

Ahmad F, Ahmad A, Hussain I, Muhammad G, Uddin Z,

AlQahtani S A. (2021). Proactive Caching in D2D

Assisted Multitier Cellular Network. Sensors, 22(14):

5078.

Fekih M, Bellemans T, Smoreda Z, Bonnel P, Furno A,

Galland S.(2021). A data-driven approach for origin–

destination matrix construction from cellular network

signalling data: a case study of Lyon region (France).

Transportation, 48(4): 1671-1702.

Sheu T L, Wu Y J, Lin Y H.(2021). An Analytical Model

for a Sectored Cellular Network with Embedded Small

Cells. Journal of Computer and Communications,

9(11): 128-149.

Abdalla A S, Yingst A, Powell K, Gelonch-Bosch A,

Marojevic V. (2022). Open source software radio

platform for research on cellular networked UAVs: It

works. IEEE Communications Magazine, 60(2): 60-66.

Ali S M R, Sarkar M Z I. (2022). Enhancing Security in

Correlated Nakagami-m Fading Cellular Network

Using SC and SSC Diversity Combining. Wireless

Engineering and Technology, 13(1): 1-17.

Borralho R, Mohamed A, Quddus A U, Vieira P, Tafazolli

R.(2021). A survey on coverage enhancement in

cellular networks: Challenges and solutions for future

deployments. IEEE Communications Surveys &

Tutorials, 23(2): 1302-1341.

Optimization of Virus Propagation Model in Multi Hop Cellular Hybrid Network Based on Network Attack

573
