Practical Validation of ORB2 SLAM Mapping on Indoor Logistic

UAV Application

Wahyu A. Candra

, Rochdi Merzouki

and Mohamed Djemai

Manufacture Automation and Mechatronics Engineering Dept., Polman Bandung, Jl. Kanayakan 21, Bandung, Indonesia

CRIStAL, Professor at Ecole Polytechnique de Lille, Universite de Lille, Lille, France

LAMIH, Professor at Universite Polytechnique des Hauts de France, Valenciennes, France

Keywords: Slam, ORB, ROS, Indoor Logistic, Drone, UAV.

Abstract: Aiming at complex unstructured environment of manufacture production line and highly requirement to raise

the production volume, in order to meet the requirement, this study proposes an UAV (Unmanned Aerial

Vehicle) as one of tools or methods to solve this problem. The UAV drone (Parrot Bebop 2) will perform on

part delivery from one point to another inside the manufacture plan using spatial area. To support this AIP

mini manufacture plant is provided by utilize two different rooms as production line and inspection plant.

This study deals with the proposed ORB-SLAM 2 method to generate initial map between inspection room

and production line of AIP plant at 3

floor Polytechnic of Lille. The study showed results while ORB Slam

combined to bebop drone which less memory size, data delay and monocular type camera performs mapping

both in the simulation world by ROS Gazebo and real environment world.

1 INTRODUCTION

Manufacture plants divided into two type of

environment, there are structured or unstructured.

The differences between both are while unstructured

one requires autonomous level. Otherwise, structured

environment is best for automated agents. Most of

conventional manufacture plants are unstructured

therefore more challenging method are required to

implement the autonomous application here (Kolski,

Ferguson, Bellino, & Siegwart, 2006) (Melingui,

Chettibi, Merzouki, & Mbede, 2013).

To provide the autonomous application in the

unstructured environment then SLAM method is

required. A large number of SLAM techniques have

been proposed on many applications. Whether

outdoor or indoor application SLAM, these

techniques have attracted more and more attention for

any environments and many robot types (Taketomi,

Uchiyama, & Ikeda, 2017).

ORB Slam 2 is considered as one method to be

implemented in this case since the method shows

potential result. (Mur-Artal & Tardós, 2017) Since

https://orcid.org/0000-0003-0888-6363

https://orcid.org/0000-0001-9153-6078

https://orcid.org/0000-0002-5375-9470

Bebop 2 drone is used, the mapping could be done

using monocular camera and suitable for GPS denial

environment. Currently, many ORB slam application

used for outdoor activity which GPS use could be

help the performance of the Slam its self (Lakhal,

Koubeissi, Aitouche, Sueur, & Merzouki, 2021).

The study organized in the AIP area at floor 3

Polytechnique de Lille by using their 2 separate

rooms. The AIP area represented as unstructured

plants. One on TP Robotique Industrielle room C-303

as production line and TP Logique Industrielle room

C-304 as inspection room. In the scenario of

delivering small part Bebop drone was sent from

inspection room to production line and vice versa.

The remaining of this paper organized as follows.

In section 2, the SLAM concepts are briefly reviewed

and model of visual SLAM is formulated. In section

3, the system requirement and specification are

discussed. In section 4, the ORB SLAM mapping

process and the experimental validation using

simulation and real world are illustrated. Finally,

conclusions are given in section 5.

976

Candra, W., Merzouki, R. and Djemai, M.

Practical Validation of ORB2 SLAM Mapping on Indoor Logistic UAV Application.

DOI: 10.5220/0011973800003575

In Proceedings of the 5th International Conference on Applied Science and Technology on Engineering Science (iCAST-ES 2022), pages 976-981

ISBN: 978-989-758-619-4; ISSN: 2975-8246

2 WORKING PRINCIPLES

In this section the basic principle of visual SLAM is

discussed.

2.1 Visual SLAM

The history of the research on SLAM has been over

30 years, and the models for solving SLAM problems

can be divided into two categories: filtering based

methods and graph optimization based methods

(Scaramuzza & Fraundorfer, 2011). The map

building problem for an unknown environment with

use of on-board sensors while solving the localization

problem at the same time is known as Simultaneous

Localization and Mapping.

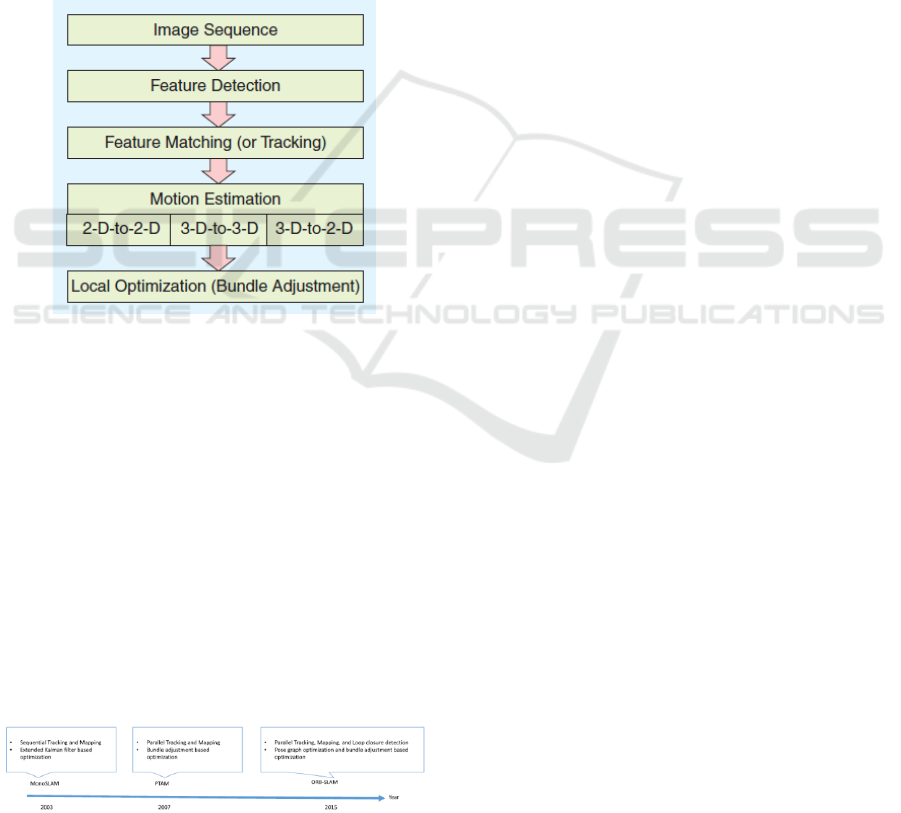

Figure 1: Main Components of Visual Odometry System.

This SLAM was originally proposed to achieve

autonomous control of robots in robotics. Then,

SLAM-based applications have widely become

broadened such as computer vision-based online 3D

modelling, augmented reality (AR)-based

visualization, and self-driving cars, autonomous

underwater vehicles, planetary rovers, newer

domestic robots and even inside the human body.

SLAM methods can be classified at least by used

sensors and output map type and sometimes they have

common underlying math methods (e.g. Kalman filter

or bundle adjustment). SLAM algorithms are tailored

to the available resources, hence not aimed at

perfection, but at operational 9 compliance.

(Taketomi, Uchiyama, & Ikeda, 2017)

Figure 2: Featured-based Method SLAM.

In navigation, robotic mapping and odometry for

virtual reality or real environment, simultaneous

localization and mapping (SLAM) is the

computational problem of constructing or updating a

map of an unknown environment while

simultaneously keeping track of a robot’s location

within it. Popular approximate solution methods

include the particle filter, Extended Kalman filter,

Covariance intersection, and GraphSLAM. In a few

words all these methods are based on Bayesian

inference provide a technique for random value

estimation. (Huletski, Kartashov, & Krinkin, 2015)

2.2 Elements of Visual SLAM

Basic Modules. The basic modules are composed

into framework, which consist of Initialization,

tracking and mapping.

Initialization is required to define a certain

coordinate system for camera pose estimation and 3D

reconstruction in an unknown environment. Then

tracking and mapping are performed to continuously

estimate camera poses. In the tracking, the

reconstructed map is tracked in the image to estimate

the camera pose of the image with respect to the map.

In the mapping, the map is expanded by

computing the 3D structure of an environment when

the camera observes unknown regions where the

mapping is not performed before.

Additional Modules. The following two

additional modules are for stable and accurate

performance. It also included in visual SLAM

algorithms according to the purposes of applications.

It consists of Relocation and Global map

optimization. The re-localization is required when the

tracking is failed due to fast camera motion or some

disturbances and the global map optimization is

normally performed in order to suppress the

accumulative estimation error according to the

distance of camera movement.

3 REQUIREMENT AND

SPECIFICATION

To perform ORB-Slam mapping by Bebop UAV

drone, ROS system is implemented by using both

ROS Gazebo Simulator and Real robot in real world

application.

3.1 ROS System

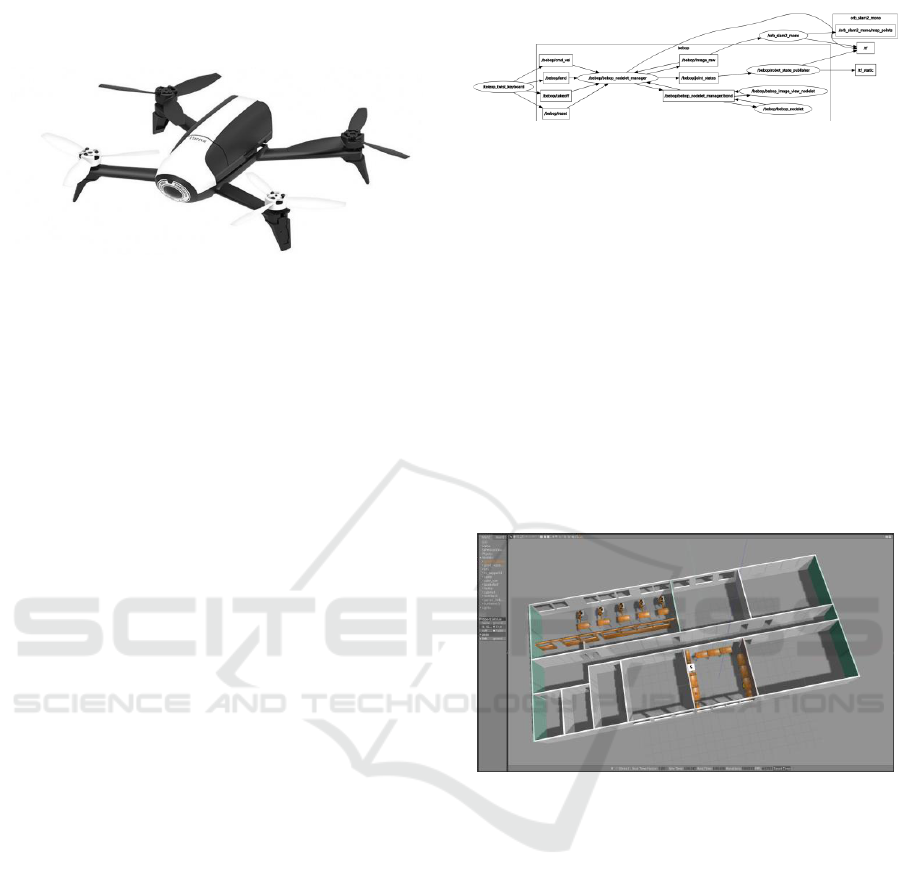

For working with Parrot Bebop 2 in the ROS

environment, firstly Ubuntu OS must be installed in

our workstation. It is because ROS is built from

Practical Validation of ORB2 SLAM Mapping on Indoor Logistic UAV Application

977

3ebian based packages. The Parrot Bebop 2 required

Ubuntu 14.04 LTS version as minimum or Ubuntu

18.04 LTS version as the latest one, however Ubuntu

16.04 LTS version is the common used version. UAV

drone that equipped with software driver which able

to run as well in the ROS platform.

ROS Navigation is fairly simple on a conceptual

level. It takes in information from odometry and

sensor streams and outputs velocity commands to

send to a robot. Use of the Navigation on an arbitrary

robot, however, is a bit more complicated. As a pre-

requisite for navigation stack use, the robot must be

running ROS, have a tf transform tree in place, and

publish sensor data using the correct ROS Message

types. Also, the Navigation Stack needs to be

configured for the shape and dynamics of a robot to

perform at a high level. (Pyo, Cho, Jung, & Lim,

2015)

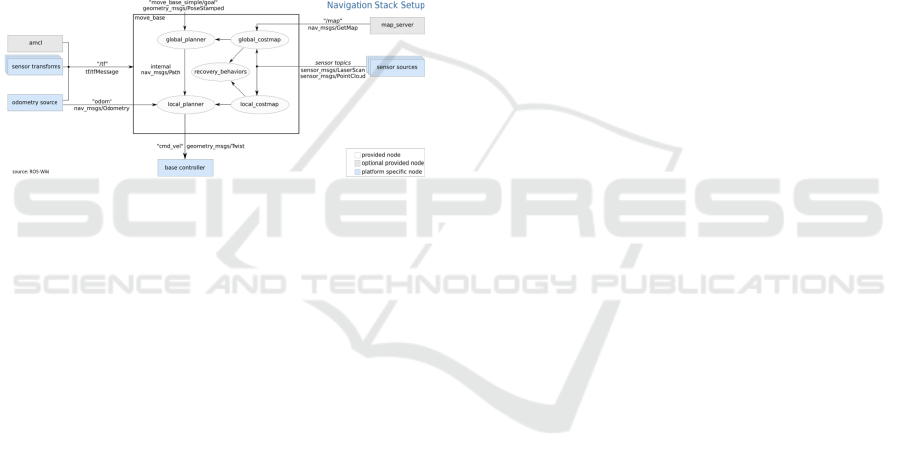

Figure 3: ROS Navigation Stack.

ROS has a package that performs SLAM, named

Navigation Stack, however, some details of its

application are hidden, and considering that the

programmer has some expertise. ROS has a set of

resources that are useful so a robot is able to navigate

through a medium, in other words, the robot is

capable of planning and following a path while it

deviates from obstacles that appear on its path

throughout the course. These resources are found on

the navigation stack (Fabro, Guimarães, de Oliveira,

Becker, & Brenner, 2016).

3.2 ORB SLAM 2 System

ORB-SLAM is the visual SLAM method that utilizes

ORB-features and doesn’t use any external odometry.

The ORB algorithm has several features. During

robot exploration the place recognition database is

constructed. This database contains bag of words

representation of the current camera image that is

bound to the specific position in the map. This

database allows to perform queries with the set of

currently observed ORB descriptors to recognize

current place. Details on the usage of such database

are described in. Another feature of this SLAM is the

visibility graph in which vertices are key frames and

an edge connects two vertices if they share enough

common features. Such graph is useful for finding

several frames with the images of the same object

from different view angles (Mur-Artal & Tardós,

2017).

ORB Descriptor

ORB (Oriented FAST and Rotated BRIEF) are

binary features invariant to rotation and scale (in a

certain range), resulting in a very fast recognizer with

good invariance to viewpoint. ORB was conceived

mainly because SIFT and SURF are patented

algorithms. (Calonder, Lepetit, Strecha, & Fua, 2010)

Oriented-FAST, however, FAST features do not

have an orientation component and multiscale

features. So orb algorithm uses a multiscale image

pyramid. An image pyramid is a multiscale

representation of a single image that consist of

sequences of images all of which are versions of the

image at different resolutions. Each level in the

pyramid contains the down sampled version of the

image than the previous level. Once ORB has created

a pyramid it uses the fast algorithm to detect key

points in the image. By detecting key points at each

level ORB is effectively locating key points at a

different scale. In this way, ORB is partial scale

invariant.

Steered BRIEF, allow BRIEF to be invariant to

in-plane rotation. Matching performance of BRIEF

falls off sharply for in-plane rotation of more than a

few degrees. A more efficient method is to steer

BRIEF according to the orientation of key points.

rBRIEF is steered BRIEF by applying greedy

search algorithm for set of uncorrelated tests on it.

Therefore the result of rBRIEF has significant

improvement in the variance and correlation over

steered BRIEF.

Bundle Adjustment

ORB-SLAM 2 performs BA to optimize the

camera pose in the tracking thread (motion-only BA),

to optimize a local window of key frames and points

in the local mapping thread (local BA), and after a

loop closure to optimize all key frames and points

(full BA). ORB-SLAM 2 use the Levenberg–

Marquardt method implemented in g2o (“general

graph optimization”).

Motion-only BA optimizes the camera orientation

and position. Motion-only BA optimizes the camera

orientation and all points seen in those key frames.

Full BA is the specific case of local BA, where all key

frames and points in the map are optimized, except

the origin key frame that is fixed to eliminate the

gauge freedom.

3.3 UAV System

Parrot, a France-based company, has been on a hit or

miss run with the drones they released in the past

years. The AR.Drone 2.0 and other previous models

iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science

978

have had bugs and glitches the company had to iron

out after their release.

Figure 4: Parrot Bebop 2.

Bebop has on-board sensors for autonomous

flight through the use of GPS for guidance. The

Bebop also has a forward-looking camera for aerial

photography or as sensor input in the Visual SLAM.

The Wi-Fi communications module of Bebop allows

manual control and control by a ROS package called

“bebop autonomy”.

Bebop 2 has hardware specification as followed;

Dual core processor with quad-core GP, 8GB flash

storage system, Built-in GPS: GPS + GLONAS,

performance of 1280kW motor. It has also 14

megapixels wide-angle CMOS camera with 3 photo

formats: RAW, JPEG, DN and Full HD 1080p video

with unique digital image stabilization. It is

embedded with ultrasound sensor, altimeter sensor,

IMU sensor and optical flow camera. Bebop equipped

with 802.11a/b/n/ac Wi-Fi, Wi-Fi MIMO with

2.4GHz antennas.

4 IMPLEMENTATION AND

RESULTS

4.1 ROS Setup

Git is a tool for installation, programming and

developing version of program. Prior to start

programming use some related source of package

links that will be used on this topic as stated in the

previous section.

Parrot-Sphinx aims to run Parrot Bebop 2 both in

the Gazebo simulation environment by firmware the

driver of drone on PC and as well run real robot at the

same time.

To perform both simulation and real environment,

the main core running in ROS platform is by monitor

and diagnose the nodes and topics using rqt_graph as

sown.

Figure 5: Node and Topics Graph.

To have proper result both in simulation and real

world, TF transformation must be set up where origin

of of TF before mapping is odom and after mapping

process is map.

4.2 Simulation Environment

Simulation World. Prior to work in simulation, the

environment, it is called world in the gazebo

simulator, must be prepared. It can be constructed

from either model of Gazebo or own built in model.

In our work, the world is built based on the building

layout of TP Robotique Industrielle room C-303 and

TP Logique Industrielle room C-304 of Polytech Lille

as drawn at Figure .

Figure 6: Production Room World Simulation in Gazebo.

Room C303 has 6x9 m

in area which consist of

5 arm-robot with production plant installed. Room C-

304 has an area 6x6 m

which consist of inspection

plant table and surrounded by laboratory benches.

The mapping path which departed from inspection

table to production room then went back to inspection

room took about 100 m with coverage area about 115

and surrounded wall area about 261 m

Simulation Mapping. For the simulation, the

mapping process, using Parrot Bebop 2 and ORB-

SLAM, took about 1 hour for the 115 m

of coverage

area.

Practical Validation of ORB2 SLAM Mapping on Indoor Logistic UAV Application

979

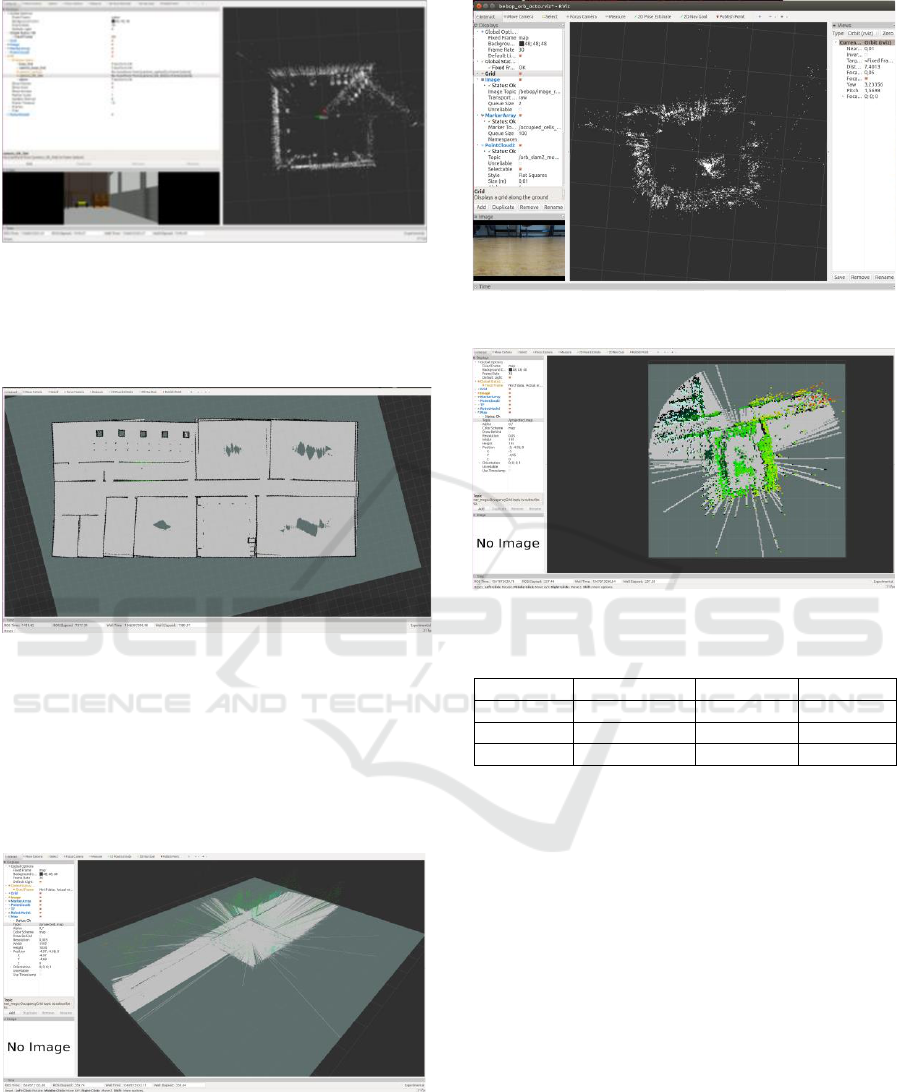

Figure 7: World Simulation for ORB-SLAM Mapping

Progress in RVIZ.

And result of simulation mapping showed as

below,

Figure 8: 2D Mapping Result in RVIZ.

4.3 Real Environment

In the real robot and environment, we don’t create

simulation world. The mapping actions were taken

directly use Parrot bebop drone in real environment

as seen at Figure .

Figure 9: Real Environment 3D Map.

Figure 10: Real robot 3D mapping progress in RVIZ.

Figure 11: Real Environment 3D Point Cloud Mapping.

Table 1: Real robot and environment mapping process.

Attempt

Duration

Bag file

File

58 min.

232 GB

corrupted

32 min.

128 GB

corrupted

40 min.

160 GB

good

For real robot and environment, the best mapping

process took about 40 minutes and resulted 160GB of

recorded bag file. However, the map file its self only

consumed 1% of the bag file.

5 CONCLUSIONS

The result showed better in Simulation than in real

world environment. It is due to real world has more

un-controllable variable such as, variety of light along

with drone’s path and dynamically human obstacle.

The result showed less efficient while ORB Slam

method combined into Bebop 2 drone. The lacked

results due to less memory, data transmission delay

and monocular type specification of used Bebop 2

drone.

For further research, required other SLAM

method which probably uses less data or use other

UAV which has better data transmission and

iCAST-ES 2022 - International Conference on Applied Science and Technology on Engineering Science

980

improved camera specification such as stereo camera

or RGB-D camera.

ACKNOWLEDGEMENTS

This work has been supported by AIP and

Polytechnique de Lille and CRIStAL Universite de

Lille, CNRS, The Ministry of Higher Education and

Research and The National Center for Scientific

Research under the LAI Project.

REFERENCES

Calonder, M., Lepetit, V., Strecha, C., & Fua, P. (2010).

Brief: Binary robust independent elementary features.

European conference on computer vision, 778-792.

Fabro, J., Guimarães, R., de Oliveira, A. S., Becker, T., &

Brenner, V. A. (2016). ROS Navigation: Concepts and

Tutorial. Swiss: Springer International Publishing

Switzerland.

Huletski, A., Kartashov, D., & Krinkin, K. (2015).

Evaluation of the Modern Visual SLAM. Artificial

Intelligence and Natural Language and Information

Extraction, (pp. 19-25). St. Petersburg, Russia: IEEE.

Kolski, S., Ferguson, D., Bellino, M., & Siegwart, R.

(2006). Autonomous driving in structured and

unstructured environments. IEEE Intelligent Vehicles

Symposium (pp. 558-563). IEEE.

Lakhal, O., Koubeissi, A., Aitouche, A., Sueur, C., &

Merzouki, R. (2021). Autonomous navigation through

a system of systems cooperation. 2021 16th

International Conference of System of Systems

Engineering (SoSE) (pp. 49-54). Västerås: IEEE.

Melingui, A., Chettibi, T., Merzouki, R., & Mbede, J. B.

(2013). Adaptive navigation of an omni-drive

autonomous mobile robot in unstructured dynamic

environments. 2013 IEEE International Conference on

Robotics and Biomimetics (ROBIO) (pp. 1924-1929).

Shenzen: IEEE.

Mur-Artal, R., & Tardós, J. D. (2017). Orb-slam2: An open-

source slam system for monocular, stereo, and rgb-d

cameras. IEEE transactions on robotics, 33(5), 1255-

1262.

Pyo, Y., Cho, H., Jung, L., & Lim, D. (2015). ROS Robot

Programming. Seul: Robotis Co.

Scaramuzza, D., & Fraundorfer, F. (2011). Visual odometry

[tutorial]. IEEE robotics & automation magazine, 80-

92.

Taketomi, T., Uchiyama, H., & Ikeda, S. (2017). Visual

slam algorithms: A survey from. IPSJ Transactions on

Computer Vision and Applications, 1-11.

Practical Validation of ORB2 SLAM Mapping on Indoor Logistic UAV Application

981
