Adaptive Data Security for Autonomous Driving Vehicles

David Yu

Hillstone Networks Inc. Santa Clara California U.S.A.

Keywords: Autonomous Driving, ADAS, AD, Adaptive Data Security, Intelligent Connected Vehicle.

Abstract: With the rapid technological advancement of automotive EE architecture, modern autonomous driving

(ADAS/AD) vehicles have become high performance computer system on the wheels. There is huge amount

of data constantly being generated on an autonomous vehicle. These data can originate from different sources,

including vehicle platform, ECUs, sensors, cockpit, connected vehicle networks (V2X). These data are

significant heterogenous in nature and can have quite different processing and security requirements. A large

amount of the data can be sensitive under certain circumstances, attackers can conduct malicious attacks from

vehicle sensor jamming to user data breaches which can compromise driving safety and even cause national

security risks. It is vital to ensure data security and control on autonomous vehicles and vehicle networks and

protect data from cyberattacks.

This paper presents an adaptive data security solution for autonomous driving vehicles, focusing on

ADAS/AD domain. The solution aims to provide the end-to-end data security solution during its entire

lifecycle. It is based on Service Oriented Architecture (SOA) design methodology and expand legacy cyber

security techniques on the autonomous vehicles. It also aims to provide flexibility for future upgrade on its

data classifications and data security policies.

1 INTRODUCTION

Automotive E/E architecture (Andreas, 2021) has

evolved from its original form that has large number

of distributed, dedicated ECUs, each performing a

specific task to today’s fewer numbers, more

centralized high-performance functional domain

control units where much more complicated

functionalities can be developed on these domain

control units. Looking into the future, through V2X

and vehicle cloud collaborations, more functions can

be done on vehicles as well as in the cloud. This

collaboration helps to further improve autonomous

driving safety as well as user experiences.

The centralized Domain Control Unit (DCU) on

modern autonomous vehicle is essentially a high-

performance computer (HPC) system with powerful

parallel computing capabilities using multiple CPUs

and GPUs. Driven by modern Software Defined

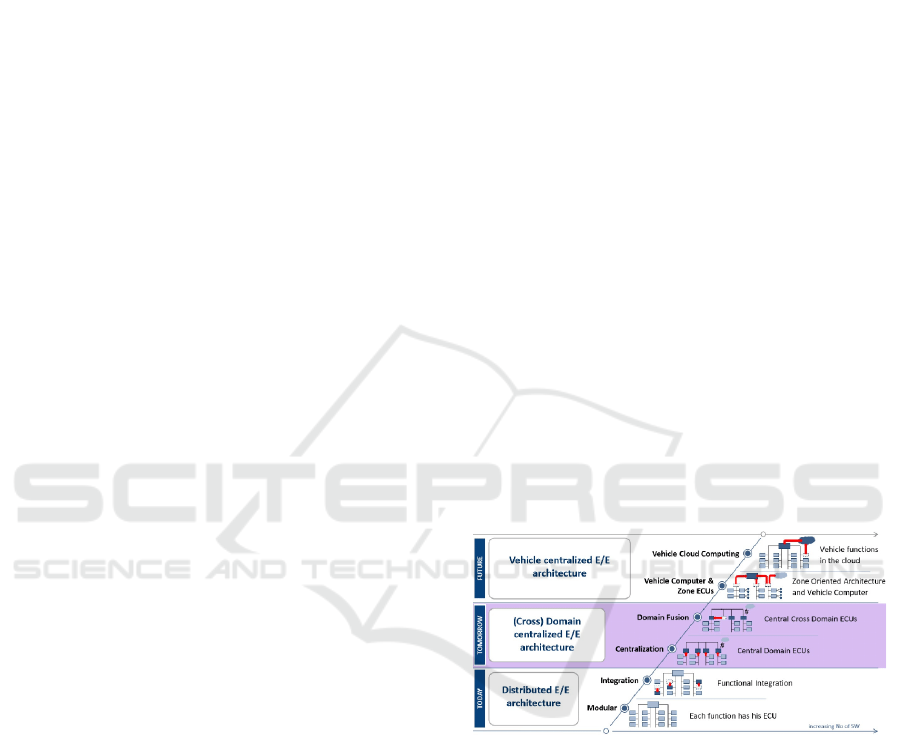

Figure 1: Example of E/E Architecture Evolution. Source:

Bosch.

Vehicle (SDV), more complex deep learning and

other AI algorithms for autonomous driving

applications and services are developed on this

computing system using modern software

engineering design to support L3+ level automation.

This makes the modern autonomous vehicle

essentially “A High-Performance Computer on the

Wheel”.

Modern autonomous driving vehicle is built upon

heterogeneous hardware platform, including multiple

sensors, vehicle control units, AI hardware engines

and other platform hardware. ADAS/AD functional

software pipeline typically consists of perception,

658

Yu, D.

Adaptive Data Security for Autonomous Driving Vehicles.

DOI: 10.5220/0012010900003612

In Proceedings of the 3rd International Symposium on Automation, Information and Computing (ISAIC 2022), pages 658-663

ISBN: 978-989-758-622-4; ISSN: 2975-9463

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

fusion, localization, planning and control, utilizing

deep learning and other AI based algorithms. The

software architecture typically based on Service

Oriented Architecture (SOA) (Rumez, 2020) to

provide layered, modular, scalable support for higher

level ADAS/AD functions and applications

development. This is also critical to develop large

scale software engineering project, especially to

support L3+ level automations.

The other significant characteristics of modern

autonomous vehicles is that huge amount of data is

constantly generated and collected from the vehicles,

usually in the level of terabytes per hour. These data

are generated from multiple sources, such as from

vehicle powertrains, from ADAS/AD sensors, from

deep learning algorithms, from applications as well as

from the cockpit where driver related data are

generated. These data are highly heterogeneous in

nature, they can be structured or un-structured, they

also have different processing and performance

requirements. For example, the data collected by

cameras, radar, lidar and other sensors are upload to

cloud platforms where they are used for continuous

deep learning model training and optimization;

vehicle runtime data collected are used by OEMs in

their vehicle network operational centers.

2 SECURITY RISKS ON

AUTONUMOS DRIVING

VEHICLE

The complexity of modern autonomous driving

vehicles has increased dramatically in both hardware

and software architectures, the amount of

heterogeneous data generated, complexity of ADAS

algorithms and applications, the data processing

pipeline, V2X networking and vehicle cloud

collaborations etc. The amount of software codes also

increased dramatically, this complexity in software

can introduce more vulnerabilities and security risks.

In recent years, hacking and malicious attacks

toward autonomous vehicles and vehicle networks

rose dramatically. In one report by Automotive

Management Online, attacks on connected cars rose

by a staggering 99% (lhpes, 2022). In another report

by China Software Testing Centre, 60% of the

vehicles have various security risks, from physical

interfaces to web browsers that could allow hackers

or malicious attacks to infiltrate and install malwares

or viruses to steal sensitive data. Today information

security on autonomous vehicles including network

security, data security has become the must-have

requirements for auto manufacturers and their

suppliers imposed by government and industry

regulations (Data Security Law, 2021) (Data Security

WP, 2020) (am-online, 2020). There are several

major industry standards and regulations focusing on

automotive functional and information security. For

example, ISO/SAE 21434, a drafted standard on

engineering requirements for cybersecurity risk

management. On the other hand, common automotive

operating system software or middleware like ROS2,

AUTOSAR have also added stronger security

implementations in their newer releases

(AUTOSAR,2020) (ROS2, 2019).

In summary, the complexity of hardware and

software of modern autonomous vehicles introduce

more security vulnerabilities, exposing more

attacking points and larger attacking surface.

Information and data security are critical for

autonomous vehicles and vehicle networks to be

widely adopted.

2.1 Data Security Risks

On average, a self-driving car can generate 100GB of

data per second, with L4-L5 of autonomous level and

with more cars are connected, that amount will go

even higher. These data are generated and collected

from within different vehicle domains including

vehicle platform control, ADAS/AD, and cockpit

domains. These data are valuable assets for

automakers, service providers, and consumers.

Here we focus on the data generated and collected

from ADAS/AD domain. For higher level of

automation support, multiple cameras, radars, lidar,

IMU, GNSS, HDMap and other sensors collect large

amount of raw data constantly. These raw data are

stored in the memory and feed into deep learning

algorithms for object detection, traffic sign detection,

lane detection and other AI based perception

algorithms. During perception, fusion, localization

and planning stages, intermediate results are

produced and used as inputs for computations of next

stage in the pipeline.

Hackers or attackers can infiltrate into these data

processing stages and conduct malicious activities.

This not only can potentially cause driving safety

issues, but it can also impose state security issues as

the external environmental data, geographic location

data, landmark data as well as vehicle runtime data

are constantly collected, processed, and uploaded to

the cloud platform in real time, the data collected and

uploaded could include sensitive information under

certain circumstances. To be able to control and

Adaptive Data Security for Autonomous Driving Vehicles

659

protect ADAS/AD and other vehicle runtime data is

critical on autonomous vehicles.

3 ADAPTIVE DATA SECURITY

ON AUTONOMOUS VEHICLE

Data security on the autonomous vehicle has become

a must have requirements for automobile

manufacturers. While many enterprises level or

cloud-based data security techniques and solutions

are available, given the specific operational

environment and limits in computing power and

storage resources, data security solutions on an

autonomous vehicle have their unique requirements.

3.1 Requirements

A data security solution on an autonomous vehicle

should meet these requirements.

3.1.1 End-to-End Security

From the time data is generated and collected, for

example, the raw data from the camera, lidar, radar

and other sensors, or the intermittent results from the

AI driven perception or fusion algorithms, throughout

their lifecycle, these data are subjected to hacker

attacks or other malicious infiltrations, data security

should be able to track, control and secure every stage

from the beginning to the end of data lifecycle

including data collection, storage, consumption,

uploading, transport etc. centering around the each

stage in ADAS/AD data processing pipeline,

applying different security mechanisms during each

different phase.

3.1.2 Automotive Grade

Any data security solution on the autonomous

vehicles needs to meet the automotive grade level of

system and functional safety requirements. The data

plane of the data security services is part of the overall

ADAS/AD data processing pipeline, it also needs to

meet the real time performance and reliability

requirements. The data security service design and

implementation usually need to be implemented

inside the functional or middleware of ADAS/AD

operating system software, but at the same time, it

need to be decoupled from the main data processing

pipeline to minimize any performance impacts as well

as to provide flexible upgrade path. The data security

modules also need to meet both the software

engineering process and product functions that

required by corresponding standards such as ISO

26262, ASPICE and ISO 21434 etc.

3.1.3 Lightweight

Even with today’s high performance domain

controller, usually hundreds of TOPS to support L3+

level of autonomous driving applications, computing

resources are still relatively scarce on the vehicle.

On the other hand, auto OEMs are often very cost

sensitive in their mass production products, any

additional add-on services that potentially have cost

impact will face adoption challenges. Therefore,

data security solution needs to be light-weighted,

easy to deploy, minimizing the performance and cost

impacts.

3.1.4 Flexible and Upgradable

Information security and data security for

autonomous driving and intelligent connected

vehicles are very active areas in the industry. A lot of

government lead, industry driven standards,

guidelines and regulations are in the making. They are

constantly evolving, enhancing towards completions.

Today’s data security solutions on autonomous

vehicles also need to be able to provide flexible

design to migrate in sync with the latest development

of related standards and regulations through OTA

upgrade.

3.2 Adaptive Data Security on

Autonomous Vehicles

This section discusses the overall design principles of

the adaptive data security solution on the autonomous

vehicle.

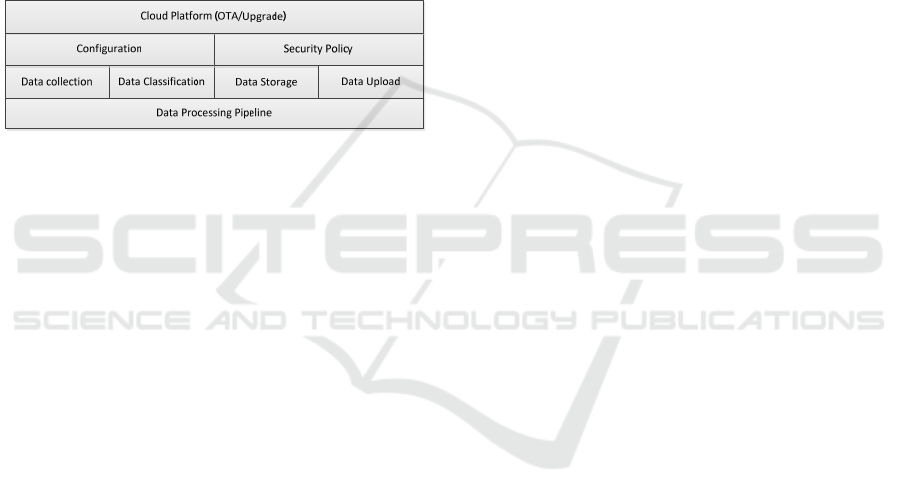

3.2.1 Adaptive Data Security Based on

Service Oriented Architecture (SOA)

The overall design of data security solution on

autonomous vehicles uses Service Oriented

Architecture (SOA) principles. It mainly focuses on

data security and control within ADAS/AD domain.

It consists of two main parts: the management plane

and the security service data plane. Security

protection for each phase of data lifecycle is designed

as software service module. These software service

modules are installed on the main ADAS data flow

pipeline as pluggable services and integrated with

data processing pipeline using data interfaces APIs.

ISAIC 2022 - International Symposium on Automation, Information and Computing

660

The management plane includes configuration

and security policy modules. Initial configuration and

security policies are loaded into the operating system

software from manufactures. They can be upgraded

via OTA later, through well-defined data interface

and APIs, providing flexible configuration or security

policy upgrades to each service module.

The data plane consists of several major service

modules running in real time, including Data

Collection, Data Classification, Data Storage, Data

Upload etc. Each of these service modules interacts

with the management plane at north-bound interface,

it also has south-bound interfaces to interact with the

run time data processing pipeline.

The overall components are shown in the

following figure 2.

Figure 2: Adaptive Data Security Components

The adaptive nature of this data security solution

for ADAS/AD domain refers to the following

functions and capabilities:

 Adaptive SOA based Framework: Management

plane and data plane are separated. Each real

time data plane service module is essentially a

light-weighted software module and can be

installed into overall data processing pipeline.

The north-south bound data interfaces are well

defined APIs. These services can be executed in

both mirroring mode and inline mode depending

on requirements. The management plan modules

can be updated using OTA. This makes overall

framework elastic and dynamic.

 Adaptive data classification: Data can be tagged

or labelled according to the classification rules

defined in configuration policy. These rules can

be statically configured and loaded during

system initialization time. They can also be

updated at later time through configuration

policy module using OTA. This way the security

control of data can be adaptive to different use

cases and runtime environments.

 Adaptive data security control: Security control

over the classified data can also be adaptive to

the real runtime operational environment and

circumstances. For example, security policies

can be enforced based on geographic locations,

coordinate positions, based on different data

labels, perceptive environment, object detection

results etc. Security actions can include those

such as data masking, data upload disabling, data

encryption for storage and transmission etc.

These security criteria and actions, defined in

security policies, can also be updated using OTA,

providing effective control during runtime.

3.2.2 Data Collection

Autonomous vehicles collect data from driving

environment through multiple sensors like camera,

radar, lidar etc., simultaneous vehicle data are

collected from IMU, location data are collected from

GNSS or HDMap. Raw data are stored in the on-

board memory and are feed into deep learning

perception and other AI algorithms for fusion,

localization, and planning. Intermediate data are the

outputs of deep learning and other AI algorithms and

are used as the inputs for the next stage in data

processing pipeline. As raw or intermediate data are

collected, data tags or labels, together with other

context information are built as meta descriptors

according to the configuration policies and set in meta

data descriptor buffers to represent the priority,

security, and other control characteristics for different

classes of data.

3.2.3 Data Storage

Raw data, intermediate results data from algorithms

and computing are stored in different on-board

memory areas. Metadata descriptors are associated

together with these classified data buffers throughout

their lifecycles. Different classes of data in different

storage have different security and control

mechanisms according to the configuration policies,

including access control, secure storage etc.

3.2.4 Data Classification

Data generated on the autonomous vehicles are

heterogenous in nature. They can be structured or un-

structured, each has its own different processing or

performance requirement. To classify the data

properly is vital for proper data security control

throughout their lifecycles.

There can be different ways to classify data. It is

important to adhere and follow data classification

methodology and guidelines defined by the industry

standards or government regulations.

Data classifications can have different levels, data

security and control policies can apply to each of

Adaptive Data Security for Autonomous Driving Vehicles

661

these levels, providing better security and control

granularities.

The following is an example of data classification

with three levels.

Table 1: Data classification with three levels

Level l Level 2 Level 3

vehicle ID

Vehicle Data vehicle license, model, OEM

ECU

camera road, human, env

lida

coordinates

rada

env measure

IMU

Perce

tion Data HDMa

coordinates

GNSS

coordinates, trajectory

V2X

ect ob

ect classification

system steering angle, speed,

acc..

Decision Data driver operation

vehicle state

vehicle

erf speed, acc, angel

Runtime Data module runtime

GNSS, IMU, ADAS,

OBU, cameras

runtime logs

Associated with each classified data category is a

set of security and control attributes or requirements,

covering each stage during the data lifecycle such as

data collection, storage, usage, and transmission. The

definitions of these requirements are usually drawn

from industry standards or government regulations.

For example, for collection, whether needs legal

qualification or authorization; for storage, whether

needs encryption, minimal storage timeout; for usage,

whether needs access control or privileges; for

transmission, whether needs to use private line,

whether needs encryptions etc.

The following is an example of data control

for each data service module.

Table 2: Data control example for each data services.

Collection Storage Usage Transport

Legal

Authorization

Storage

Timeout

Access

Privile

Encryption

Methods

User Consent Encryption

Methods

Auditing Private

Networ

User

Notification

Access

Control

Monitoring Public

Networ

3.2.5 Data Security Policy

Security policies in traditional firewall, IPS, IDS

products usually consist of three types of elements:

scope definition, condition matching and actions.

For example, a typical firewall policy usually has

schema like:

FROM entity-1 TO entity-2 IF criteria-matching

THEN action

Next generation firewall further enriches the

security policies to incorporate more powerful and

flexible elements such as applications, users or user

groups, behaviours, and other contexts in each of

these building blocks.

In data security solution design, traditional

network or application security policies will be

further expanded in these categories to incorporate

those elements that are unique in autonomous driving

circumstances.

 Scope: Besides legacy security scope entities like

security zone, user, or applications etc., data that

labelled with proper classifications can also be

included in the scope according to data source

types such as camera, radar, GPS, IMU etc.

Scope can further include each level defined in

data classifications or combinations of them.

 Criteria: Criteria matching can be expanded to

include geographic location or coordinate

position-based criteria or other normalized

schema that can be used to describe the location,

coordinate positions or areas that the vehicle is

currently located in. It can also use results

classifications from ADAS/AD algorithms such

as object type, traffic sign, landmarks and other

normalized entities defined in the autonomous

driving environmental model.

 Action: Besides action in traditional network

security policies such as DENY, PASS, LOG

etc., data security actions can also include

NO_COLLECT, NO_UPLOAD, DO_MASK,

DO_ENCRYPT and others. These actions can be

done for each level in data classification to

provide better granularities of security control.

A simplified data security rule example can have

following contents:

data_source == CAMERA_DATA &&

data_class_prio == HIGH_PRIO &&

data_class_sec == HIGH_SEC &&

object_type == RESTRICTED_ZONE

THEN

# Stop upload if in restricted zone

data_upload = NO_UPLOAD

END

data_source == CAMERA_DATA &&

data_class_prio == HIGH_PRIO &&

data_class_sec == HIGH_SEC &&

object_type == RESTRICTED_ZONE

THEN

ISAIC 2022 - International Symposium on Automation, Information and Computing

662

# Stop data upload in restricted

# Zone and mask LV license plate

data_upload = NO_UPLOAD

data_sec_proc = DO_MASK

END

Data security policies need to be standardized.

The rule schemas need to be defined in a normalized

way. Security policies can be described using XML

or YAML files in which more complex security rules

and logical relationships can be defined.

In traditional network, security policies are

installed on device or in the cloud and apply to each

packet received on the wire. In case of autonomous

vehicle computing environment, various computing

tasks are usually running in a timer based executing

loop controlled by OS kernel task scheduler, usually

every 10ms in SOC. Data security services are also

executed in a timer-based loop as separate tasks.

4 CONCLUSIONS

In this paper, we presented an adaptive data security

framework on the autonomous driving vehicles. It

aims to provide end to end data security controls

throughout the lifecycle of the heterogeneous data on

the autonomous vehicles. From the time they are

generated, collected, stored, transmitted, and

uploaded, adaptive to the different scenarios on how

data are classified, prioritized, protected, and

transmitted. It also aims to provide agility and

flexibility in term of future upgrade through OTA so

the existing design and implementation can be

leveraged. It should be noted that there are future

work needs to be done including the completion of

each level of data classification, standardization and

normalization security policy and control rules.

REFERENCES

Andreas Lock, “Trends of Future E/E-Architectures”,

Accessed: Oct. 18, 2021. https://www.gsaglobal.org/

wp-content/uploads/2019/05/Trends-of-Future-EE-

Architectures.pdf

Rumez, Marcel & Grimm, Daniel & Kriesten, Reiner & Sax,

Eric, “An Overview of Automotive Service-Oriented

Architectures and Implications for Security

Countermeasures”. IEEE Access. 8. 10.1109/ACCESS,

2020.

Data Security Law of the People's Republic of China

http://www.npc.gov.cn/npc/c30834/202106/7c9af12f51

334a73b56d7938f99a788a.shtml

Requirements on Security Management for Adaptive

Platform https://www.autosar.org/fileadmin/

user_upload/standards/adaptive/201/AUTOSAR_RS_S

ecurityManagement.pdf

ROS2 DDS-Security Integration https://design.ros2.org/

articles/ros2_dds_security.html

https://www.lhpes.com/blog/why-is-cybersecurity-

important-for-autonomous-vehicles

Data Security for Autonomous Driving – Whitepaper

http://www.impcia.net/Uploads/report/2020-04-

28/5ea7dba33e4e7.pdf

https://www.amonline.com/news/manufacturer/2020/06/04

/cyberattacks-on-connected-cars-rise-by-99

Connected Vehicles – Whitepaper

https://www.amonline.com/news/manufacturer/2020/0

6/04/cyberattacks-on-connected-cars-rise-by-99

Adaptive Data Security for Autonomous Driving Vehicles

663
