Prediction Model of Stroke Based on Few-Shot Learning

Xujun Wu

and Guoxin Wang

Yantai Vocational College, Yantai 264670, Shandong, China

Keywords: Stroke, Machine Learning, Few-Shot Learning, Decision Tree, Bagging Algorithm.

Abstract: Stroke has the characteristics of high morbidity, high disability rate and high mortality, and has become the

first cause of death in China; timely screening of specific populations and prediction through prediction

models are of great significance for disease risk control. In this paper, we use machine learning algorithm to

intelligently process the stroke screening data, and reasonably expand the small sample data. On this basis,

we use decision tree and Bagging algorithm to establish a stroke prediction model, and discuss the modeling

process and model parameter selection in detail. The test results show that the prediction model based on the

extended data set runs well on the test data set, and this method provides a reference for Few-shot learning

modeling.

1 INTRODUCTION

"Stroke" is also known as "cerebrovascular accident"

(CVA). It is an acute cerebrovascular disease, which

is a group of diseases caused by brain tissue damage

due to sudden rupture of cerebral blood vessels or

blood blockage that prevents blood from flowing

into the brain. The survey shows that stroke in urban

and rural areas has become the first cause of death in

China, and also the primary cause of disability for

Chinese adults. Stroke is characterized by high

morbidity, mortality and disability. There are many

etiological factors of stroke, among which vascular

risk factors are considered to be the most important.

Other important factors include bad living habits,

gender, age, race, etc. At present, there are more than

10 million new strokes worldwide every year, which

brings serious burden to society and families. Due to

the lack of effective treatment, effective stroke

prevention measures are urgently needed. According

to the 2013 Global Burden of Disease (GBD) study,

more than 90% of strokes are caused by adjustable

risk factors, and more than 75% of stroke patients

can reduce their occurrence by controlling metabolic

and behavioral risk factors. Daily living habits are

the most controllable factor and the most effective

prevention strategy to prevent cerebrovascular

diseases, such as smoking control, alcohol control,

salt control, keeping good habits of work and rest,

which belong to the primary prevention means;

Secondary prevention measures include drug

intervention, smoking cessation, blood sugar control

and other measures.

The establishment of stroke prediction model is

of great significance for the prevention of stroke.

Stroke prediction can avoid unnecessary waste of

medical resources. In view of this, many recurrence

risk models of ischemic cerebrovascular disease

have been established internationally. Early

prediction models mainly use risk factors as the

main evaluation content, which can effectively

stratify the risk of ischemic cerebrovascular disease,

but their reliability and validity are limited. In recent

years, with the rapid development of neuroimaging

and the popularization of MRI and vascular imaging,

more and more studies have pointed out that

imaging markers have become important markers of

stroke recurrence.

The development of big data and artificial

intelligence has provided opportunities for the

establishment of data based prediction models. The

machine learning method is used to analyze and

mine the data of stroke patients, extract some typical

features and laws of patients, and establish an

artificial intelligence model to predict, so as to

provide methods and means for early prevention of

stroke.

694

Wu, X. and Wang, G.

Prediction Model of Stroke Based on Few-Shot Learning.

DOI: 10.5220/0012042100003620

In Proceedings of the 4th International Conference on Economic Management and Model Engineering (ICEMME 2022), pages 694-698

ISBN: 978-989-758-636-1

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

2 DATA PROCESSING AND

SAMPLE EXPANSION

As early as 2016, China has formulated data

standards for the registration of patients with various

diseases. The standard document WS-375 specifies

the metadata attributes and data element attributes of

the basic data set of stroke registration reports, so as

to provide them to disease prevention and control

institutions, medical institutions providing relevant

services and relevant health administrative

departments for relevant business data collection,

transmission, storage, etc. Due to the late start of

medical data accumulation in China, the early data

records are few and non-standard, and there is still

no stroke data set of appropriate size. In this case,

machine learning method based on small sample

learning becomes an optional method for building

prediction models.

2.1 Data Sources

The data in this paper mainly comes from two parts:

1. The original data of 300 cases obtained by the

local medical institution from the screening of the

target population in the community has more than

200 effective attributes of the screening data. In the

300 cases, 3 cases have been diagnosed, and others

do not have the characteristics of stroke.

2. The data set of 300 confirmed patients

provided by the local hospital over the years,

including obvious stroke symptoms, and some cases

have died. These registration forms are organized

according to the WS-375 document standard.

Because there are so many attribute fields for

these data, and many fields are missing data, these

data can be used accurately only after they are

cleaned, formatted, and normalized.

2.2 Data Processing

Data processing mainly deals with incomplete

values, incorrect values and attribute types of data to

make the data conform to the format required by the

model. These data are processed using the following

rules:

1. If all data of an attribute is missing, the

attribute will be treated as invalid and deleted.

2. For categorical variables, if they are ordered

categorical variables, the corresponding values will

be assigned directly; for unordered category

variables, use one-hot coding.

3. Some attributes with some missing data need

to be handled as appropriate. If only a few instances

of an attribute have data (less than 10%), and there

are no stroke patients in the instances with data,

delete the attribute; On the contrary, the same kind

of mean value interpolation is used for processing.

4. For out of range or incorrect data, if it is

numerical data, select the value closest to it. For

nominal attributes, select different negative integers

to distinguish.

In addition to the above processing rules, some

attribute data are also standardized and normalized。

2.3 Establish Training Data and Test

Data Set

In the screening data, there are only 3 confirmed

cases. If machine learning algorithm is used, it will

be difficult to learn the typical characteristics of

patients, so that a reasonable prediction model

cannot be built. If the accumulated 300 confirmed

cases are combined into the screening data set, such

simple combination will distort the entire learning

process. Therefore, this paper randomly confuses the

confirmed data with the screening data to establish a

more reasonable data set, which has 400 instances,

30% of which are confirmed cases, so that the

established data set can establish a more reasonable

and accurate prediction model.

After data attribute processing, the available

attributes are reduced from more than 300 to less

than 100, and the data set size is about 400 records,

including more than 130 patient records. See Table 1

for data attributes.

Table 1: Category attribute quantity.

Categor

Attribute quantity

demographic

characteristics

Personal Histor

family histor

use medication history 3

histor

of treatment 20

health check indicators 20

chemical examination

indicators

declaration of health 2

final dia

nosis 2

other dia

nosis 8

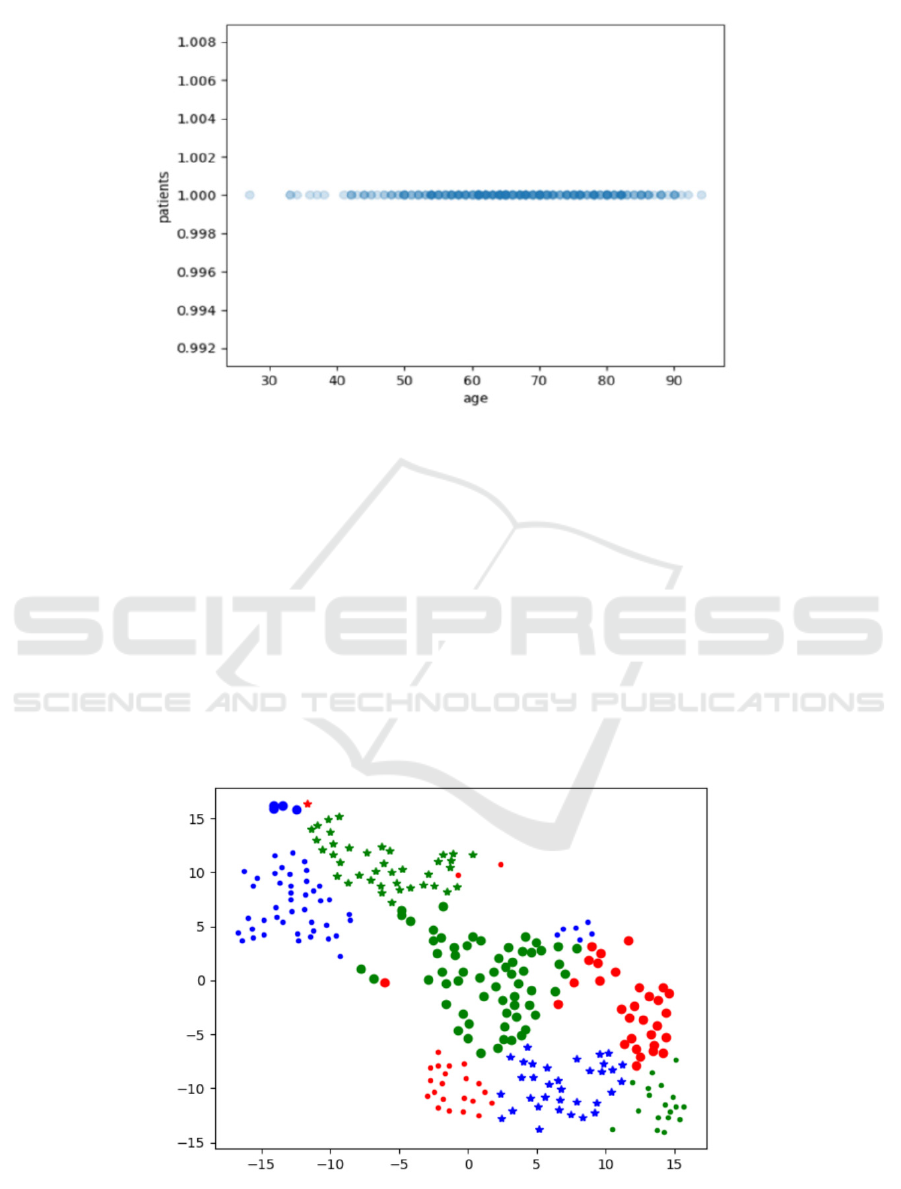

Figure 1 shows the age attribute of confirmed

cases of stroke for the first time. It can be seen

intuitively from Figure 1 that 55-80 years old are the

age group with high incidence of stroke.

Prediction Model of Stroke Based on Few-Shot Learning

695

Figure 1: Age distribution of confirmed cases.

2.4 Classify Confirmed Cases Using

K-Means Algorithm

In order to merge some confirmed case datasets with

screening datasets, representative cases need to be

selected. The laboratory indicators in Table 1 are the

inspection indicators of the confirmed personnel

when they are hospitalized. When screening the

target population, these indicators do not exist.

Therefore, the confirmed population is divided into

several groups by K-means clustering calculation

according to 10 laboratory indicators. Then, one

instance is randomly selected from each group and

put into the screening data set. Finally, it is

combined into a new data set with reasonable

distribution of positive and negative examples,

establishment of prediction model for stroke.

After repeated trials, the family with the highest

classification score is 3, followed by 9. Because of

the consideration of selecting confirmed cases to

participate in modeling, the confirmed patients are

finally divided into 9 categories. From the nine

categories of confirmed cases, 35% of each category

was randomly selected to join the prediction data

set. Classification of confirmed cases is shown in

Figure 2.

Figure 2: Classification of confirmed cases using K-means algorithm.

ICEMME 2022 - The International Conference on Economic Management and Model Engineering

696

3 ESTABLISH PREDICTION

MODEL

The data size of the collated dataset is about 400

instances, and its size is still very small. You can use

the Few-shot learning method to establish a

prediction model. Small sample learning usually

uses PAC algorithm, but when the data

characteristics are obvious, the traditional

integration method can also achieve good results.

Because most attribute types in the current data set

are nominal attributes, it is suitable to use the

integration method to establish a prediction model.

A model with good performance can be obtained by

training the model with sample data and verifying

the model with test data。

The integration method is composed of two

layers of algorithms. First, we need to use a basic

learner of a single machine learning algorithm, and

then integrate this algorithm into an integrated

method. Generate many models by integrating

algorithms, and finally select the model output with

the best performance.

3.1 Decision Tree

Decision tree learning is one of the most widely

used inductive learning algorithms, which is robust

to noisy data. In this paper, decision tree learning is

used as the basic learner of the integration method.

The key of decision tree training lies in the selection

of segmentation points and the depth of the decision

tree. Generally, after the depth of the decision tree

reaches a certain value, an optimal value is obtained,

and then the error will slowly increase when the

depth of the decision tree is increased. However, the

lowest value is not necessarily the best depth of the

integrated algorithm, and the best classification

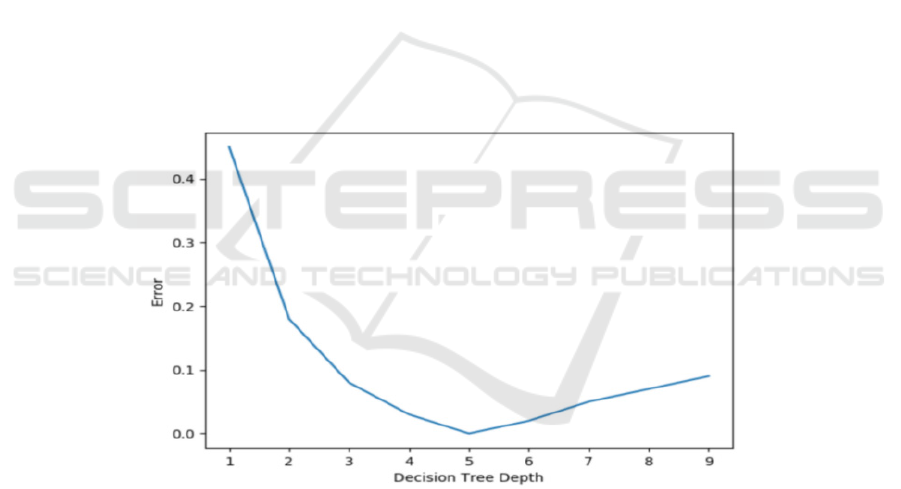

effect can only be obtained by comparison. Figure 3

shows the influence of decision tree depth on error

in the current dataset.

Obviously, when the depth of the tree is 5, the

minimum value is obtained. When integrating

algorithms, we choose the tree depth of 4, 5 and 6

for learning, and finally select the best one.

Figure 3: Influence of decision tree depth on error.

3.2 Integrated Algorithm Bagging

Bagging is a kind of integration algorithm, also

called bootstrap integration algorithm. It starts with

a base learner. There can be many algorithms as base

learners, and decision trees are the most commonly

used learners in Bagging. The advantages of the

integrated algorithm over a single decision tree are

that it can make the prediction curve of a single

decision tree algorithm more smooth and closer to

the real value.

We use 2/3 of the data set as the training set, and

the remaining 1/3 as the test set. When the tree depth

is 4, 5, and 6 respectively, we use Bagging for

integrated learning, cross validation for 4 times, and

finally select the best model as the final result.

Figure 4 shows the ROC curve predicted by stroke

patients with different model numbers when the tree

depth is 6 (when the tree depth is 4, 5 and 6, the

effect is not significantly different, and 6 is taken at

last). In Figure 4, when the number of models>7

(corresponding to the horizontal axis point 0.35), the

difference of identification error is small.

Prediction Model of Stroke Based on Few-Shot Learning

697

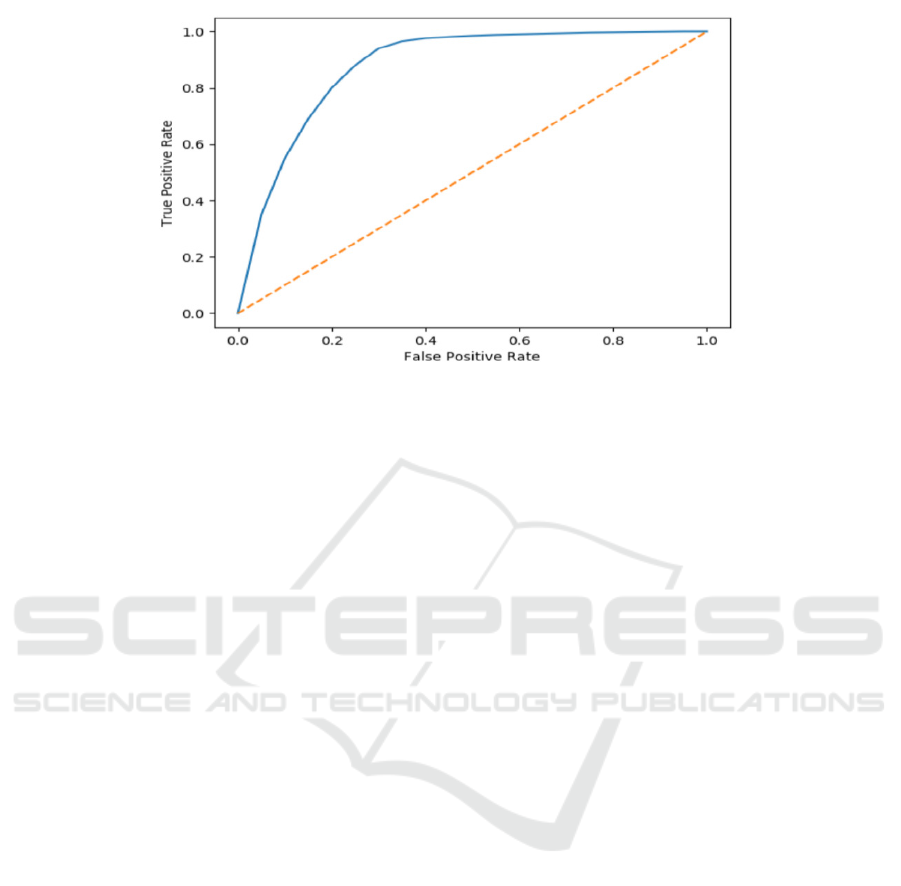

Figure 4: ROC curve.

4 CONCLUSION

From the perspective of the explosive factors of the

new generation of AI technology, the success can be

attributed to three key factors: powerful computing

resources, complex neural networks, and large-scale

data sets. Many practices also prove that sufficient

data is more important to machine learning than the

algorithm itself. Machine prediction is often based

on a large amount of data. How to predict when the

number of samples is insufficient is a direction

worth discussing. When the data in a dataset can

summarize the characteristics of all elements of a

target, a model that meets the requirements can be

obtained through small sample learning. In this

paper, we use the confirmed cases of stroke to

expand the screening data and build an effective

stroke screening dataset. The expansion of the data

set is to first classify the confirmed cases through

the k-means algorithm, and then select the

representative confirmed cases to add to the

screening data set. After the data set is built, the

prediction model can be built through machine

learning algorithm. In this paper, instead of using

various algorithms based on small sample learning,

we use integrated algorithms to build a prediction

model and choose the best model parameters. The

test results show that the model also has a good

effect on the test set.

The significance of this paper lies in how to

effectively use relevant data sets for data expansion

when the data samples are small and the positive and

negative examples of the examples are incomplete.

The data collection work of many public health

systems has been carried out for a short time, and

insufficient data is a common problem at present.

Therefore, it is necessary for the application of

artificial intelligence in the medical and health field

to explore the use of machine learning for prediction

modeling by expanding data sets. Next, we will

study the optimization of prediction models to

explore how to obtain prediction models with better

performance and more dynamic scalability.

REFERENCES

GUO, Zhiheng., LIU, Qingping., LIU, Fang., WANG,

Chengwu. & RUAN, Xuling (2021). Early Prediction

Model of Stroke Based on Machine Learning

Algorithm. Computer & Digital Engineering 2021,

49(11): 2180-2183.

PENG, Chen. Influencing factors and prediction of

prognosis of patients with is chemic stroke based on

machine learning [D]. Nanchang: Nanchang

University: 2021.

WANG, Fang. ZHANG, Xueying. HU, Fengyun & LI,

Fenglian. Ensemble Method Classifies EEG from

Stroke Patients [J]. Computer Engineering and

Applications, 2021, 57(24),276-282

WU, Maolin. The study of prediction model of ischemic

stroke recurrence based on machine learning [D].

Shanxi: Shanxi Medical University:2022.

WU X.ZHU B. FU L. Prevalence, incidience, and

mortality of stroke in the Chinese island populations: a

systematic review[J]. PLoS One,2013,8(11):67-69.

ICEMME 2022 - The International Conference on Economic Management and Model Engineering

698
